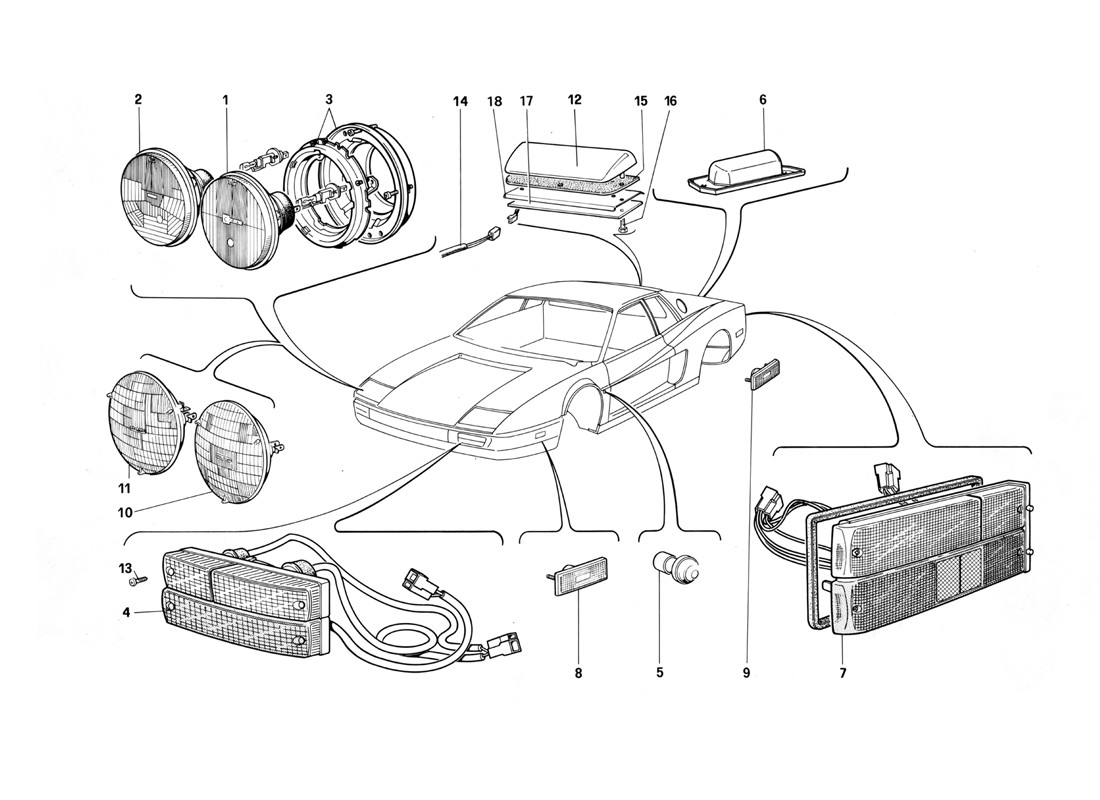

LAMPS

Go to Split View

LAMPS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60907200 *Qty: 2 High beam lamp
Not for F
$206.58
Location: 1 Prev | Next Part: 61005400 *Qty: 2 High beam lamp
For F
$127.22
Location: 2 Prev | Next Part: 61005600 *Qty: 2 Low beam lamp
For F
Unavailable
Location: 2 Prev | Next Part: 60944800 *Qty: 2 Low beam lamp
For RHD and J
$153.64
Location: 2 Prev | Next Part: 60907400 *Qty: 2 Low beam lamp
Not for RHD - F - J
Unavailable
Location: 3 Prev | Next Part: 61646700 *Qty: 1 Ring frame for left low beam lamp $73.83
Location: 3 Prev | Next Part: 61646600 *Qty: 1 Ring frame for right low beam lamp $67.76
Location: 3 Prev | Next Part: 61646400 *Qty: 1 Ring frame for right high beam lamp Unavailable
Location: 3 Prev | Next Part: 61646500 *Qty: 1 Ring frame for left high beam lamp $63.62
Location: 4 Prev | Next Part: 61536200 *Qty: 1 Lens for front left light
RHD
$119.61
Location: 4 Prev | Next Part: 61536000 *Qty: 1 Lens for front left light
LHD
Unavailable
Location: 4 Prev | Next Part: 61536100 *Qty: 1 Lons for front right light
RHD
Unavailable
Location: 4 Prev | Next Part: 61535900 *Qty: 1 Lens for front right light
LHD
Unavailable
Location: 4 Prev | Next Part: 61652300 *Qty: 1 Front right side - direction - flashing
or US
Unavailable
Location: 4 Prev | Next Part: 61536300 *Qty: 1 Lens for front right light
For US
Unavailable
Location: 4 Prev | Next Part: 61816000 *Qty: 1 Front left side - direction - flashing light
For F
Unavailable
Location: 4 Prev | Next Part: 61725900 *Qty: 1 Front left side - direction - flashing light
For LHD - Not for US - D - F
Unavailable
Location: 4 Prev | Next Part: 61643200 *Qty: 1 Front right side - direction - flashing
or RHD and D
Unavailable
Location: 4 Prev | Next Part: 61643300 *Qty: 1 Front left side - direction - flashing
or RHD and D
Unavailable
Location: 4 Prev | Next Part: 61725800 *Qty: 1 Front right side - direction - flashing light
For LHD - Not for US - D - F
Unavailable
Location: 4 Prev | Next Part: 61652400 *Qty: 1 Front left side - direction - flashing
or US
Unavailable
Location: 4 Prev | Next Part: 61815900 *Qty: 1 Front right side - direction - flashing light
for F
$1,068.22
Location: 4 Prev | Next Part: 61536400 *Qty: 1 Lens for front left light
For US
Unavailable
Location: 5 Prev | Next Part: 61646800 *Qty: 2 Side direction light
Not for US
Superseded
Location: 6 Prev | Next Part: 61558800 *Qty: 1 Plate light
For CDN
Superseded
Location: 6 Prev | Next Part: 61646900 *Qty: 2 Plate light
Not for CDN
$39.22
Location: 7 Prev | Next Part: 61536500 *Qty: 1 Lens for rear right light $106.03
Location: 7 Prev | Next Part: 61652800 *Qty: 1 Rear left light
For US and J
Unavailable
Location: 7 Prev | Next Part: 61536600 *Qty: 1 Lens for rear left light $106.03
Location: 7 Prev | Next Part: 61643400 *Qty: 1 Rear right light
Not for US and J
$1,282.81
Location: 7 Prev | Next Part: 61536700 *Qty: 1 Lens for rear right light Unavailable
Location: 7 Prev | Next Part: 61652700 *Qty: 1 Rear right light
For US and J
Unavailable
Location: 7 Prev | Next Part: 61536800 *Qty: 1 Lefts for rear left light Unavailable
Location: 7 Prev | Next Part: 61643500 *Qty: 1 Rear left light
Not for US and J
$1,484.17
Location: 8 Prev | Next Part: 61652500 *Qty: 2 Front side marker
For US
$17.29
Location: 9 Prev | Next Part: 61652600 *Qty: 2 Rear side marker
For US
$108.79
Location: 10 Prev | Next Part: 61610500 *Qty: 2 Headlamp main beams
For US
$45.48
Location: 11 Prev | Next Part: 61610600 *Qty: 2 Headlamp dipped beams
For US
$44.57
Location: 12 Prev | Next Part: 61892900 *Qty: 2 Additional stop lights
For US
$482.57
Location: 13 Prev | Next Part: 131373 *Qty: 12 Screw $17.19
Location: 14 Prev | Next Part: 129319 *Qty: 1 Cable $88.93
Location: 15 Prev | Next Part: 61895400 *Qty: 1 Gasket $23.13
Location: 16 Prev | Next Part: 61565100 *Qty: 2 Screw $2.97
Location: 17 Prev | Next Part: 61542000 *Qty: 1 Insulation $95.56
Location: 18 Prev | Next Part: 61567400 *Qty: 1 Support $41.60

* Quantity shown indicates the number of pieces used in the diagram.
