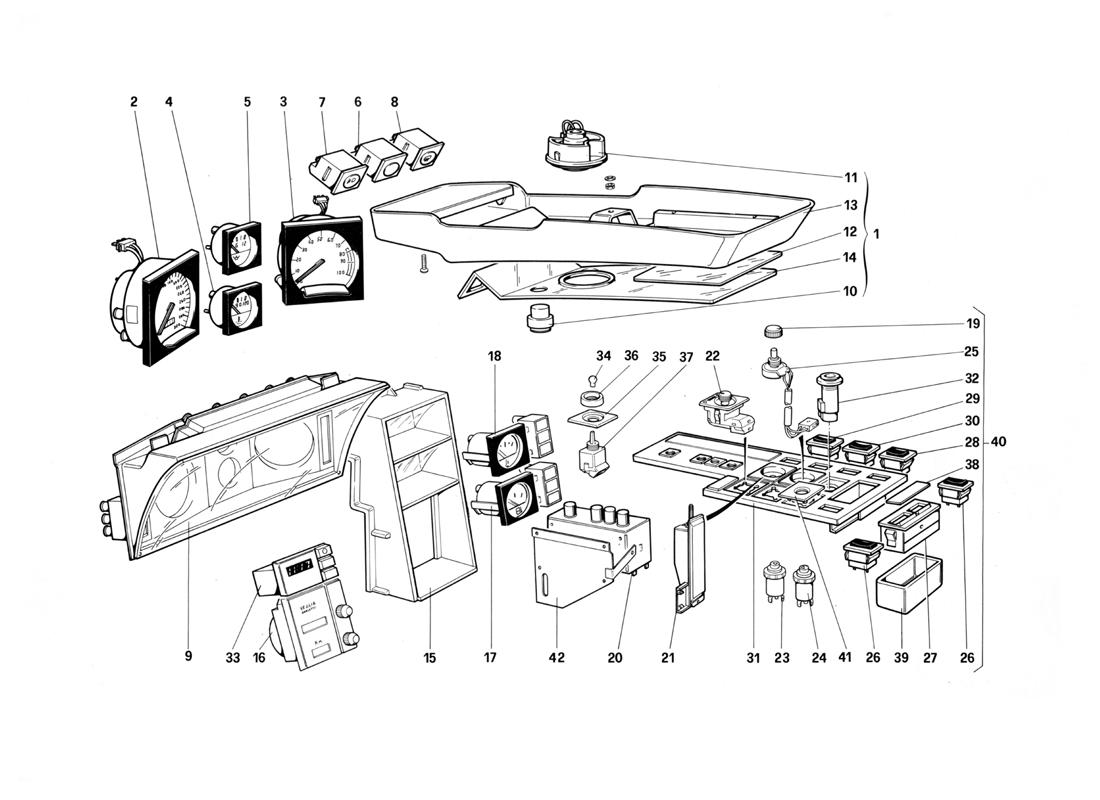

INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR U.S. VERSION)

Go to Split View

INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR U.S. VERSION)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61526600 *Qty: 1 Upper console, complete
Until car 67077
$710.79
Location: 1 Prev | Next Part: 61548300 *Qty: 1 Upper console, complete
Starting from car 67079
Superseded
Location: 1 Prev | Next Part: 61548300 *Qty: 1 Upper console, complete Superseded
Location: 2 Prev | Next Part: 119729 *Qty: 1 Speedometer
Not for C7
Unavailable
Location: 2 Prev | Next Part: 119734 *Qty: 1 Electronic mileage odometer $587.22
Location: 2 Prev | Next Part: 132783 *Qty: 1 Speedometer
For C7
$615.24
Location: 3 Prev | Next Part: 119728 *Qty: 1 Rev counter $284.85
Location: 3 Prev | Next Part: 131462 *Qty: 1 Rev counter $573.19
Location: 4 Prev | Next Part: 119817 *Qty: 1 Water temperature gauge
For RHD and US
Superseded
Location: 4 Prev | Next Part: 119730 *Qty: 1 Water temperature gauge LHD
Not for US
$118.14
Location: 5 Prev | Next Part: 119737 *Qty: 1 Oil pressure gauge $224.38
Location: 5 Prev | Next Part: 119737 *Qty: 1 Oil pressure gauge
For RHD and US - Not for J
$224.38
Location: 5 Prev | Next Part: 119732 *Qty: 1 Oil pressure gauge LHD
Not for US
$106.77
Location: 6 Prev | Next Part: 120644 *Qty: 1 Dummy switch $15.10
Location: 6 Prev | Next Part: 121609 *Qty: 1 SA Rear fog light switch
Not for US - SA
Unavailable
Location: 7 Prev | Next Part: 121607 *Qty: 1 Fog light switch $389.82
Location: 8 Prev | Next Part: 121608 *Qty: 1 Heated rear window switch $148.15
Location: 9 Prev | Next Part: 123361 *Qty: 1 Central panel assembly
For LHD - Not for U6 - SA J - CDN - ZA - C7
$1,823.82
Location: 9 Prev | Next Part: 123649 *Qty: 1 Central panel assembly
For CDN
$2,151.28
Location: 9 Prev | Next Part: 129700 *Qty: 1 Central panel assembly
For J
Unavailable
Location: 9 Prev | Next Part: 123651 *Qty: 1 Central panel assembly
For RHD
$1,533.75
Location: 9 Prev | Next Part: 123653 *Qty: 1 Central panel assembly
For ZA
Unavailable
Location: 9 Prev | Next Part: 123647 *Qty: 1 Central panel assembly
For U6
$1,886.02
Location: 9 Prev | Next Part: 131460 *Qty: 1 Central panel with instruments $1,553.00
Location: 9 Prev | Next Part: 132781 *Qty: 1 Central panel assembly
For C7
$1,636.46
Location: 9 Prev | Next Part: 123361 *Qty: 1 Central panel assembly
For SA
$1,823.82
Location: 10 Prev | Next Part: 61526300 *Qty: 2 Push button spot $102.39
Location: 11 Prev | Next Part: 61526400 *Qty: 1 Spot for passenger compartment light $38.60
Location: 12 Prev | Next Part: 61526500 *Qty: 1 Opal cover on roof console $7.57
Location: 13 Prev | Next Part: 61548400 *Qty: 1 Upper console $102.55
Location: 13 Prev | Next Part: 61548400 *Qty: 1 Upper console
Starting from car No 67079
$102.55
Location: 13 Prev | Next Part: 61565200 *Qty: 1 Upper console
Until car No 67077
$150.76
Location: 14 Prev | Next Part: 61526700 *Qty: 1 Transparent cover Unavailable
Location: 15 Prev | Next Part: 131461 *Qty: 1 Console with instruments $1,458.36
Location: 15 Prev | Next Part: 129554 *Qty: 1 Console, complete
For J
$18,670.26
Location: 15 Prev | Next Part: 123648 *Qty: 1 Console, complete
For U6
$1,931.63
Location: 15 Prev | Next Part: 123650 *Qty: 1 Console, complete
For CDN
$2,300.87
Location: 15 Prev | Next Part: 132782 *Qty: 1 Console, complete
For C7
$1,730.94
Location: 15 Prev | Next Part: 123652 *Qty: 1 Console, complete
For GB
$1,588.06
Location: 15 Prev | Next Part: 123654 *Qty: 1 Console, complete
For ZA
$1,588.06
Location: 15 Prev | Next Part: 127475 *Qty: 1 Console, complete
For SA
Unavailable
Location: 15 Prev | Next Part: 123645 *Qty: 1 Console, complete for LHD
Not for GB - US - SA - ZA - C7 - J
$1,355.83
Location: 16 Prev | Next Part: 132785 *Qty: 1 Total odometer (Kms)
For C7
$443.51
Location: 16 Prev | Next Part: 119756 *Qty: 1 Total odometer (Miles) Unavailable
Location: 16 Prev | Next Part: 119752 *Qty: 1 Total odometer (Kms)
Not for C7
Unavailable
Location: 17 Prev | Next Part: 119819 *Qty: 1 Fuel level gauge
For US - COM 86 - J - C7
$223.57
Location: 17 Prev | Next Part: 119819 *Qty: 1 Fuel level gauge $223.57
Location: 17 Prev | Next Part: 119733 *Qty: 1 Fuel level gauge
Not for US CDN 86 - J - C7
$136.92
Location: 18 Prev | Next Part: 119731 *Qty: 1 Oil temperature gauge LHD
Not for US -CON, after exhaustion use PN 130836
$118.49
Location: 18 Prev | Next Part: 119818 *Qty: 1 Oil temperature gauge
For RHD-US-CDN, after exhaustion use PN 130837
$176.17
Location: 19 Prev | Next Part: 124079 *Qty: 2 Knob Superseded
Location: 20 Prev | Next Part: 124075 *Qty: 1 Air conditioner push button unit Unavailable
Location: 21 Prev | Next Part: 131473 *Qty: 1 Air conditioner control button unit Superseded
Location: 21 Prev | Next Part: 124078 *Qty: 1 Air conditioner control button unit
Not for B1
Unavailable
Location: 21 Prev | Next Part: 131473 *Qty: 1 Air conditioner control button unit
ForB1
Superseded
Location: 22 Prev | Next Part: 61557900 *Qty: 1 External rear view mirrors switch
Starting from car 67079
Unavailable
Location: 23 Prev | Next Part: 124086 *Qty: 1 Switch for vehicle hazard lights Superseded
Location: 24 Prev | Next Part: 124087 *Qty: 1 Parking lights switch Unavailable
Location: 25 Prev | Next Part: 61078700 *Qty: 1 Potentiometer for A.C. temperature $326.12
Location: 25 Prev | Next Part: 61078700 *Qty: 1 Potentiometer for air conditioner $326.12
Location: 26 Prev | Next Part: 124085 *Qty: 2 Switch for feet air $181.45
Location: 27 Prev | Next Part: 124082 *Qty: 1 Adjuster for feet air $619.45
Location: 28 Prev | Next Part: 124077 *Qty: 1 Push button opening glove box Unavailable
Location: 29 Prev | Next Part: 61319200 *Qty: 1 Switch for right window control
Until car 67077
Unavailable
Location: 29 Prev | Next Part: 131472 *Qty: 1 Switch for RH window control
Starting from car 67079
$81.43
Location: 29 Prev | Next Part: 131472 *Qty: 1 Switch for R.H. window control $81.43
Location: 30 Prev | Next Part: 61319100 *Qty: 1 Switch for left window control
Until car 67077
Unavailable
Location: 30 Prev | Next Part: 131471 *Qty: 1 Switch for LH window control
Starting from car 67079
Unavailable
Location: 31 Prev | Next Part: 124074 *Qty: 1 Control housing panel
Until car 67077 - Not for S6
Unavailable
Location: 31 Prev | Next Part: 131470 *Qty: 1 Control housing panel
Starting from car 67079
Superseded
Location: 31 Prev | Next Part: 61559800 *Qty: 1 Control housing panel
For S6
Unavailable
Location: 31 Prev | Next Part: 131470 *Qty: 1 Controls housing panel Superseded
Location: 32 Prev | Next Part: 61503900 *Qty: 1 Cigarette lighter $272.93
Location: 33 Prev | Next Part: 123646 *Qty: 1 Clock Unavailable
Location: 33 Prev | Next Part: 131466 *Qty: 1 Clock $370.38
Location: 34 Prev | Next Part: 124081 *Qty: 2 Joy-stick knob
Until car No 67077
$4.75
Location: 35 Prev | Next Part: 124088 *Qty: 2 Frame $23.86
Location: 35 Prev | Next Part: 124080 *Qty: 2 Frame
Until car No 67077
$10.54
Location: 36 Prev | Next Part: 60730900 *Qty: 2 Ring nut
Until car No 67077
$10.72
Location: 37 Prev | Next Part: 61526900 *Qty: 1 Joy-stick for outside mirror
Until car No 67077 - For S6 q=2
Superseded
Location: 37 Prev | Next Part: 124083 *Qty: 1 Box $26.50
Location: 38 Prev | Next Part: 124084 *Qty: 1 Display filter Unavailable
Location: 39 Prev | Next Part: 124083 *Qty: 1 Housing $26.50
Location: 40 Prev | Next Part: 131468 *Qty: 1 Panel, complete
Starting from car no 67079
$803.98
Location: 40 Prev | Next Part: 61527100 *Qty: 1 Panel, complete
Until car No 67077 -Not for S6
Unavailable
Location: 40 Prev | Next Part: 61560000 *Qty: 1 Panel, complete
For S6
$541.72
Location: 41 Prev | Next Part: 124088 *Qty: 2 Frame $23.86
Location: 42 Prev | Next Part: 124076 *Qty: 1 Support $23.86

* Quantity shown indicates the number of pieces used in the diagram.
