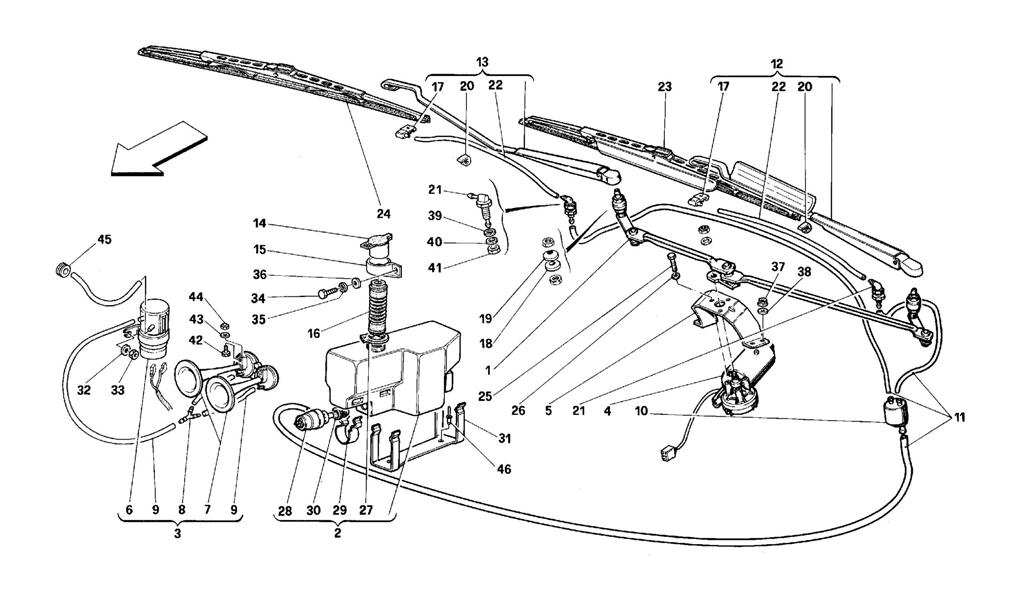

WINDSHIELD WIPER, WASHER AND HORNS

Go to Split View

WINDSHIELD WIPER, WASHER AND HORNS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63467900 *Qty: 1 Windshield wiper leverage -Not for RHD $404.73
Location: 1 Prev | Next Part: 63468000 *Qty: 1 Windshield wiper leverage -Valid for RHD $493.73
Location: 2 Prev | Next Part: 63112200 *Qty: 1 Water reservoir, complete $1,587.01
Location: 3 Prev | Next Part: 61578100 *Qty: 1 Horn, complete $162.23
Location: 4 Prev | Next Part: 61528100 *Qty: 1 Wiper motor $913.43
Location: 5 Prev | Next Part: 63080900 *Qty: 1 Plate $51.97
Location: 6 Prev | Next Part: 225757 *Qty: 1 Electro-compressor $266.50
Location: 7 Prev | Next Part: 189428 *Qty: 1 Electropneumatic horn -Valid after stock exhaustion of 60665500 $24.15
Location: 8 Prev | Next Part: 60741100 *Qty: 1 3-way union $0.90
Location: 9 Prev | Next Part: 63243200 *Qty: 1 Air duct $1.05
Location: 10 Prev | Next Part: 61648100 *Qty: 1 Non return valve $33.58
Location: 11 Prev | Next Part: 61648200 *Qty: 1 Pipe -Not for RHD $21.91
Location: 11 Prev | Next Part: 63991900 *Qty: 1 Pipe -Valid for RHD $31.97
Location: 12 Prev | Next Part: 61725600 *Qty: 1 Wiper arm driver seat side complete -Valid for RHD $76.77
Location: 12 Prev | Next Part: 62461600 *Qty: 1 Wiper arm driver seat side complete -Not for RHD $101.60
Location: 13 Prev | Next Part: 61647600 *Qty: 1 Wiper arm passenger side complete -Not for RHD $85.84
Location: 13 Prev | Next Part: 61725700 *Qty: 1 Wiper arm passenger side complete -Valid for RHD $80.43
Location: 14 Prev | Next Part: 63118500 *Qty: 1 Plug with filter Call
Location: 15 Prev | Next Part: 63449500 *Qty: 1 Tank union $133.99
Location: 16 Prev | Next Part: 63095600 *Qty: 1 Tank pipe Call
Location: 17 Prev | Next Part: 61537500 *Qty: 2 Windscreen washer jet -Not for RHD $30.28
Location: 17 Prev | Next Part: 61541500 *Qty: 2 Windscreen washer jet -Valid for RHD $29.21
Location: 18 Prev | Next Part: 61537600 *Qty: 2 Cap $0.90
Location: 19 Prev | Next Part: 61537700 *Qty: 2 Spacer $0.90
Location: 20 Prev | Next Part: 61559400 *Qty: 5 Clip $2.71
Location: 21 Prev | Next Part: 61648000 *Qty: 2 Union -Valid till stock exhaustion $8.68
Location: 22 Prev | Next Part: 62488800 *Qty: 2 Pipe from union to nozzle Call
Location: 23 Prev | Next Part: 60703800 *Qty: 1 Wiper brushes - driver side -Valid for RHD Call
Location: 23 Prev | Next Part: 65661700 *Qty: 1 Wiper brushes - driver side -Not for RHD $63.40
Location: 24 Prev | Next Part: 60703800 *Qty: 1 Wiper brushes - passenger side -Valid for RHD Call
Location: 24 Prev | Next Part: 67546600 *Qty: 1 Wiper brushes - passenger side -Not for RHD $683.12
Location: 25 Prev | Next Part: 10902211 *Qty: 3 Screw Call
Location: 26 Prev | Next Part: 127494 *Qty: 3 Washer $0.90
Location: 27 Prev | Next Part: 63453700 *Qty: 1 Plug $2.36
Location: 28 Prev | Next Part: 61535400 *Qty: 1 Pump for water reservoir $192.01
Location: 29 Prev | Next Part: 63290800 *Qty: 1 Fix. pump spring $44.50
Location: 30 Prev | Next Part: 63290900 *Qty: 1 Rubber bush $0.90
Location: 31 Prev | Next Part: 60630000 *Qty: 1 Water reservoir retainer spring $22.54
Location: 32 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 33 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 34 Prev | Next Part: 10902324 *Qty: 2 Screw Superseded
Location: 35 Prev | Next Part: 10615474 *Qty: 2 Washer $0.90
Location: 36 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 37 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 38 Prev | Next Part: 12643724 *Qty: 4 Washer Superseded
Location: 39 Prev | Next Part: 64291000 *Qty: 2 Seal ring $1.78
Location: 40 Prev | Next Part: 64291100 *Qty: 2 Washer $5.85
Location: 41 Prev | Next Part: 64291200 *Qty: 2 Nut $1.21
Location: 42 Prev | Next Part: 10902424 *Qty: 2 Screw $0.90
Location: 43 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 44 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 45 Prev | Next Part: 10396380 *Qty: 1 Pipe grommet ring $0.90
Location: 46 Prev | Next Part: 60310703 *Qty: 3 Rivet $0.90

* Quantity shown indicates the number of pieces used in the diagram.
