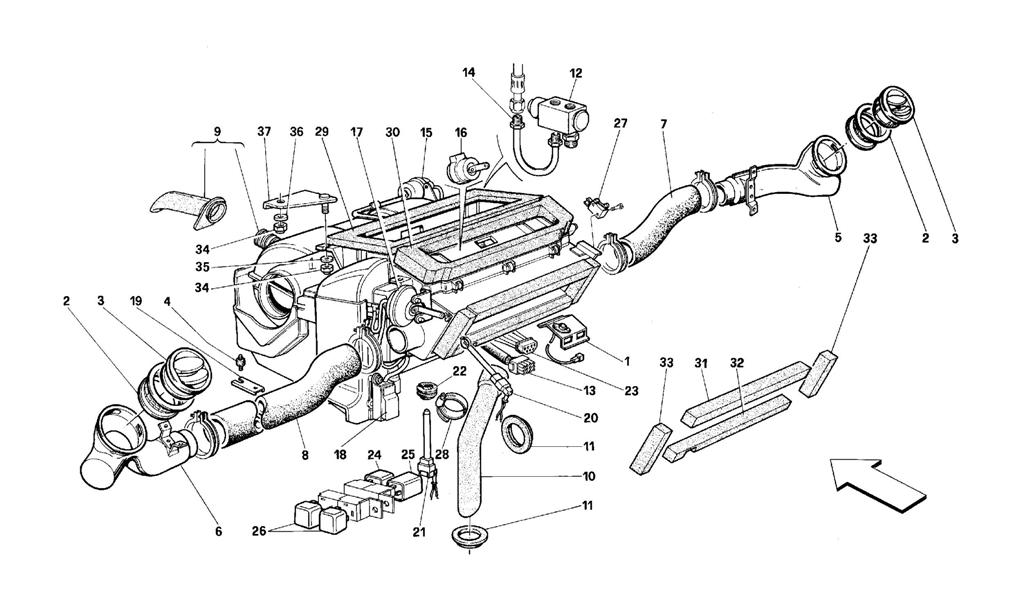

AIR-CONDITIONING UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 63465600 *Qty: 1 Air conditioner assembly -Valid for RHD $6,633.14
Location: - Prev | Next Part: 63100400 *Qty: 1 Air conditioner assembly -Not for RHD Call
Location: 1 Prev | Next Part: 127014 *Qty: 1 Power transistor $112.86
Location: 2 Prev | Next Part: 61528500 *Qty: 2 Air vent frame ring $5.21
Location: 3 Prev | Next Part: 61528600 *Qty: 2 Air vent $17.95
Location: 4 Prev | Next Part: 102947 *Qty: 2 Anti-shaker support $15.94
Location: 5 Prev | Next Part: 63080200 *Qty: 1 R.H. air duct -Not for RHD $72.44
Location: 5 Prev | Next Part: 63108300 *Qty: 1 R.H. air duct -Valid for RHD $66.00
Location: 6 Prev | Next Part: 63080300 *Qty: 1 L.H. air duct -Not for RHD $70.40
Location: 6 Prev | Next Part: 63109000 *Qty: 1 L.H. air duct -Valid for RHD $66.00
Location: 7 Prev | Next Part: 61559100 *Qty: 1 R.H. union from heater air vent $174.03
Location: 8 Prev | Next Part: 61559200 *Qty: 1 L.H. union from heater air vent $174.03
Location: 9 Prev | Next Part: 154290 *Qty: 1 Front condensate drain pipe $26.47
Location: 10 Prev | Next Part: 61529300 *Qty: 1 Condensate drain pipe $25.38
Location: 11 Prev | Next Part: 61528700 *Qty: 2 Gasket $1.31
Location: 12 Prev | Next Part: 154276 *Qty: 1 Expansion valve Call
Location: 13 Prev | Next Part: 154277 *Qty: 1 Cable set $146.48
Location: 14 Prev | Next Part: 154278 *Qty: 1 Coupling tube -Not for RHD $31.97
Location: 15 Prev | Next Part: 154279 *Qty: 1 Lid actuator $20.17
Location: 16 Prev | Next Part: 61268000 *Qty: 1 Inner actuator $17.50
Location: 17 Prev | Next Part: 60930700 *Qty: 1 Defroster actuator $32.77
Location: 18 Prev | Next Part: 154280 *Qty: 1 Air actuator to R.H. foots $48.06
Location: 18 Prev | Next Part: 154281 *Qty: 1 Air actuator to L.H. foots $48.06
Location: 19 Prev | Next Part: 154289 *Qty: 2 Bracket for air conditioner fixing $3.80
Location: 20 Prev | Next Part: 154282 *Qty: 1 Air temperature sensor $27.40
Location: 21 Prev | Next Part: 154283 *Qty: 1 Cooler temperature sensor $161.52
Location: 22 Prev | Next Part: 154284 *Qty: 1 Gasket $0.90
Location: 23 Prev | Next Part: 154285 *Qty: 1 Vacuum connector $47.55
Location: 24 Prev | Next Part: 154287 *Qty: 1 Control relay $16.67
Location: 25 Prev | Next Part: 154286 *Qty: 1 Timer $103.62
Location: 26 Prev | Next Part: 154288 *Qty: 2 Control switch relay $16.67
Location: 27 Prev | Next Part: 154295 *Qty: 1 Light micro-switch $31.82
Location: 28 Prev | Next Part: 12180090 *Qty: 1 Clamp $0.90
Location: 29 Prev | Next Part: 144591 *Qty: 1 Upper gasket $7.89
Location: 30 Prev | Next Part: 144596 *Qty: 1 Gasket $6.16
Location: 31 Prev | Next Part: 144592 *Qty: 1 Gasket $1.14
Location: 32 Prev | Next Part: 144593 *Qty: 1 Gasket $3.62
Location: 33 Prev | Next Part: 144594 *Qty: 2 Gasket $0.90
Location: 34 Prev | Next Part: 102948 *Qty: 8 Nut $0.90
Location: 35 Prev | Next Part: 12640624 *Qty: 6 Washer $0.90
Location: 36 Prev | Next Part: 12646201 *Qty: 2 Washer $0.90
Location: 37 Prev | Next Part: 63418600 *Qty: 1 L.H. support $21.28
Location: 37 Prev | Next Part: 63418700 *Qty: 1 R.H. support $19.39

* Quantity shown indicates the number of pieces used in the diagram.
