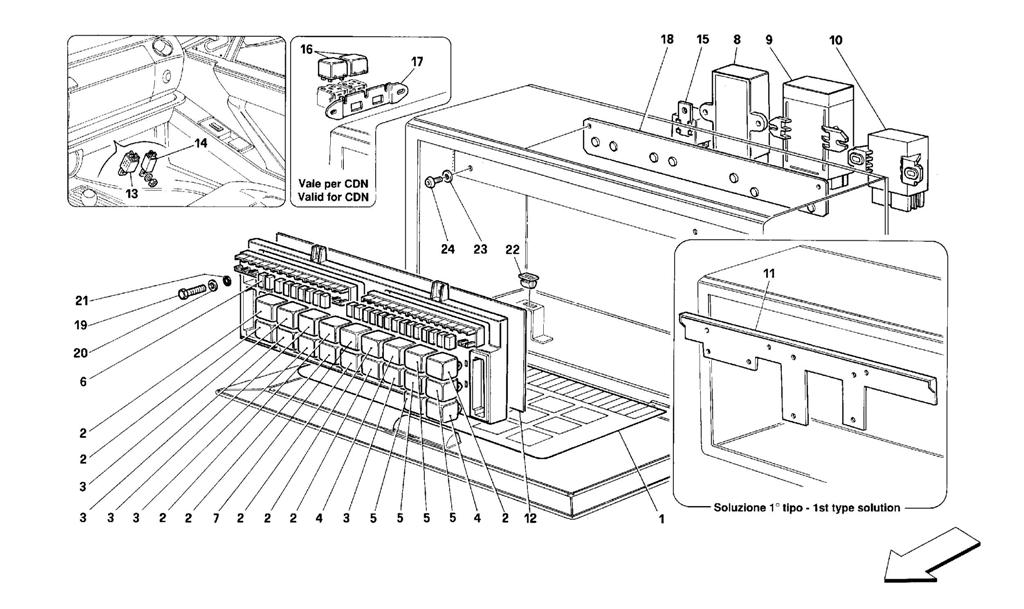

VALVES AND RELAYS

Go to Split View

VALVES AND RELAYS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 151101 *Qty: 1 Control unit, assy -Not for CH Call
Location: - Prev | Next Part: 153711 *Qty: 1 Control unit, assy -Valid for CH Call
Location: 1 Prev | Next Part: 151960 *Qty: 1 Indication sheet $8.51
Location: 2 Prev | Next Part: 40130007 *Qty: 8 Relay $31.15
Location: 3 Prev | Next Part: 40130106 *Qty: 5 Relay $23.47
Location: 4 Prev | Next Part: 40283905 *Qty: 2 Relay $20.88
Location: 5 Prev | Next Part: 175318 *Qty: 4 Relay $30.42
Location: 6 Prev | Next Part: 126031 *Qty: 3 25A Fuse $0.90
Location: 6 Prev | Next Part: 125240 *Qty: 3 7,5A Fuse $0.90
Location: 6 Prev | Next Part: 125241 *Qty: 7 10A Fuse $0.90
Location: 6 Prev | Next Part: 125242 *Qty: 7 15A Fuse $0.90
Location: 6 Prev | Next Part: 125243 *Qty: 4 20A Fuse $0.90
Location: 7 Prev | Next Part: 40130007 *Qty: 1 Relay -Valid for CH $31.15
Location: 8 Prev | Next Part: 150039 *Qty: 1 Actuator door control unit $181.92
Location: 9 Prev | Next Part: 147177 *Qty: 1 Window regulator control unit Call
Location: 10 Prev | Next Part: 61079400 *Qty: 1 A.C. control unit Call
Location: 11 Prev | Next Part: 149932 *Qty: 1 Control unit fixing plate -1st type version $16.88
Location: 12 Prev | Next Part: 116055 *Qty: 1 Rear cover Call
Location: 13 Prev | Next Part: 137667 *Qty: 1 Buzzer -Not for CDN, SA, J $82.43
Location: 13 Prev | Next Part: 61830700 *Qty: 1 Buzzer -Valid for CDN, SA, J $72.47
Location: 14 Prev | Next Part: 61048000 *Qty: 1 Intermittence for direction andhazard $60.20
Location: 15 Prev | Next Part: 61827900 *Qty: 1 Wiper intermittence $43.59
Location: 16 Prev | Next Part: 40130106 *Qty: 2 Relay -Valid for CDN $23.47
Location: 17 Prev | Next Part: 137669 *Qty: 1 Bracket -Valid for CDN $6.71
Location: 18 Prev | Next Part: 63677300 *Qty: 1 Control unit bracket $26.33
Location: 19 Prev | Next Part: 13272472 *Qty: 2 Screw $0.90
Location: 20 Prev | Next Part: 10615279 *Qty: 2 Washer Call
Location: 21 Prev | Next Part: 12642878 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 116857 *Qty: 2 Spring Call
Location: 23 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 14778818 *Qty: 2 Screw Call

* Quantity shown indicates the number of pieces used in the diagram.
