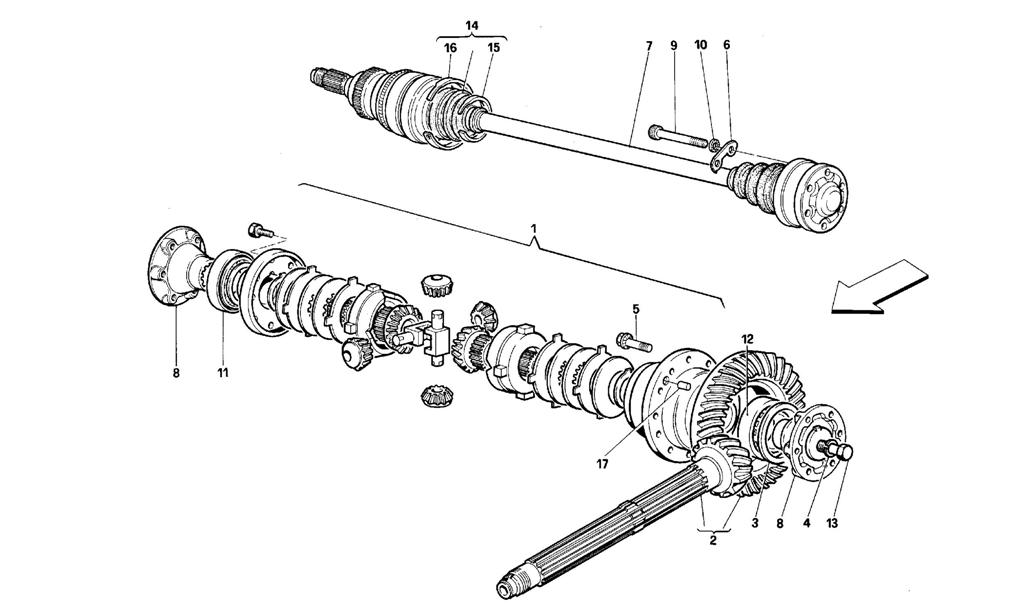

DIFFERENTIAL AND AXLE SHAFTS

Go to Split View

DIFFERENTIAL AND AXLE SHAFTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155099R *Qty: 1 Differential, complete $4,275.00
Location: 2 Prev | Next Part: 168969 *Qty: 1 Crown pignon ratio -Fitted from gear box Nr. 1513 -Required screw with mm 1 thread (Nr. 153710 $13,138.77
Location: 3 Prev | Next Part: 132930 *Qty: 1 Ditto thickness mm. 2,90 $63.17
Location: 3 Prev | Next Part: 132931 *Qty: 1 Ditto thickness mm. 2,95 $64.27
Location: 3 Prev | Next Part: 103422 *Qty: 1 Ditto thickness mm. 2,40 $63.17
Location: 3 Prev | Next Part: 103423 *Qty: 1 Ditto thickness mm. 2,60 Call
Location: 3 Prev | Next Part: 103424 *Qty: 1 Ditto thickness mm. 2,80 $63.17
Location: 3 Prev | Next Part: 103425 *Qty: 1 Ditto thickness mm. 3,00 $63.17
Location: 3 Prev | Next Part: 103426 *Qty: 1 Ditto thickness mm. 3,20 $134.61
Location: 3 Prev | Next Part: 132923 *Qty: 1 Ditto thickness mm. 2,45 $63.17
Location: 3 Prev | Next Part: 132924 *Qty: 1 Ditto thickness mm. 2,50 $64.27
Location: 3 Prev | Next Part: 132925 *Qty: 1 Ditto thickness mm. 2,55 $63.17
Location: 3 Prev | Next Part: 132926 *Qty: 1 Ditto thickness mm. 2,65 $64.27
Location: 3 Prev | Next Part: 132927 *Qty: 1 Ditto thickness mm. 2,70 $64.27
Location: 3 Prev | Next Part: 132928 *Qty: 1 Ditto thickness mm. 2,75 $63.17
Location: 3 Prev | Next Part: 132929 *Qty: 1 Ditto thickness mm. 2,85 $108.34
Location: 4 Prev | Next Part: 153594 *Qty: 2 Ring $2.54
Location: 5 Prev | Next Part: 171275 *Qty: 12 Screw: (mm 1 thread) -For crown pignon ratio Nr. 159069 $25.26
Location: 5 Prev | Next Part: 155750 *Qty: 12 Screw: (mm 1,25 thread) -For crown pignon ratio Nr. 110016 -Replaced screw Nr. 103875 $21.51
Location: 6 Prev | Next Part: 149415 *Qty: 6 Plate $2.15
Location: 7 Prev | Next Part: 165070 *Qty: 2 Axle shaft assy $1,203.19
Location: 8 Prev | Next Part: 139898 *Qty: 2 Axle shaft securing flange $229.20
Location: 9 Prev | Next Part: 181910 *Qty: 12 Screw Superseded
Location: 10 Prev | Next Part: 160092 *Qty: 12 Washer $0.90
Location: 11 Prev | Next Part: 125390 *Qty: 1 Bearing for differential support for R.H. cover $185.17
Location: 12 Prev | Next Part: 101634 *Qty: 1 Bearing for differential support for L.H. cover $176.22
Location: 13 Prev | Next Part: 153593 *Qty: 2 Screw $4.42
Location: 14 Prev | Next Part: 70000867 *Qty: 2 Protection replacement set -Gearbox side Superseded
Location: 14 Prev | Next Part: 70000782 *Qty: 2 Protection replacement set -Wheel side Call
Location: 15 Prev | Next Part: 154213 *Qty: 4 Little clamp $4.81
Location: 16 Prev | Next Part: 154214 *Qty: 4 Big clamp $2.44
Location: 17 Prev | Next Part: 13916370 *Qty: 2 Parallell pin: valid for crown pignon ratio Nr. 159069 and differential Nr. 155099 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
