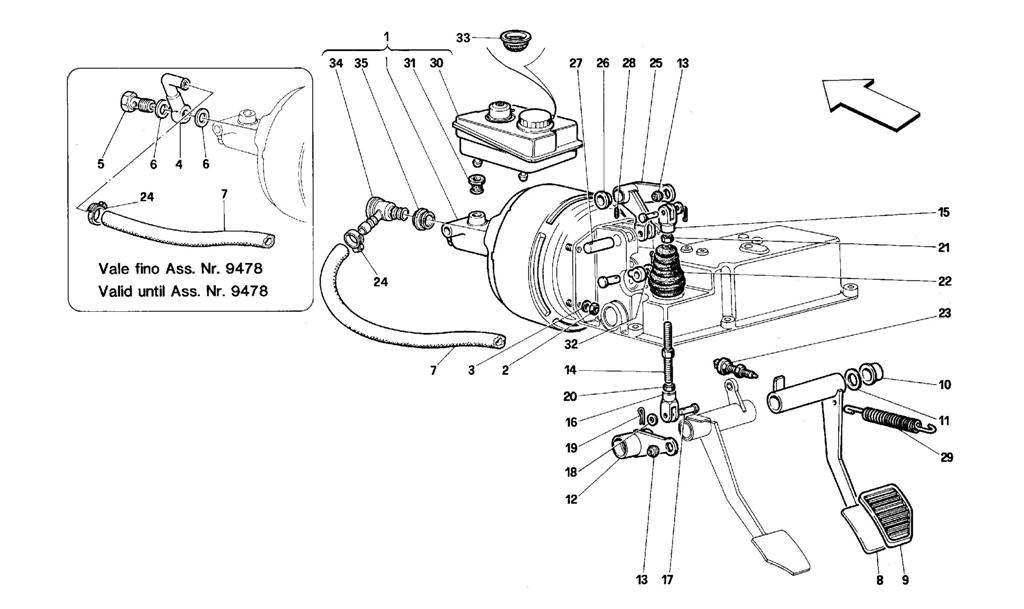

BRAKE HYDRAULIC SYSTEM -NOT FOR RHD

Go to Split View

BRAKE HYDRAULIC SYSTEM -NOT FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 151471 *Qty: 1 Brake booster compl. -Valid from car Ass. Nr. 9479 $3,637.89
Location: 2 Prev | Next Part: 101139 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 12601374 *Qty: 4 Washer $0.90
Location: 4 Prev | Next Part: 151849 *Qty: 1 Union -Valid till car Ass. Nr. 9478 $59.97
Location: 5 Prev | Next Part: 151846 *Qty: 1 Union -Valid till car Ass. Nr. 9478 $48.45
Location: 6 Prev | Next Part: 151911 *Qty: 2 Gasket -Valid till car Ass. Nr. 9478 $3.25
Location: 7 Prev | Next Part: 151477 *Qty: 1 Rubber hose -Valid from car Ass. Nr. 9479 $178.76
Location: 7 Prev | Next Part: 119361 *Qty: 1 Rubber hose -Valid till car Ass. Nr. 9478 $178.64
Location: 8 Prev | Next Part: 121232 *Qty: 1 Brake pedal $98.28
Location: 9 Prev | Next Part: 106950 *Qty: 1 Pedal protection $31.47
Location: 10 Prev | Next Part: 124686 *Qty: 1 Bush $6.59
Location: 11 Prev | Next Part: 112127 *Qty: 0 Shim 0,9 mm. $0.90
Location: 11 Prev | Next Part: 112128 *Qty: 1 Shim 1,0 mm. $0.90
Location: 11 Prev | Next Part: 112129 *Qty: 0 Shim 1,1 mm. $0.90
Location: 11 Prev | Next Part: 112130 *Qty: 0 Shim 1,2 mm. $0.97
Location: 11 Prev | Next Part: 112131 *Qty: 0 Shim 1,3 mm. $0.90
Location: 12 Prev | Next Part: 121217 *Qty: 1 Brake relay lever $66.79
Location: 13 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 14 Prev | Next Part: 148822 *Qty: 1 Tie rod $20.15
Location: 15 Prev | Next Part: 104910 *Qty: 1 Fork, R.H. thread $11.18
Location: 16 Prev | Next Part: 104911 *Qty: 1 Fork, L.H. thread $27.37
Location: 17 Prev | Next Part: 10033414 *Qty: 3 Pin $11.20
Location: 18 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 19 Prev | Next Part: 10796440 *Qty: 3 Split pin $0.90
Location: 20 Prev | Next Part: 11690911 *Qty: 1 Nut, L.H. thread $4.32
Location: 21 Prev | Next Part: 10788711 *Qty: 1 Nut, R.H. thread $1.52
Location: 22 Prev | Next Part: 112157 *Qty: 1 Bellows $13.51
Location: 23 Prev | Next Part: 133555 *Qty: 1 Stop light switch $111.55
Location: 24 Prev | Next Part: 13000390 *Qty: 1 Clamp $0.97
Location: 25 Prev | Next Part: 148788 *Qty: 1 Brake booster control lever $173.34
Location: 26 Prev | Next Part: 124586 *Qty: 2 Bush $5.40
Location: 27 Prev | Next Part: 124714 *Qty: 1 Relay lever supporting pin $138.43
Location: 28 Prev | Next Part: 13736911 *Qty: 1 Screw $0.90
Location: 29 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.15
Location: 30 Prev | Next Part: 133579 *Qty: 1 Reservoir Call
Location: 31 Prev | Next Part: 175189 *Qty: 2 Seal ring $24.73
Location: 32 Prev | Next Part: 10730514 *Qty: 1 Washer $1.01
Location: 33 Prev | Next Part: 120735 *Qty: 1 Filter $0.93
Location: 34 Prev | Next Part: 144552 *Qty: 1 Union -Valid from car Ass. Nr. 9479 $16.88
Location: 35 Prev | Next Part: 151475 *Qty: 1 Cable grommet -Valid from car Ass. Nr. 9479 $13.05

* Quantity shown indicates the number of pieces used in the diagram.
