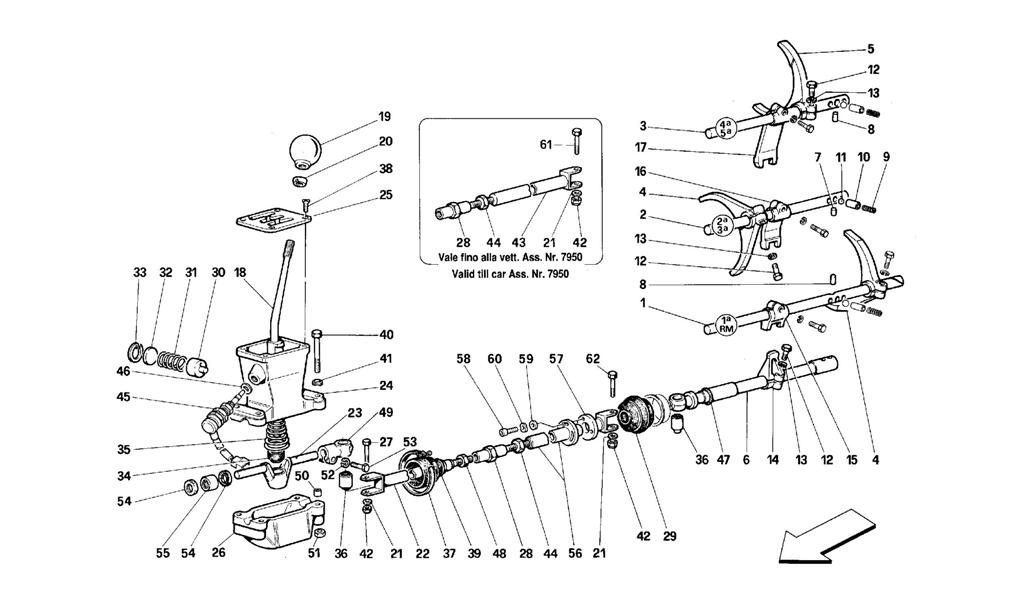

GEARBOX CONTROLS

Go to Split View

GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 150223 *Qty: 1 Gearbox casing, complete $141.91
Location: 1 Prev | Next Part: 107451 *Qty: 1 1st speed and Reverse fork control rod $59.70
Location: 2 Prev | Next Part: 107452 *Qty: 1 2nd and 3rd speed fork control rod $57.34
Location: 3 Prev | Next Part: 132333 *Qty: 1 4th and 5th speed control rod $74.65
Location: 4 Prev | Next Part: 107374 *Qty: 2 Control fork for engagement of 1st, 2nd, 3rd speed and Reverse $116.89
Location: 5 Prev | Next Part: 107375 *Qty: 1 Control fork for engagement of 4th and 5th speeds $1,651.39
Location: 6 Prev | Next Part: 150881 *Qty: 1 Gearbox control rod $107.72
Location: 7 Prev | Next Part: 107454 *Qty: 1 Roller Call
Location: 8 Prev | Next Part: 103011 *Qty: 2 Roller Call
Location: 9 Prev | Next Part: 100750 *Qty: 3 Spring $1.60
Location: 10 Prev | Next Part: 115376 *Qty: 3 Bush $23.74
Location: 11 Prev | Next Part: 101612 *Qty: 3 Rods stop ball $1.23
Location: 12 Prev | Next Part: 16043534 *Qty: 7 Screw $0.90
Location: 13 Prev | Next Part: 127496 *Qty: 7 Washer $0.90
Location: 14 Prev | Next Part: 106217 *Qty: 1 Small forks control lever $173.26
Location: 15 Prev | Next Part: 106221 *Qty: 1 Small fork controlling 1st speed and Reverse rod $163.03
Location: 16 Prev | Next Part: 106222 *Qty: 1 Ditto for 2nd and 3rd speeds $37.98
Location: 17 Prev | Next Part: 106223 *Qty: 1 Ditto for 4th and 5th speeds $177.97
Location: 18 Prev | Next Part: 146691 *Qty: 1 Gearshift lever -Not for RHD $630.76
Location: 18 Prev | Next Part: 150423 *Qty: 1 Gearshift lever -Valid for RHD $744.14
Location: 19 Prev | Next Part: 103301 *Qty: 1 Gearshift lever knob $226.25
Location: 20 Prev | Next Part: 108010 *Qty: 1 Lock nut $28.56
Location: 21 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 22 Prev | Next Part: 146125 *Qty: 1 Front gearbox control rod $93.73
Location: 23 Prev | Next Part: 146130 *Qty: 1 Gearbox control pin $279.57
Location: 24 Prev | Next Part: 146133 *Qty: 1 Gearbox casing -Not as spare parts -With assembly 150223 Call
Location: 25 Prev | Next Part: 146690 *Qty: 1 Speed selector $136.25
Location: 26 Prev | Next Part: 146131 *Qty: 1 Lower cover -Not as spare parts -With assembly 150223 Call
Location: 27 Prev | Next Part: 107830 *Qty: 1 Screw -Valid till car Ass. Nr. 7951 $5.12
Location: 28 Prev | Next Part: 103321 *Qty: 1 Adjusting tie rod $6.65
Location: 29 Prev | Next Part: 106168 *Qty: 1 Bellows for rod $16.32
Location: 30 Prev | Next Part: 103317 *Qty: 1 Lever return pin $14.99
Location: 31 Prev | Next Part: 146124 *Qty: 1 Lever return spring $1.33
Location: 32 Prev | Next Part: 103319 *Qty: 1 Spring retaining disc Call
Location: 33 Prev | Next Part: 103326 *Qty: 1 Seeger ring $0.90
Location: 34 Prev | Next Part: 127446 *Qty: 1 Ball joint seat $26.29
Location: 35 Prev | Next Part: 115340 *Qty: 1 Center spring $3.57
Location: 36 Prev | Next Part: 139555 *Qty: 2 Silentblock $101.75
Location: 37 Prev | Next Part: 10291490 *Qty: 1 Clamp $1.74
Location: 38 Prev | Next Part: 101619 *Qty: 4 Screw $10.89
Location: 39 Prev | Next Part: 106687 *Qty: 1 Bellows $7.73
Location: 40 Prev | Next Part: 16136621 *Qty: 2 Screw $1.74
Location: 41 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 42 Prev | Next Part: 101309 *Qty: 2 Nut Call
Location: 43 Prev | Next Part: 123217 *Qty: 1 Rear gearbox control rod -Valid till car Ass. Nr. 7950 Call
Location: 44 Prev | Next Part: 10791921 *Qty: 1 Lock nut L.H. thread Superseded
Location: 45 Prev | Next Part: 115980 *Qty: 1 Reverse gear light switch $58.62
Location: 46 Prev | Next Part: 12601579 *Qty: 1 Washer Superseded
Location: 47 Prev | Next Part: 105140 *Qty: 1 Sealing ring -Valid till transmission Nr. 1101 $3.49
Location: 48 Prev | Next Part: 10791221 *Qty: 1 Lock nut R.H. thread $4.03
Location: 49 Prev | Next Part: 146127 *Qty: 1 Joint eye $128.07
Location: 50 Prev | Next Part: 121906 *Qty: 2 Dowel $3.00
Location: 51 Prev | Next Part: 16100821 *Qty: 2 Nut Call
Location: 52 Prev | Next Part: 10569373 *Qty: 1 Washer $0.90
Location: 53 Prev | Next Part: 16043724 *Qty: 1 Screw $0.90
Location: 54 Prev | Next Part: 146912 *Qty: 4 Gasket $6.94
Location: 55 Prev | Next Part: 143341 *Qty: 2 Bearing bush $6.77
Location: 56 Prev | Next Part: 151283 *Qty: 1 Rear gearbox control rod -Valid from car Ass. Nr. 7951 $106.33
Location: 57 Prev | Next Part: 151284 *Qty: 1 Fork -Valid from car Ass. Nr. 7951 $106.33
Location: 58 Prev | Next Part: 14305224 *Qty: 3 Screw -Valid from car Ass. Nr. 7951 $0.90
Location: 59 Prev | Next Part: 10730114 *Qty: 3 Washer -Valid from car Ass. Nr. 7951 $0.90
Location: 60 Prev | Next Part: 12601274 *Qty: 3 Washer -Valid from car Ass. Nr. 7951 $0.90
Location: 61 Prev | Next Part: 107830 *Qty: 1 Screw -Valid till car Ass. Nr. 7950 $5.12
Location: 62 Prev | Next Part: 151746 *Qty: 1 Screw -Valid from car Ass. Nr. 7951 Call

* Quantity shown indicates the number of pieces used in the diagram.
