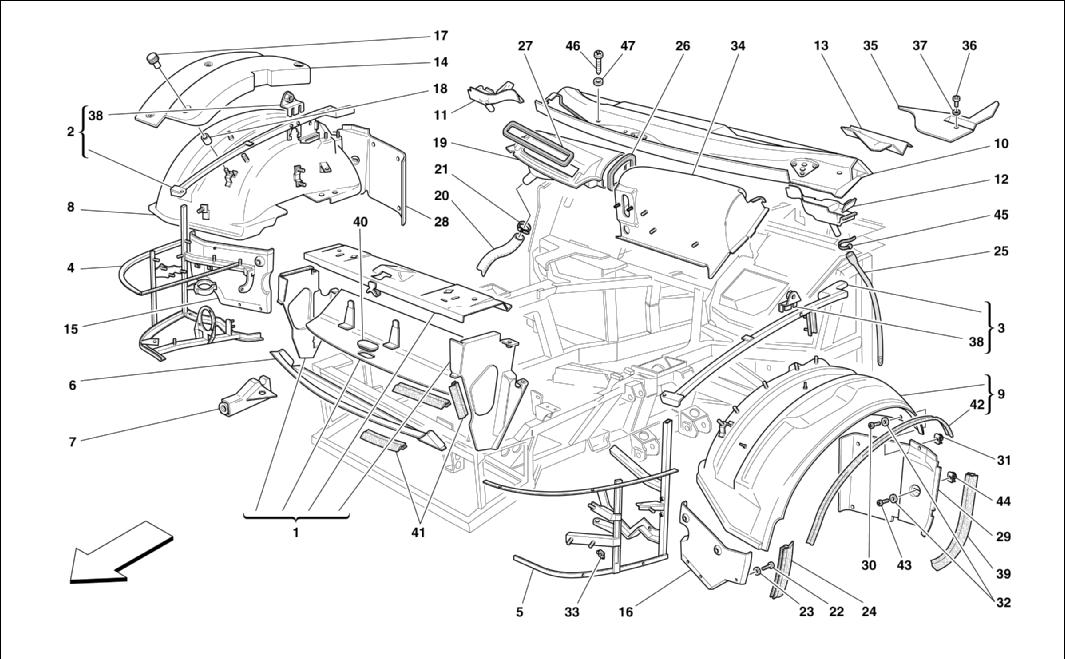

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66173100 *Qty: 1 COMPLETE FRONT CROSS MEMBER Call
Location: 2 Prev | Next Part: 66172800 *Qty: 1 R.H. SIDE FRAME -Not for GD Call
Location: 2 Prev | Next Part: 66634600 *Qty: 1 R.H. SIDE FRAME -Valid for GD $1,068.73
Location: 3 Prev | Next Part: 66172900 *Qty: 1 L.H. SIDE FRAME -Not for GD $1,137.73
Location: 3 Prev | Next Part: 66634700 *Qty: 1 L.H. SIDE FRAME -Valid for GD $1,068.73
Location: 4 Prev | Next Part: 66172600 *Qty: 1 R.H. FRONT FRAME $1,403.91
Location: 5 Prev | Next Part: 66172700 *Qty: 1 L.H. FRONT FRAME $1,403.91
Location: 6 Prev | Next Part: 66173600 *Qty: 1 LOWER CONVEYOR $1,072.75
Location: 7 Prev | Next Part: 66170900 *Qty: 1 TOW HOOK BRACKET $426.19
Location: 8 Prev | Next Part: 66286800 *Qty: 1 R.H. FRONT WHEELHOUSE -Not for GD Call
Location: 8 Prev | Next Part: 66634800 *Qty: 1 R.H. FRONT WHEELHOUSE -Valid for GD $965.77
Location: 9 Prev | Next Part: 66287400 *Qty: 1 L.H. FRONT WHEELHOUSE -Not for GD Call
Location: 9 Prev | Next Part: 66634900 *Qty: 1 L.H. FRONT WHEELHOUSE -Valid for GD $965.77
Location: 10 Prev | Next Part: 64787200 *Qty: 1 WINDSHIELD LOWER CROSS MEMBER -Not for GD $370.85
Location: 10 Prev | Next Part: 65210700 *Qty: 1 WINDSHIELD LOWER CROSS MEMBER -Valid for GD $1,493.02
Location: 11 Prev | Next Part: 64789400 *Qty: 1 R.H. COMPLETE FRONT INSERT $86.53
Location: 12 Prev | Next Part: 64789500 *Qty: 1 L.H. COMPLETE FRONT INSERT $86.53
Location: 13 Prev | Next Part: 64561700 *Qty: 1 R.H. LOWER SEAL $87.27
Location: 13 Prev | Next Part: 64561800 *Qty: 1 L.H. LOWER SEAL $87.27
Location: 14 Prev | Next Part: 66611300 *Qty: 1 L.H.WHEELHOUSE COVER $94.81
Location: 14 Prev | Next Part: 67083900 *Qty: 1 R.H.WHEELHOUSE COVER -Valid for GD $107.89
Location: 14 Prev | Next Part: 66611200 *Qty: 1 R.H.WHEELHOUSE COVER -Not for GD $94.81
Location: 15 Prev | Next Part: 66085700 *Qty: 1 R.H. FRONT GRAVEL GUARD $243.64
Location: 16 Prev | Next Part: 66085800 *Qty: 1 L.H. FRONT GRAVEL GUARD $243.64
Location: 17 Prev | Next Part: 63198900 *Qty: 6 RING NUT $67.05
Location: 18 Prev | Next Part: 13604115 *Qty: 6 SPACER $1.71
Location: 19 Prev | Next Part: 67801500 *Qty: 1 AIR DUCTING -Valid for GD Call
Location: 19 Prev | Next Part: 67801400 *Qty: 1 AIR DUCTING -Not for GD Call
Location: 20 Prev | Next Part: 64537300 *Qty: 1 WATER EXHAUST TUBE $90.85
Location: 20 Prev | Next Part: 63200800 *Qty: 1 WATER EXHAUST TUBE -Not for GD -Not as spare part -Replaced by 64537300 $53.91
Location: 21 Prev | Next Part: 13000690 *Qty: 1 SCREW COLLAR Call
Location: 22 Prev | Next Part: 13276477 *Qty: 14 SCREW $0.90
Location: 23 Prev | Next Part: 12643778 *Qty: 14 WASHER $0.90
Location: 24 Prev | Next Part: 65260100 *Qty: 2 GASKET $4.23
Location: 25 Prev | Next Part: 65195300 *Qty: 2 WATER EXHAUST TUBE $8.14
Location: 26 Prev | Next Part: 65192200 *Qty: 1 GASKET $7.22
Location: 27 Prev | Next Part: 63201100 *Qty: 1 GASKET $6.80
Location: 28 Prev | Next Part: 64560400 *Qty: 1 R.H. LOWER FRONT WHEELHOUSE $203.94
Location: 29 Prev | Next Part: 64560500 *Qty: 1 L.H. LOWER FRONT WHEELHOUSE $113.68
Location: 30 Prev | Next Part: 13276477 *Qty: 12 SCREW $0.90
Location: 31 Prev | Next Part: 62766300 *Qty: 10 CLIP $0.94
Location: 32 Prev | Next Part: 12643778 *Qty: 14 WASHER $0.90
Location: 33 Prev | Next Part: 60758600 *Qty: 8 NUT WITH CAGE $0.90
Location: 34 Prev | Next Part: 170688 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Valid for GD $446.91
Location: 34 Prev | Next Part: 185924 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Not for GD $634.00
Location: 35 Prev | Next Part: 65194100 *Qty: 1 R.H. LATERAL COVER $18.82
Location: 35 Prev | Next Part: 65194200 *Qty: 1 L.H. LATERAL COVER $18.82
Location: 36 Prev | Next Part: 64460500 *Qty: 2 SCREW $1.48
Location: 37 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 38 Prev | Next Part: 65886700 *Qty: 2 HOOD GAS SHOCK ABSORBER BRACKET $19.75
Location: 39 Prev | Next Part: 65747600 *Qty: 2 GASKET $6.87
Location: 40 Prev | Next Part: 62797700 *Qty: 1 PLUG $3.49
Location: 41 Prev | Next Part: 63403200 *Qty: 3 GASKET $10.86
Location: 42 Prev | Next Part: 62926100 *Qty: 2 GASKET $97.05
Location: 43 Prev | Next Part: 15688375 *Qty: 2 SCREW $0.90
Location: 44 Prev | Next Part: 14202782 *Qty: 2 BLOCK $0.90
Location: 45 Prev | Next Part: 145855 *Qty: 1 CLAMP $0.90
Location: 46 Prev | Next Part: 15915977 *Qty: 3 SCREW $0.90
Location: 47 Prev | Next Part: 13338047 *Qty: 3 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
