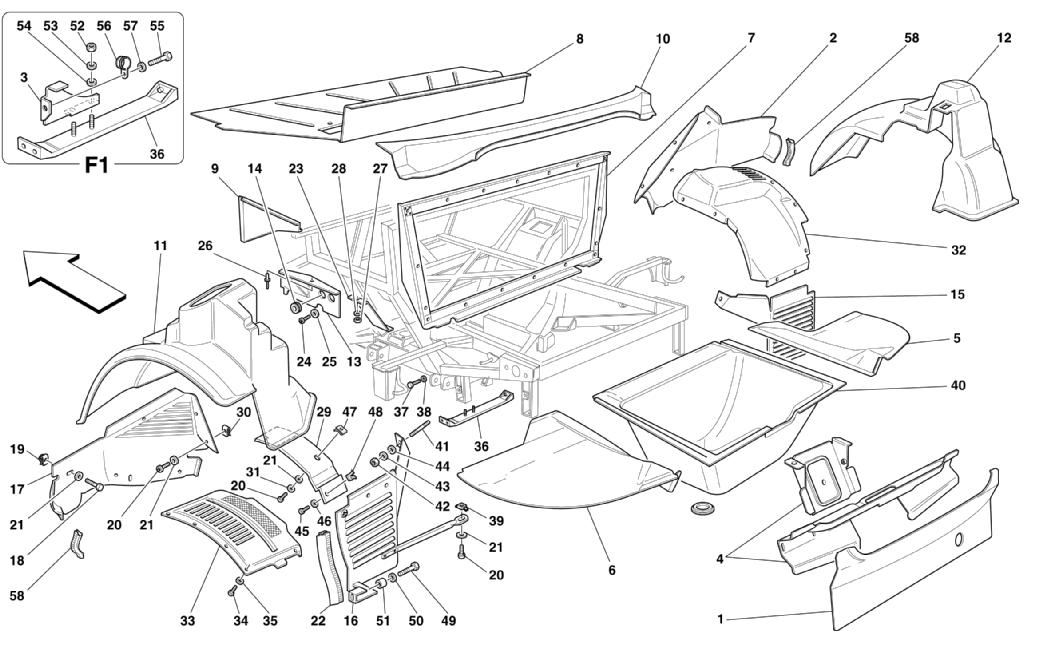

REAR STRUCTURES AND COMPONENTS

Go to Split View

REAR STRUCTURES AND COMPONENTS

Location Part # Quantity* Description Price Add To Cart
1 66532900 1 REAR PANEL $1,039.73
2 67256700 1 FRONT GRAVEL GUARD FOR R.H. REAR WHEEL -Valid for RHD $165.45
2 67112900 1 FRONT GRAVEL GUARD FOR R.H. REAR WHEEL -Not for RHD $143.91
3 186194 1 SHIELD FOR SENSOR PROTECTION -Valid for F1 $67.52
4 65802100 1 COMPLETE STAMPED REAR PANEL $833.56
5 65939000 1 R.H. LATERAL TRUNK BOTTOM $925.84
6 64578600 1 L.H. LATERAL TRUNK BOTTOM $925.84
7 66533100 1 FRAME FOR SHIELD $253.18
8 66674000 1 PANEL FOR BAGS -Valid for USA and CDN Unavailable
8 66408700 1 PANEL FOR BAGS -Not for USA and CDN Unavailable
8 67200500 1 PANEL FOR BAGS -Not for USA, CDN, AUS and J -Valid for 4 ponit belts version -Optional Unavailable
9 64557700 1 SHIELD FOR R.H. WHEELHOUSE $229.80
9 64557800 1 SHIELD FOR L.H. WHEELHOUSE $229.80
10 64552600 1 TAIL REAR WINDOW CROSSPIECE $993.30
11 66080500 1 COMPLETE L.H. REAR WHEELHOUSE $584.60
12 65913600 1 COMPLETE R.H. REAR WHEELHOUSE $675.95
13 65236500 1 DOOR FOR PIPES $69.59
14 10396880 2 CABLE GROMMET Unavailable
15 64650700 1 R.H. REAR GRAVEL GUARD Unavailable
16 64650800 1 L.H. REAR GRAVEL GUARD Unavailable
17 66483200 1 FRONT GRAVEL GUARD FOR L.H. REAR WHEEL $178.84
18 15688375 2 SCREW Unavailable
19 62766300 6 CLIP Unavailable
20 13276477 12 SCREW Unavailable
21 12643778 12 WASHER Unavailable
22 65260100 2 GASKET $3.70
23 65374700 1 L.H. HEAT SHIELD $59.50
23 65374800 1 R.H. HEAT SHIELD $59.50
24 13274211 2 SCREW Unavailable
25 14446924 2 WASHER Unavailable
26 15624311 1 RIVET $5.36
27 113647 8 NUT Unavailable
28 12638124 8 WASHER $0.90
29 64711600 1 DOOR FOR R.H. REAR SIDE-MARKER $9.18
29 64711700 1 DOOR FOR L.H. REAR SIDE-MARKER $9.18
30 62766300 10 CLIP Unavailable
31 106850 2 WASHER Superseded
32 65915200 1 R.H. WHEELHOUSE DOOR $757.72
33 66175600 1 L.H. WHEELHOUSE DOOR $369.28
34 13276477 15 SCREW Unavailable
35 12643778 15 WASHER Unavailable
36 170507 1 MOVABLE CROSS MEMBER $186.76
37 16043124 4 SCREW $0.90
38 127496 4 WASHER $0.90
39 14197890 4 NUT $0.90
40 64554700 1 SPARE WHEEL STEP $1,037.53
41 11500124 2 STUD Unavailable
42 15896214 2 NUT Unavailable
43 106850 2 WASHER Superseded
44 12643778 2 WASHER Unavailable
45 15688375 2 SCREW Unavailable
46 12638177 2 WASHER Superseded
47 62766300 2 CLIP Unavailable
48 14215480 2 NUT SCREW Superseded
49 10978224 2 SCREW Unavailable
50 14496309 2 WASHER Unavailable
51 13604115 2 SPACER $1.62
52 15896470 2 NUT -Valid for F1 Unavailable
53 12638124 2 WASHER -Valid for F1 $0.90
54 127493 2 WASHER -Valid for F1 $0.90
55 10902424 1 SCREW -Valid for F1 Unavailable
56 10441690 1 BRACKET WITH SHEATH -Valid for F1 $2.58
57 12639724 1 WASHER -Valid for F1 $0.90
58 67580500 2 GASKET $5.10

* Quantity shown indicates the number of pieces used in the diagram.
