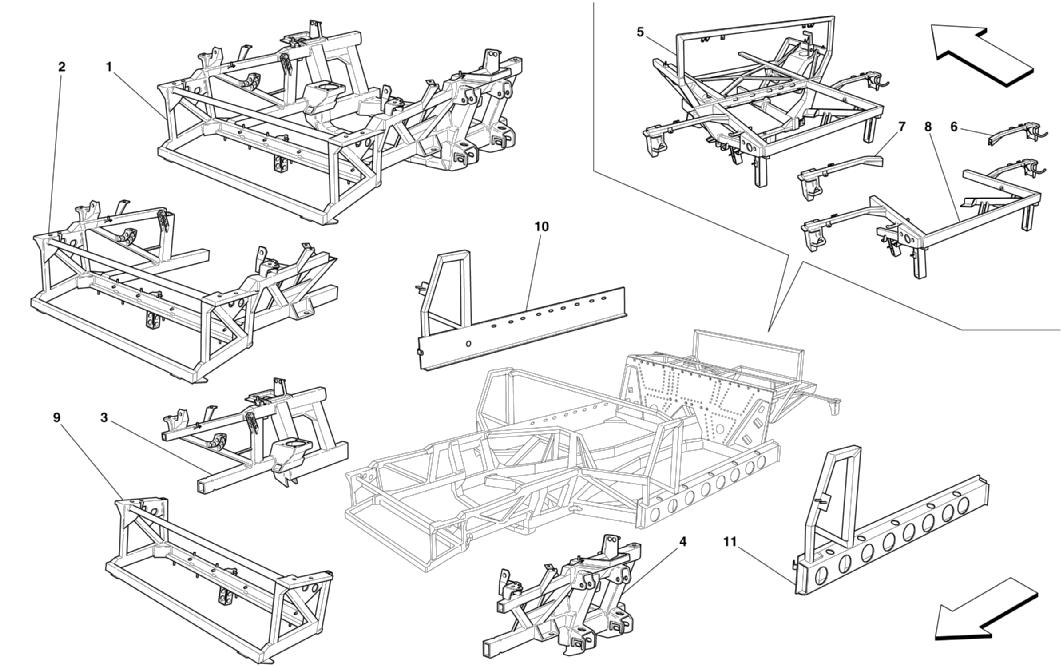

FRAME AND STRUCTURES

Go to Split View

FRAME AND STRUCTURES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 70000155 *Qty: 1 COMPLETE FRONT FRAME -Not for RHD $7,737.64
Location: 1 Prev | Next Part: 70000157 *Qty: 1 COMPLETE FRONT FRAME -Valid for RHD $7,737.64
Location: 2 Prev | Next Part: 70000156 *Qty: 1 COMPLETE FRONT HALF FRAME -Not for RHD Call
Location: 2 Prev | Next Part: 70000158 *Qty: 1 COMPLETE FRONT HALF FRAME -Valid for RHD Call
Location: 3 Prev | Next Part: 70000162 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME $4,321.38
Location: 4 Prev | Next Part: 70000160 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME $4,321.38
Location: 5 Prev | Next Part: 70000169 *Qty: 1 COMPLETE REAR FRAME -Not for USA, CDN and RHD Call
Location: 5 Prev | Next Part: 70000170 *Qty: 1 COMPLETE REAR FRAME -Valid for RHD Call
Location: 5 Prev | Next Part: 70000171 *Qty: 1 COMPLETE REAR FRAME -Valid for USA and CDN $7,854.84
Location: 6 Prev | Next Part: 70000163 *Qty: 1 R.H. CROSS MEMBER Call
Location: 7 Prev | Next Part: 70000164 *Qty: 1 L.H. CROSS MEMBER Call
Location: 8 Prev | Next Part: 70000141 *Qty: 1 REAR FRAME $2,150.87
Location: 9 Prev | Next Part: 70000177 *Qty: 1 FRONT FRAME -Valid for RHD Call
Location: 9 Prev | Next Part: 70000176 *Qty: 1 FRONT FRAME -Not for RHD Call
Location: 10 Prev | Next Part: 70000182 *Qty: 1 R.H. SIDE SPAR Call
Location: 11 Prev | Next Part: 70000183 *Qty: 1 L.H. SIDE SPAR $3,234.28

* Quantity shown indicates the number of pieces used in the diagram.
