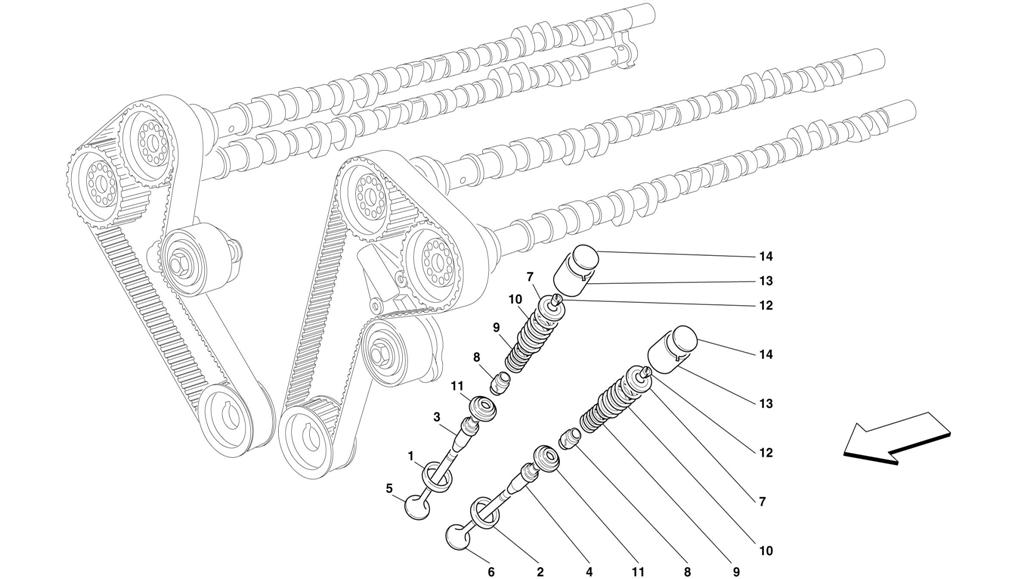

TIMING - VALVES

Location	Part #	Quantity*	Description	Price	Add To Cart
1	140699	24	INTAKE VALVE SEAT	$51.44
2	140702	24	EXHAUST VALVE SEAT	$51.44
3	188630	24	SUCTION VALVE GUIDE	$65.55
3	183781	24	INTAKE VALVE GUIDE OVERSIZED	$98.33
4	178590	24	EXHAUST VALVE GUIDE	$11.23
4	176194	24	EXHAUST VALVE GUIDE OVERSIZE	$72.45
5	140609	24	INTAKE VALVE (EATON)		Unavailable
5	155726	24	INTAKE VALVE (INTERVALVES)	$53.98
6	140597	24	EXHAUST VALVE (EATON)	$147.92
6	155727	24	EXHAUST VALVE (INTERVALVES)	$165.83
7	117567	48	CUP	$41.53
8	141565	48	OIL RING FOR VALVE GUIDE		Unavailable
9	156648	48	INNER SPRING	$72.45
10	160049	48	OUTER SPRING	$72.45
11	140604	48	CUP	$46.67
12	117283	96	COTTER FOR VALVE SPRING CUP	$4.67
13	117562	48	TAPPET FOR VALVE CONTROL	$142.69
14	117585	48	DITTO, THICKNESS 4.05 mm	$48.29
14	117596	48	DITTO, THICKNESS 4.60 mm	$25.86
14	117575	48	DITTO, THICKNESS 3.55 mm	$48.29
14	153735	48	DITTO, THICKNESS 3.925 mm	$14.66
14	117586	48	DITTO, THICKNESS 4.10 mm	$56.92
14	117576	48	DITTO, THICKNESS 3.60 mm	$56.92
14	153736	48	DITTO, THICKNESS 3.975 mm	$48.29
14	117587	48	DITTO, THICKNESS 4.15 mm		Unavailable
14	153737	48	DITTO, THICKNESS 4.025 mm	$46.57
14	117577	48	DITTO, THICKNESS 3.65 mm	$56.92
14	117588	48	DITTO, THICKNESS 4.20 mm	$44.84
14	153738	48	DITTO, THICKNESS 4.075 mm	$46.57
14	117578	48	DITTO, THICKNESS 3.70 mm	$56.92
14	117589	48	DITTO, THICKNESS 4.25 mm	$44.84
14	153739	48	DITTO, THICKNESS 4.125 mm		Unavailable
14	117579	48	DITTO, THICKNESS 3.75 mm	$56.92
14	117590	48	DITTO, THICKNESS 4.30 mm	$44.84
14	117569	48	SHIM FOR VALVE ADJSTMENT THICKNESS 3,25 mm.	$24.14
14	153740	48	DITTO, THICKNESS 4.175 mm	$48.29
14	117580	48	DITTO, THICKNESS 3.80 mm	$56.92
14	117591	48	DITTO, THICKNESS 4.35 mm	$22.41
14	117570	48	DITTO, THICKNESS 3.30 mm	$24.14
14	153741	48	DITTO, THICKNESS 4.225 mm	$14.66
14	117581	48	DITTO, THICKNESS 3.85 mm	$56.92
14	117592	48	DITTO, THICKNESS 4.40 mm	$24.14
14	117571	48	DITTO, THICKNESS 3.35 mm	$24.14
14	153731	48	DITTO, THICKNESS 3.725 mm	$14.66
14	153742	48	DITTO, THICKNESS 4.275 mm	$14.66
14	117582	48	DITTO, THICKNESS 3.90 mm	$56.92
14	117593	48	DITTO, THICKNESS 4.45 mm	$24.14
14	117572	48	DITTO, THICKNESS 3.40 mm	$24.14
14	153732	48	DITTO, THICKNESS 3.775 mm	$14.66
14	117583	48	DITTO, THICKNESS 3.95 mm	$48.29
14	117594	48	DITTO, THICKNESS 4.50 mm	$24.14
14	117573	48	DITTO, THICKNESS 3.45 mm	$24.14
14	153733	48	DITTO, THICKNESS 3.825 mm	$14.66
14	117584	48	DITTO, THICKNESS 4.00 mm		Unavailable
14	117595	48	DITTO, THICKNESS 4.55 mm	$19.41
14	117574	48	DITTO, THICKNESS 3.50 mm	$24.14
14	153734	48	DITTO, THICKNESS 3.875 mm	$14.66

* Quantity shown indicates the number of pieces used in the diagram.
