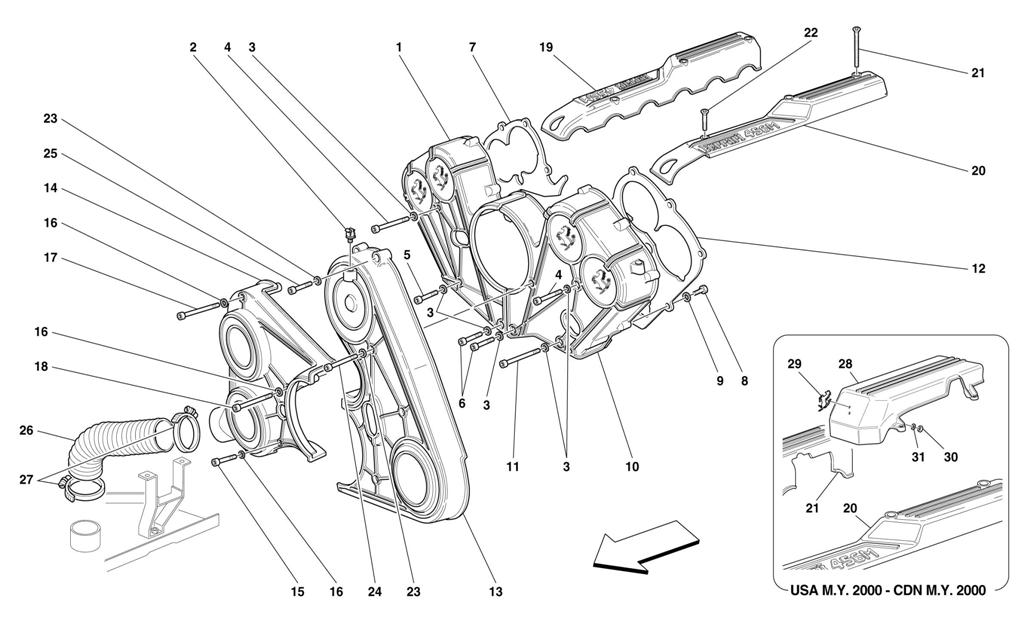

ENGINE COVERS

Go to Split View

ENGINE COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155422 *Qty: 1 R.H. COVER $203.78
Location: 2 Prev | Next Part: 14573987 *Qty: 2 CLIP $0.90
Location: 3 Prev | Next Part: 12604274 *Qty: 6 WASHER $0.90
Location: 4 Prev | Next Part: 156829 *Qty: 2 SCREW Unavailable
Location: 5 Prev | Next Part: 156828 *Qty: 1 SCREW Unavailable
Location: 6 Prev | Next Part: 156830 *Qty: 2 SCREW $1.04
Location: 7 Prev | Next Part: 155819 *Qty: 1 R.H. PROTECTION $37.74
Location: 8 Prev | Next Part: 10977724 *Qty: 11 SCREW $0.90
Location: 9 Prev | Next Part: 12637824 *Qty: 11 WASHER $0.90
Location: 10 Prev | Next Part: 155479 *Qty: 1 L.H. COVER $425.78
Location: 11 Prev | Next Part: 156839 *Qty: 1 SCREW Unavailable
Location: 12 Prev | Next Part: 155820 *Qty: 1 L.H. PROTECTION $34.61
Location: 13 Prev | Next Part: 155576 *Qty: 1 GUARD FOR BELT PROTECTION $336.82
Location: 14 Prev | Next Part: 166919 *Qty: 1 GUARD FOR BELT PROTECTION $252.30
Location: 15 Prev | Next Part: 156830 *Qty: 1 SCREW $1.04
Location: 16 Prev | Next Part: 12604274 *Qty: 3 WASHER $0.90
Location: 17 Prev | Next Part: 156832 *Qty: 1 SCREW $5.63
Location: 18 Prev | Next Part: 156829 *Qty: 1 SCREW Unavailable
Location: 19 Prev | Next Part: 178241 *Qty: 1 R.H. PROTECTION -Not for USA M.Y. 2000 and CDN M.Y. 2000 $154.80
Location: 19 Prev | Next Part: 182205 *Qty: 1 R.H. PROTECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $157.23
Location: 20 Prev | Next Part: 178242 *Qty: 1 L.H. PROTECTION -Not for USA M.Y. 2000 and CDN M.Y. 2000 $71.85
Location: 20 Prev | Next Part: 182206 *Qty: 1 L.H. PROTECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $157.23
Location: 21 Prev | Next Part: 13302577 *Qty: 4 SCREW $1.19
Location: 22 Prev | Next Part: 13301977 *Qty: 2 SCREW Unavailable
Location: 23 Prev | Next Part: 12604274 *Qty: 5 WASHER $0.90
Location: 24 Prev | Next Part: 156831 *Qty: 3 SCREW Unavailable
Location: 25 Prev | Next Part: 156830 *Qty: 2 SCREW $1.04
Location: 26 Prev | Next Part: 158233 *Qty: 1 CONVEYOR TUBE Unavailable
Location: 27 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.25
Location: 28 Prev | Next Part: 182240 *Qty: 1 EXCHANGERS COVER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $3,912.50
Location: 29 Prev | Next Part: 182551 *Qty: 1 CAVALLINO RAMPANTE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Unavailable
Location: 30 Prev | Next Part: 61002200 *Qty: 2 NUT -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Unavailable
Location: 31 Prev | Next Part: 14496101 *Qty: 2 WASHER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
