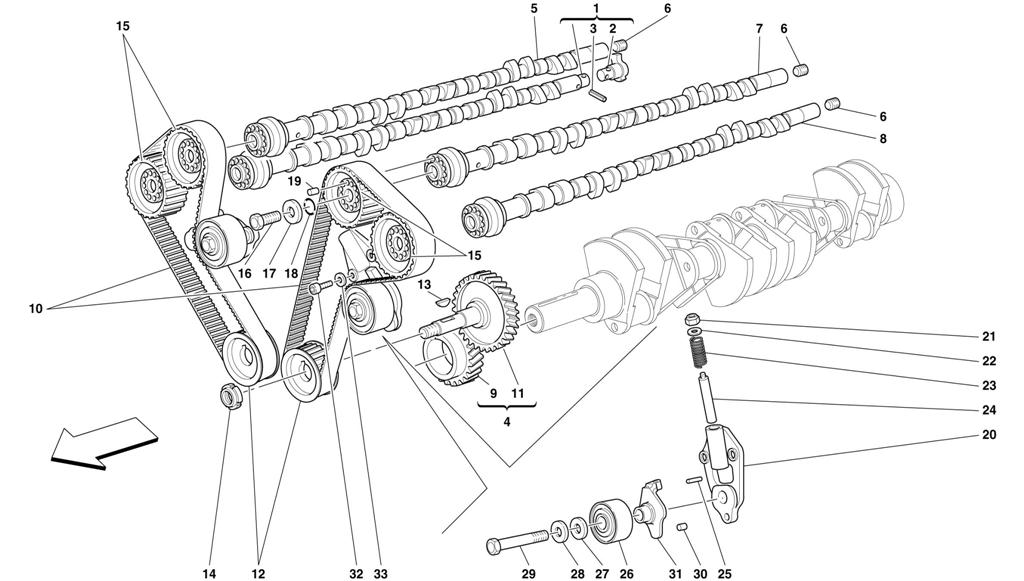

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 171451 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT $902.04
Location: 2 Prev | Next Part: 171450 *Qty: 1 COUPLING ON THE CAM SHAFT $326.67
Location: 3 Prev | Next Part: 149859 *Qty: 4 DOWEL BOLT $2.42
Location: 4 Prev | Next Part: 70000876 *Qty: 1 PINION KIT GEAR $2,473.80
Location: 5 Prev | Next Part: 155147 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION SHAFT $823.82
Location: 6 Prev | Next Part: 10269550 *Qty: 3 THREADED PLUG $0.90
Location: 7 Prev | Next Part: 178280 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION SHAFT $825.46
Location: 8 Prev | Next Part: 178281 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT $825.40
Location: 9 Prev | Next Part: 168702 *Qty: 1 DRIVING GEAR $200.02
Location: 10 Prev | Next Part: 187744 *Qty: 2 TIMING CONTROL BELT $165.10
Location: 11 Prev | Next Part: 168701 *Qty: 2 DRIVEN GEAR $356.10
Location: 12 Prev | Next Part: 149928 *Qty: 2 TIMING GEAR Call
Location: 13 Prev | Next Part: 10206320 *Qty: 2 DISC KEY $1.66
Location: 14 Prev | Next Part: 104919 *Qty: 2 RING NUT $5.12
Location: 15 Prev | Next Part: 159382 *Qty: 4 DRIVEN PULLEY Call
Location: 16 Prev | Next Part: 146540 *Qty: 4 SCREW $7.48
Location: 17 Prev | Next Part: 114802 *Qty: 4 WASHER $6.82
Location: 18 Prev | Next Part: 114808 *Qty: 4 O.R. GASKET $4.81
Location: 19 Prev | Next Part: 114803 *Qty: 4 CENTERING DOWEL $10.03
Location: 20 Prev | Next Part: 149346 *Qty: 2 BELT TIGHTENER BODY $97.58
Location: 21 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 121558 *Qty: 2 WASHER $1.99
Location: 23 Prev | Next Part: 121249 *Qty: 2 SPRING FOR BELT STRETCHER $13.99
Location: 24 Prev | Next Part: 121047 *Qty: 2 PIN $9.18
Location: 25 Prev | Next Part: 13933570 *Qty: 2 PIN $0.90
Location: 26 Prev | Next Part: 171057 *Qty: 2 BALL BEARING $143.24
Location: 27 Prev | Next Part: 111460 *Qty: 2 SPACER Call
Location: 28 Prev | Next Part: 102824 *Qty: 2 WASHER $17.25
Location: 29 Prev | Next Part: 149461 *Qty: 2 SCREW $17.28
Location: 30 Prev | Next Part: 125717 *Qty: 2 CENTERING DOWEL $3.53
Location: 31 Prev | Next Part: 171060 *Qty: 2 PLATE $98.77
Location: 32 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 33 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
