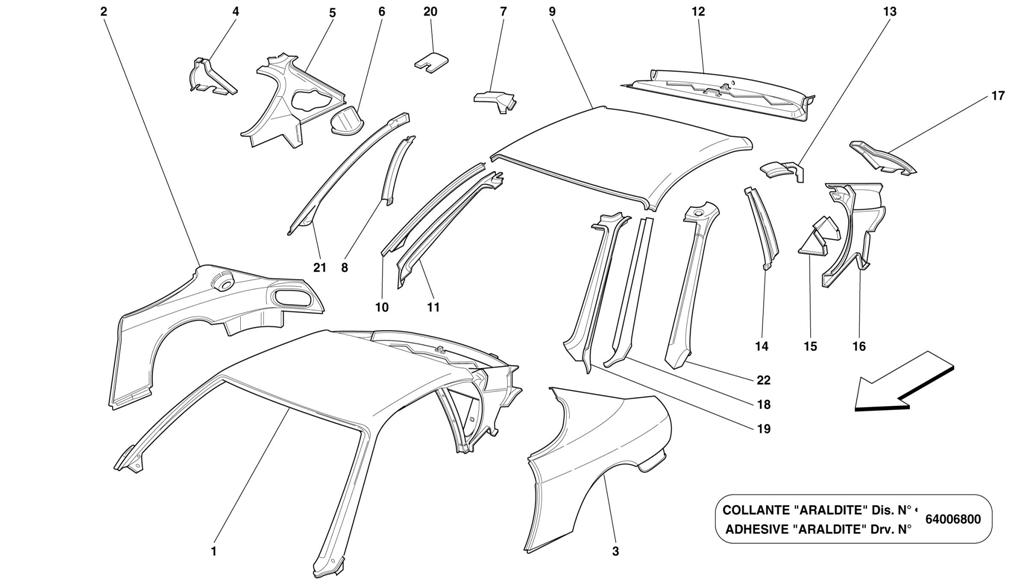

ROOF PANEL STRUCTURES AND COMPONENTS

Go to Split View

ROOF PANEL STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64508500 *Qty: 1 WHOLE ROOF -Valid for CDN Call
Location: 1 Prev | Next Part: 63133600 *Qty: 1 WHOLE ROOF -Not for USA, CDN, AUS and SA Call
Location: 1 Prev | Next Part: 64402600 *Qty: 1 WHOLE ROOF -Valid for USA and SA Call
Location: 1 Prev | Next Part: 64482000 *Qty: 1 WHOLE ROOF -Valid for AUS Call
Location: 2 Prev | Next Part: 64386800 *Qty: 1 COMPLETE R.H. REAR FENDER $2,833.65
Location: 3 Prev | Next Part: 64386900 *Qty: 1 COMPLETE L.H. REAR FENDER $2,833.65
Location: 4 Prev | Next Part: 63703900 *Qty: 1 R.H. BRACKET $49.08
Location: 5 Prev | Next Part: 63125200 *Qty: 1 R.H. FRAME $637.73
Location: 6 Prev | Next Part: 64370300 *Qty: 1 UNION FUEL SHIELD $185.43
Location: 7 Prev | Next Part: 63175800 *Qty: 1 R.H. REAR DOOR SILL SIDE MEMBER $260.99
Location: 8 Prev | Next Part: 63125600 *Qty: 1 R.H. CASE $127.57
Location: 9 Prev | Next Part: 63490900 *Qty: 1 ROOF PANEL $830.86
Location: 10 Prev | Next Part: 63133800 *Qty: 1 R.H. OUTER TRIM FOR WINDSHIELD VERTICAL ROD $268.19
Location: 11 Prev | Next Part: 63173600 *Qty: 1 R.H. INNER VERTICAL ROD Call
Location: 12 Prev | Next Part: 63798300 *Qty: 1 REAR WINDOW CROSS MEMBER $957.66
Location: 13 Prev | Next Part: 63175900 *Qty: 1 L.H. REAR DOOR SILL SIDE MEMBER $260.99
Location: 14 Prev | Next Part: 63125700 *Qty: 1 L.H. CASE $127.57
Location: 15 Prev | Next Part: 63867500 *Qty: 1 L.H. SHIELD $81.46
Location: 16 Prev | Next Part: 63125300 *Qty: 1 L.H. FRAME $595.01
Location: 17 Prev | Next Part: 63704000 *Qty: 1 L.H. BRACKET $47.58
Location: 18 Prev | Next Part: 63133900 *Qty: 1 L.H. OUTER TRIM FOR WINDSHIELD VERTICAL ROD $268.19
Location: 19 Prev | Next Part: 63173700 *Qty: 1 L.H. INNER VERTICAL ROD $467.99
Location: 20 Prev | Next Part: 63873400 *Qty: 1 SEAL $14.81
Location: 21 Prev | Next Part: 64427700 *Qty: 1 R.H. PILLAR $552.16
Location: 22 Prev | Next Part: 64427800 *Qty: 1 L.H. PILLAR $552.16

* Quantity shown indicates the number of pieces used in the diagram.
