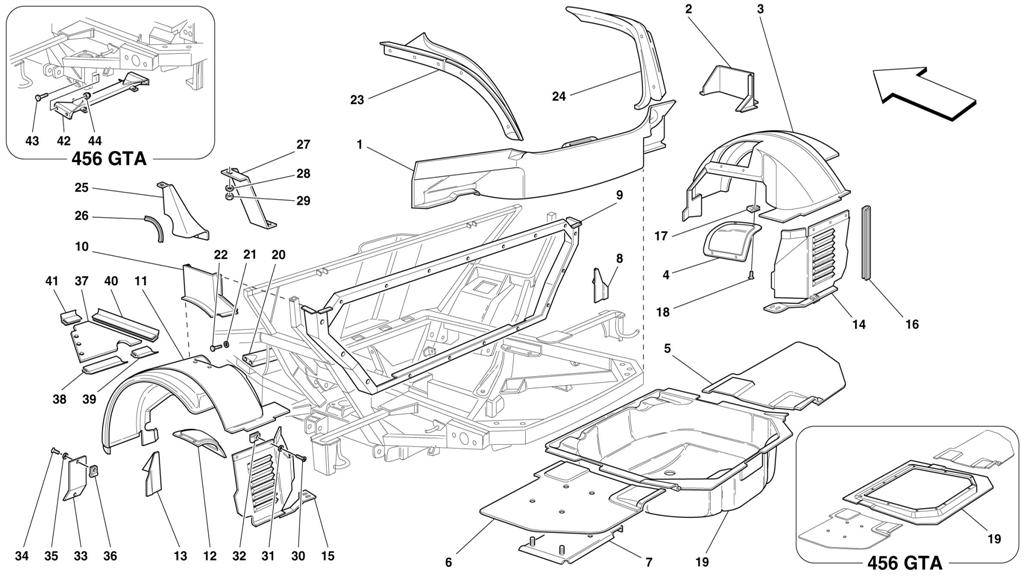

REAR STRUCTURES AND COMPONENTS

Go to Split View

REAR STRUCTURES AND COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63857300 *Qty: 1 LOWER CUTOUT TRUNK MOULDING -Not for 456 GTA $612.79
Location: 1 Prev | Next Part: 64890900 *Qty: 1 LOWER CUTOUT TRUNK MOULDING -Valid for 456 GTA $617.11
Location: 2 Prev | Next Part: 63741600 *Qty: 1 R.H. SIDEWALL SEAL $64.90
Location: 3 Prev | Next Part: 64467300 *Qty: 1 R.H. REAR WHEELHOUSE $343.59
Location: 4 Prev | Next Part: 65500500 *Qty: 1 R.H. DOOR $23.78
Location: 5 Prev | Next Part: 63769200 *Qty: 1 R.H. TRUNK BOTTON Unavailable
Location: 6 Prev | Next Part: 63769300 *Qty: 1 L.H. TRUNK BOTTON $49.54
Location: 7 Prev | Next Part: 63488900 *Qty: 1 SUPPORT HI-FI PLATE $44.67
Location: 8 Prev | Next Part: 62785400 *Qty: 1 R.H. ANGLE PIECE $22.14
Location: 9 Prev | Next Part: 63862400 *Qty: 1 FRAMING $176.28
Location: 10 Prev | Next Part: 63741700 *Qty: 1 L.H. SIDEWALL SEAL $31.80
Location: 11 Prev | Next Part: 64467400 *Qty: 1 L.H. REAR WHEELHOUSE $343.64
Location: 12 Prev | Next Part: 63798900 *Qty: 1 L.H. DOOR Unavailable
Location: 13 Prev | Next Part: 62785500 *Qty: 1 L.H. ANGLE PIECE $21.64
Location: 14 Prev | Next Part: 64894700 *Qty: 1 R.H. REAR GRAVEL GUARD -Valid for 456 GTA Unavailable
Location: 14 Prev | Next Part: 62792700 *Qty: 1 R.H. REAR GRAVEL GUARD -Not for 456 GTA $70.47
Location: 15 Prev | Next Part: 62792800 *Qty: 1 L.H. REAR GRAVEL GUARD -Not for 456 GTA $70.47
Location: 15 Prev | Next Part: 64894900 *Qty: 1 L.H. REAR GRAVEL GUARD -Valid for 456 GTA $107.56
Location: 16 Prev | Next Part: 62796000 *Qty: 2 REAR GRAVEL GUARD GASKET $12.00
Location: 17 Prev | Next Part: 61789700 *Qty: 8 FIXING BRACKET $0.90
Location: 18 Prev | Next Part: 15689675 *Qty: 8 SCREW $0.90
Location: 19 Prev | Next Part: 64694400 *Qty: 1 TRUNK BOTTOM -Valid for 456 GTA $446.94
Location: 19 Prev | Next Part: 64294700 *Qty: 1 TRUNK BOTTOM -Not for 456 GTA -Valid from Ass. Nr. 23421 $506.43
Location: 19 Prev | Next Part: 63778500 *Qty: 1 TRUNK BOTTOM -Not for 456 GTA -Not for RHD -Valid till Ass. Nr. 23420 $278.48
Location: 20 Prev | Next Part: 154580 *Qty: 1 REAR CROSSRAIL $206.71
Location: 21 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 16043124 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 64427400 *Qty: 1 L.H. CONTOUR $308.52
Location: 24 Prev | Next Part: 64427200 *Qty: 1 R.H. CONTOUR $122.89
Location: 25 Prev | Next Part: 64337500 *Qty: 1 FRONT R.H. HEAT PROTECTION SHIELD $64.57
Location: 25 Prev | Next Part: 64337600 *Qty: 1 FRONT L.H. HEAT PROTECTION SHIELD $64.57
Location: 26 Prev | Next Part: 64517200 *Qty: 2 GASKET Unavailable
Location: 27 Prev | Next Part: 64337700 *Qty: 1 REAR R.H. HEAT PROTECTION SHIELD $83.84
Location: 27 Prev | Next Part: 64337800 *Qty: 1 REAR L.H. HEAT PROTECTION SHIELD $83.84
Location: 28 Prev | Next Part: 12638124 *Qty: 8 WASHER $0.90
Location: 29 Prev | Next Part: 169180 *Qty: 8 NUT $0.90
Location: 30 Prev | Next Part: 15688375 *Qty: 12 SCREW $0.90
Location: 31 Prev | Next Part: 12638177 *Qty: 12 WASHER Superseded
Location: 32 Prev | Next Part: 61789700 *Qty: 12 FIXING BRACKET $0.90
Location: 33 Prev | Next Part: 64467500 *Qty: 1 SIDE-MARKER ACCESS R.H. DOOR $21.97
Location: 33 Prev | Next Part: 64467600 *Qty: 1 SIDE-MARKER ACCESS L.H. DOOR $21.97
Location: 34 Prev | Next Part: 15688375 *Qty: 4 SCREW $0.90
Location: 35 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 36 Prev | Next Part: 61789700 *Qty: 2 FIXING BRACKET $0.90
Location: 37 Prev | Next Part: 64054100 *Qty: 2 REAR WHEELHOUSE SHIELD Unavailable
Location: 38 Prev | Next Part: 64076400 *Qty: 2 GASKET $5.02
Location: 39 Prev | Next Part: 64076700 *Qty: 2 GASKET $1.53
Location: 40 Prev | Next Part: 64076600 *Qty: 2 GASKET $7.52
Location: 41 Prev | Next Part: 64076500 *Qty: 2 GASKET $5.02
Location: 42 Prev | Next Part: 164716 *Qty: 1 REAR REMOVABLE CROSS MEMBER -Valid for GTA $232.56
Location: 43 Prev | Next Part: 15540621 *Qty: 4 SCREW -Valid for GTA $1.98
Location: 44 Prev | Next Part: 142438 *Qty: 4 NUT -Valid for GTA $0.96

* Quantity shown indicates the number of pieces used in the diagram.
