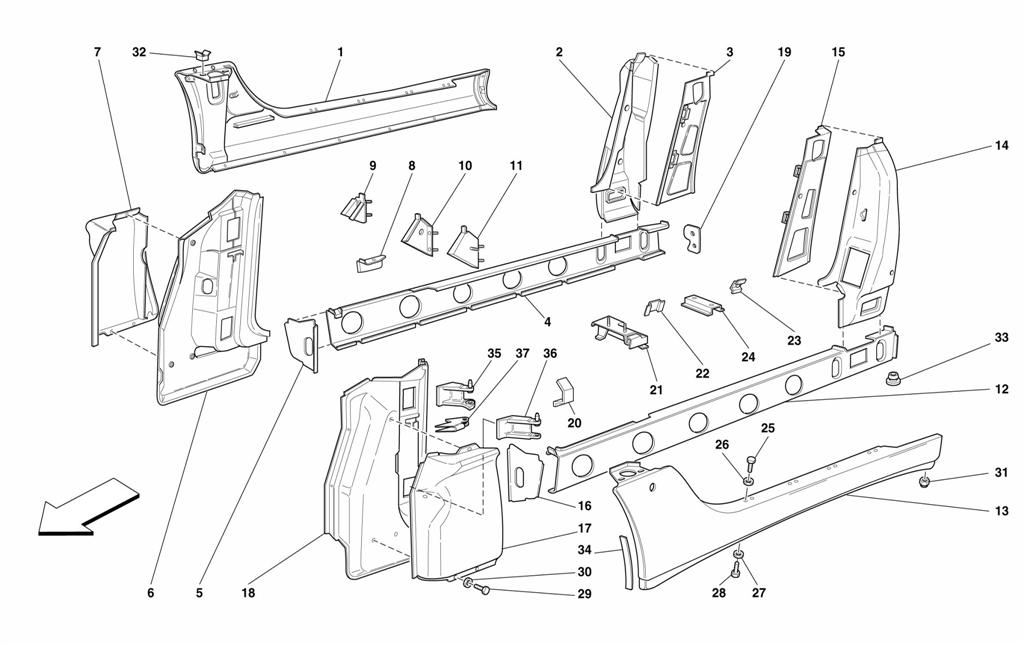

CENTRAL STRUCTURES AND COMPONENTS

Go to Split View

CENTRAL STRUCTURES AND COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64463100 *Qty: 1 EXTERNAL COVERING FOR R.H. SIDE MEMBER -Valid for USA and CDN $2,810.85
Location: 1 Prev | Next Part: 63145400 *Qty: 1 EXTERNAL COVERING FOR R.H. SIDE MEMBER -Not for USA and CDN $2,311.84
Location: 2 Prev | Next Part: 64973100 *Qty: 1 R.H. EXTERNAL REAR COLUMN $373.97
Location: 3 Prev | Next Part: 62791000 *Qty: 1 R.H. INTERNAL REAR COLUMN Call
Location: 4 Prev | Next Part: 63211611 *Qty: 1 R.H. SIDE MEMBER $684.01
Location: 5 Prev | Next Part: 63212000 *Qty: 1 R.H. FRONT DIAPHRAGM $13.98
Location: 6 Prev | Next Part: 63199800 *Qty: 1 R.H. EXTERNAL COLUMN COMPLETE $202.31
Location: 7 Prev | Next Part: 63201500 *Qty: 1 R.H. FRONT EXTERNAL SIDE PANEL $328.00
Location: 8 Prev | Next Part: 63785300 *Qty: 2 R.H. FRONT BRACKET -Not for RHD $13.80
Location: 9 Prev | Next Part: 63794900 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Not for RHD $14.93
Location: 9 Prev | Next Part: 64041200 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Valid for RHD Call
Location: 10 Prev | Next Part: 64041100 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Valid for RHD Call
Location: 10 Prev | Next Part: 63761400 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Not for RHD $8.89
Location: 11 Prev | Next Part: 64041000 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Valid for RHD $27.04
Location: 11 Prev | Next Part: 63761600 *Qty: 1 BRACKET FOR INSTRUMENT PANEL FIXING -Not for RHD $11.47
Location: 12 Prev | Next Part: 63211711 *Qty: 1 L.H. SIDE MEMBER $684.01
Location: 13 Prev | Next Part: 64463200 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER -Valid for USA and CDN $1,278.56
Location: 13 Prev | Next Part: 63145500 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER -Not for USA and CDN $2,311.84
Location: 14 Prev | Next Part: 63858000 *Qty: 1 L.H. EXTERNAL REAR COLUMN $377.42
Location: 15 Prev | Next Part: 62791100 *Qty: 1 L.H. INTERNAL REAR COLUMN $83.84
Location: 16 Prev | Next Part: 63212100 *Qty: 1 L.H. FRONT DIAPHRAGM $13.98
Location: 17 Prev | Next Part: 63201600 *Qty: 1 L.H. FRONT EXTERNAL SIDE PANEL $672.35
Location: 18 Prev | Next Part: 63199900 *Qty: 1 L.H. EXTERNAL COLUMN COMPLETE $202.31
Location: 19 Prev | Next Part: 63213600 *Qty: 1 R.H. REAR LOWER CARPET SHIELD $50.08
Location: 19 Prev | Next Part: 63213700 *Qty: 1 L.H. REAR LOWER CARPET SHIELD $50.08
Location: 20 Prev | Next Part: 63785500 *Qty: 1 R.H. FRONT BRACKET -Not for RHD $27.90
Location: 20 Prev | Next Part: 63785600 *Qty: 1 L.H. FRONT BRACKET -Not for RHD $13.80
Location: 20 Prev | Next Part: 64307000 *Qty: 2 L.H. FRONT AND REAR BRACKET -Valid for RHD $26.43
Location: 21 Prev | Next Part: 63785700 *Qty: 1 INTERMEDIATE BRACKET $53.11
Location: 22 Prev | Next Part: 63786300 *Qty: 2 R.H. REAR BRACKET $15.87
Location: 23 Prev | Next Part: 63785900 *Qty: 2 BRACKET $10.58
Location: 24 Prev | Next Part: 63786200 *Qty: 1 REAR BRACKET $13.98
Location: 25 Prev | Next Part: 13833224 *Qty: 16 SCREW $0.90
Location: 26 Prev | Next Part: 12638124 *Qty: 16 WASHER $0.90
Location: 27 Prev | Next Part: 10902380 *Qty: 12 WASHER $0.90
Location: 28 Prev | Next Part: 12643770 *Qty: 12 SCREW $0.90
Location: 29 Prev | Next Part: 13833224 *Qty: 6 SCREW $0.90
Location: 30 Prev | Next Part: 12638124 *Qty: 6 WASHER $0.90
Location: 31 Prev | Next Part: 13832101 *Qty: 4 NUT $0.90
Location: 32 Prev | Next Part: 60758600 *Qty: 4 NUT WITH CAGE $0.90
Location: 33 Prev | Next Part: 62446300 *Qty: 4 PLUG ? 30 $19.72
Location: 34 Prev | Next Part: 65833400 *Qty: 1 L.H. PROTECTION Call
Location: 34 Prev | Next Part: 65833500 *Qty: 1 R.H. PROTECTION Call
Location: 35 Prev | Next Part: 63189100 *Qty: 1 R.H. UPPER FIXED HINGE $174.15
Location: 35 Prev | Next Part: 63189200 *Qty: 1 L.H. UPPER FIXED HINGE $174.15
Location: 36 Prev | Next Part: 63188500 *Qty: 1 R.H. LOWER FIXED HINGE $174.15
Location: 36 Prev | Next Part: 63188600 *Qty: 1 L.H. LOWER FIXED HINGE $174.15
Location: 37 Prev | Next Part: 63762600 *Qty: 2 TIE-ROD SUPPORT Call

* Quantity shown indicates the number of pieces used in the diagram.
