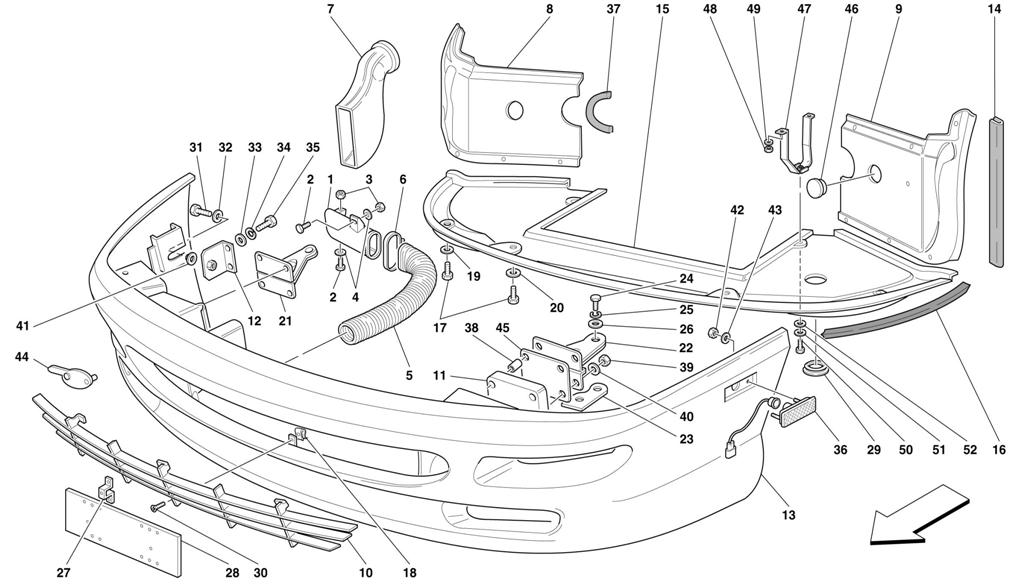

FRONT BUMPER

Go to Split View

FRONT BUMPER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 156353 *Qty: 1 R.H. AIR INLET -Valid till Ass. Nr. 16828 $130.67
Location: 1 Prev | Next Part: 156354 *Qty: 1 L.H. AIR INLET -Valid till Ass. Nr. 16828 $130.67
Location: 1 Prev | Next Part: 163165 *Qty: 1 R.H. AIR INLET -Valid from Ass. Nr. 16829 $949.03
Location: 1 Prev | Next Part: 163166 *Qty: 1 L.H. AIR INLET -Valid from Ass. Nr. 16829 $949.03
Location: 2 Prev | Next Part: 14662495 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 102741 *Qty: 4 NUT -Valid from Ass. Nr. 16829 $0.90
Location: 3 Prev | Next Part: 102948 *Qty: 4 NUT -Valid till Ass. Nr. 16828 $0.90
Location: 4 Prev | Next Part: 12646601 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 174155 *Qty: 2 PIPE -Valid after stock exhaustion of 156403 $186.46
Location: 6 Prev | Next Part: 13001090 *Qty: 4 SCREW COLLAR $1.64
Location: 7 Prev | Next Part: 155985 *Qty: 1 L.H. AIR INLET $300.96
Location: 7 Prev | Next Part: 155986 *Qty: 1 R.H. AIR INLET $357.73
Location: 8 Prev | Next Part: 65375700 *Qty: 1 R.H. FRONT PROTECTION -Substitutes 64510100 $301.04
Location: 8 Prev | Next Part: 63131200 *Qty: 1 R.H. FRONT PROTECTION -Valid till Ass. Nr. 16828 $281.68
Location: 9 Prev | Next Part: 65375600 *Qty: 1 L.H. FRONT PROTECTION -Substitutes 64510200 $301.04
Location: 9 Prev | Next Part: 63131300 *Qty: 1 L.H. FRONT PROTECTION -Valid till Ass. Nr. 16828 $281.68
Location: 10 Prev | Next Part: 63218500 *Qty: 1 FRONT GRILL $1,340.08
Location: 11 Prev | Next Part: 63214100 *Qty: 2 PAD $42.95
Location: 12 Prev | Next Part: 63875400 *Qty: 1 R.H. SIDE BRACKET -Not for USA and CDN $34.79
Location: 12 Prev | Next Part: 63875500 *Qty: 1 L.H. SIDE BRACKET -Not for USA and CDN $34.79
Location: 12 Prev | Next Part: 64186100 *Qty: 1 R.H. SIDE BRACKET -Valid for USA and CDN $4.06
Location: 12 Prev | Next Part: 64186200 *Qty: 1 L.H. SIDE BRACKET -Valid for USA and CDN $4.06
Location: 13 Prev | Next Part: 64180210 *Qty: 1 FRONT BUMPER -Valid for USA $3,103.92
Location: 13 Prev | Next Part: 64186410 *Qty: 1 FRONT BUMPER -Valid for CDN $5,164.13
Location: 13 Prev | Next Part: 64423010 *Qty: 1 FRONT BUMPER -Not for USA and CDN $6,333.95
Location: 14 Prev | Next Part: 62796100 *Qty: 2 GASKET $8.15
Location: 15 Prev | Next Part: 63488000 *Qty: 1 FRONT UNDER THE BODY SHELL $286.02
Location: 16 Prev | Next Part: 62794300 *Qty: 1 FRONT GASKET $17.54
Location: 17 Prev | Next Part: 13836414 *Qty: 6 SCREW $2.39
Location: 18 Prev | Next Part: 62773700 *Qty: 6 CLIP $0.94
Location: 19 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 12624977 *Qty: 2 WASHER Superseded
Location: 21 Prev | Next Part: 64059700 *Qty: 1 R.H. BRACKET $237.29
Location: 22 Prev | Next Part: 64059800 *Qty: 1 L.H. BRACKET $237.29
Location: 23 Prev | Next Part: 63215400 *Qty: 8 SPACER $2.28
Location: 24 Prev | Next Part: 15540621 *Qty: 4 SCREW $1.98
Location: 25 Prev | Next Part: 10571979 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 12648504 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 63736000 *Qty: 2 BRACKET -Not for USA, CDN, RHD, J and SA $25.02
Location: 28 Prev | Next Part: 63736300 *Qty: 1 FRONT PLATE FRAME -Not for USA, CDN, AUS, and SA $66.68
Location: 28 Prev | Next Part: 63736400 *Qty: 1 FRONT PLATE FRAME -Valid for I $63.64
Location: 28 Prev | Next Part: 63025300 *Qty: 1 FRONT PLATE FRAME -Valid for USA, CDN and SA $96.76
Location: 28 Prev | Next Part: 63465000 *Qty: 1 FRONT PLATE FRAME -Valid for AUS $38.48
Location: 29 Prev | Next Part: 63965800 *Qty: 1 PLUG $6.33
Location: 30 Prev | Next Part: 13299477 *Qty: 6 SCREW $0.90
Location: 31 Prev | Next Part: 62794500 *Qty: 2 THREADED PIN Call
Location: 32 Prev | Next Part: 12648504 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12643724 *Qty: 4 WASHER Superseded
Location: 34 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 10902624 *Qty: 4 SCREW $0.90
Location: 36 Prev | Next Part: 147563 *Qty: 2 FRONT SIDE-MARKER LAMP -Valid for USA and CDN $40.63
Location: 37 Prev | Next Part: 64517200 *Qty: 2 GASKET Call
Location: 38 Prev | Next Part: 63214600 *Qty: 8 SPACER $5.59
Location: 39 Prev | Next Part: 12574511 *Qty: 8 NUT Superseded
Location: 40 Prev | Next Part: 12644301 *Qty: 8 WASHER $0.90
Location: 41 Prev | Next Part: 63215300 *Qty: 2 SPACER $59.69
Location: 42 Prev | Next Part: 169180 *Qty: 4 NUT $0.90
Location: 43 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 44 Prev | Next Part: 63879700 *Qty: 1 TOW HOOK HOLE COVER $88.97
Location: 45 Prev | Next Part: 63214800 *Qty: 2 PLATE $45.39
Location: 46 Prev | Next Part: 62797700 *Qty: 2 PLUG $3.05
Location: 47 Prev | Next Part: 63874600 *Qty: 2 SUPPORT $23.81
Location: 48 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 49 Prev | Next Part: 12643770 *Qty: 4 WASHER $0.90
Location: 50 Prev | Next Part: 10902624 *Qty: 6 SCREW $0.90
Location: 51 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 52 Prev | Next Part: 12640624 *Qty: 6 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
