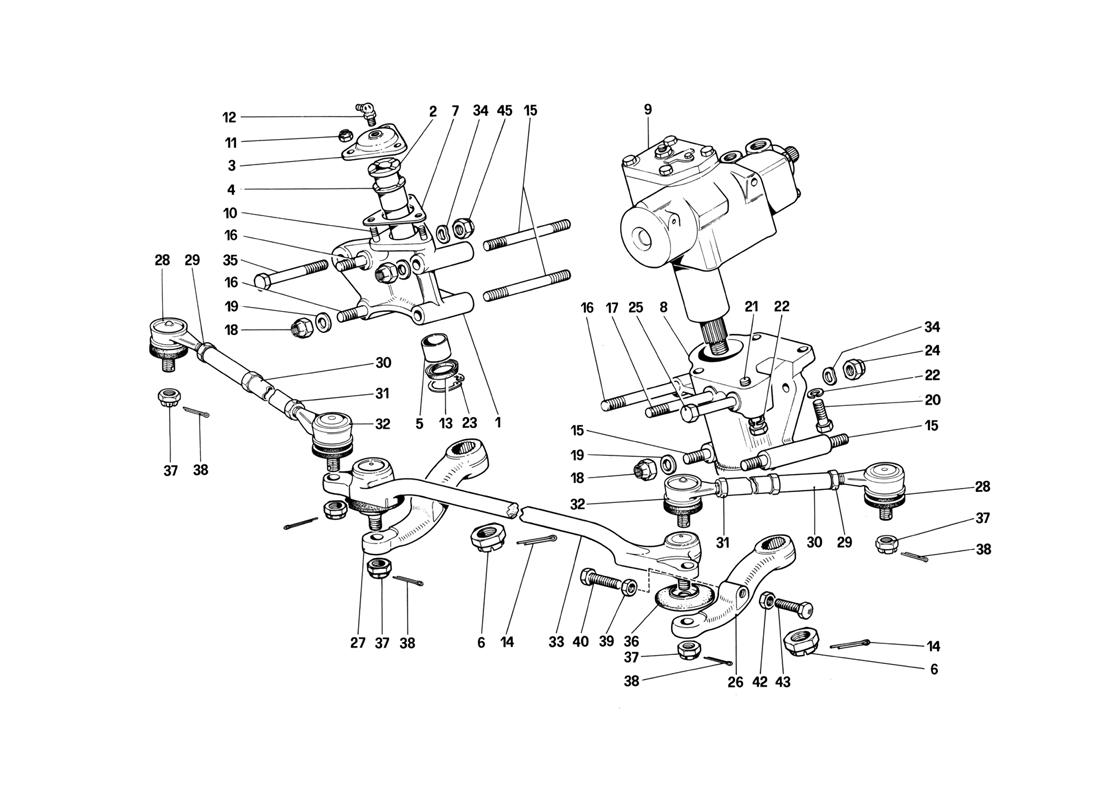

STEERING LINKAGE

Go to Split View

STEERING LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 101120 *Qty: 1 Support for pin of intermediate lever- For LHD $843.52
Location: 1 Prev | Next Part: 104112 *Qty: 1 Support for pin of intermediate lever- For RHD $1,004.32
Location: 2 Prev | Next Part: 101127 *Qty: 1 Pin for intermediate lever Call
Location: 3 Prev | Next Part: 101128 *Qty: 1 Cover $168.94
Location: 4 Prev | Next Part: 101129 *Qty: 1 Upper bush Call
Location: 5 Prev | Next Part: 101130 *Qty: 1 Lower bush $102.48
Location: 6 Prev | Next Part: 101147 *Qty: 2 Castellated nut $25.04
Location: 7 Prev | Next Part: 101134 *Qty: 1 Spacer $12.01
Location: 8 Prev | Next Part: 104111 *Qty: 1 Support for steering box (RHD) $835.14
Location: 8 Prev | Next Part: 101133 *Qty: 1 Support for steering box (LHD) $904.73
Location: 9 Prev | Next Part: 127969 *Qty: 1 Steering box (LHD) $4,957.74
Location: 9 Prev | Next Part: 127970 *Qty: 1 Steering box (RHD) $4,793.32
Location: 10 Prev | Next Part: 13516621 *Qty: 3 Stud $0.90
Location: 11 Prev | Next Part: 101139 *Qty: 3 Nut $0.90
Location: 12 Prev | Next Part: 101140 *Qty: 1 Grease nipple $3.37
Location: 13 Prev | Next Part: 101141 *Qty: 1 Sealing ring $24.02
Location: 14 Prev | Next Part: 10735001 *Qty: 2 Split pin $1.50
Location: 15 Prev | Next Part: 101144 *Qty: 4 Stud $25.70
Location: 16 Prev | Next Part: 101143 *Qty: 3 Stud $24.49
Location: 17 Prev | Next Part: 101116 *Qty: 1 Stud $19.23
Location: 18 Prev | Next Part: 101146 *Qty: 8 Nut $7.04
Location: 19 Prev | Next Part: 10730821 *Qty: 8 Washer For 412 A q= 4 Superseded
Location: 20 Prev | Next Part: 101117 *Qty: 2 Short bolt $20.41
Location: 21 Prev | Next Part: 101118 *Qty: 2 Long bolt $25.70
Location: 22 Prev | Next Part: 10517070 *Qty: 4 Washer Superseded
Location: 23 Prev | Next Part: 101142 *Qty: 1 Inner ring $3.14
Location: 24 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 25 Prev | Next Part: 15541721 *Qty: 1 Bolt $1.20
Location: 26 Prev | Next Part: 101123 *Qty: 1 Lover on steering box $340.78
Location: 27 Prev | Next Part: 101122 *Qty: 1 Lever $363.56
Location: 28 Prev | Next Part: 101155 *Qty: 2 Ball-and-socket joint. lateral Superseded
Location: 29 Prev | Next Part: 101156 *Qty: 2 Rh nut ? 16x1 $20.37
Location: 30 Prev | Next Part: 125919 *Qty: 2 Tie rod. lateral $98.40
Location: 31 Prev | Next Part: 101158 *Qty: 2 LH nut ? 16x1 $8.95
Location: 32 Prev | Next Part: 101159 *Qty: 2 Ball-and-socket joint. left $166.91
Location: 33 Prev | Next Part: 104865 *Qty: 1 Ball-and-socket joint on steering lever Call
Location: 34 Prev | Next Part: 12601571 *Qty: 2 Washer $0.90
Location: 35 Prev | Next Part: 15541621 *Qty: 1 Bolt $35.73
Location: 36 Prev | Next Part: 101168 *Qty: 2 Rubber $17.14
Location: 37 Prev | Next Part: 10793421 *Qty: 6 Nut $2.96
Location: 38 Prev | Next Part: 10734600 *Qty: 6 Split pin $0.90
Location: 39 Prev | Next Part: 12164721 *Qty: 2 Adjusting nut Superseded
Location: 40 Prev | Next Part: 101151 *Qty: 2 Bolt $5.05

* Quantity shown indicates the number of pieces used in the diagram.
