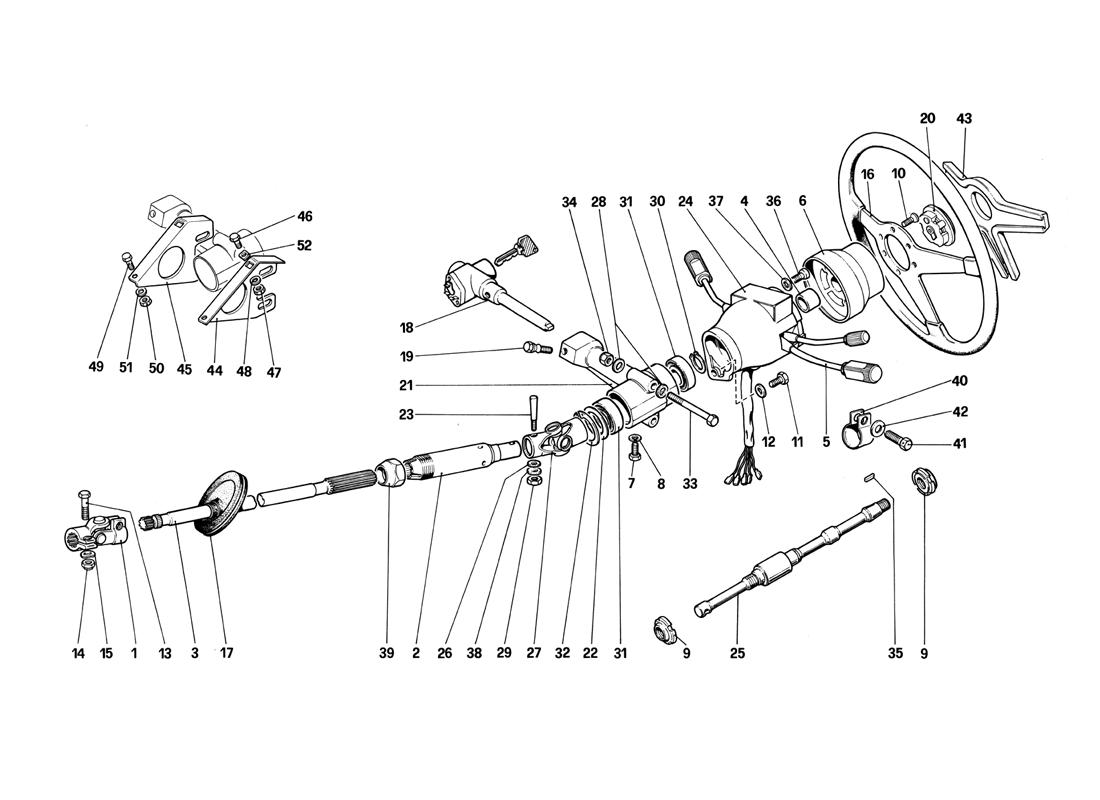

STEERING CONTROL

STEERING CONTROL

Location Part # Quantity* Description Price Add To Cart
1 115935 1 Joint for steering tube end $508.76
2 117379 1 Steering tube $653.40
3 101066 1 Steering shaft $688.92
4 101094 1 Bush $84.08
5 119317 1 Mainswitch Unavailable
6 109447 1 Steering wheel hub
With wheel assembly
Unavailable
7 10979421 1 Bolt Unavailable
8 10414170 1 Washer Unavailable
9 106610 2 Ring nut $84.65
10 111189 6 Screw. oval-headed $6.19
11 111883 1 Bolt Unavailable
12 12601271 1 Washer Superseded
13 16044021 2 Bolt Unavailable
14 16100811 2 Nut Superseded
15 106852 2 Washer Superseded
16 128180 1 Steering wheel
With wheel assembly
Unavailable
16 128179 1 Steering wheel assembly Unavailable
17 101100 1 Gasket for steering shaft $38.63
18 127297 1 Antitheft device Superseded
19 106615 1 Bolt Superseded
20 101071 1 Horn button and retainer Superseded
21 109448 1 Support for upper steering shaft $196.81
22 107489 1 Ditto. thickness 0,3 mm.
Possible fitting
$12.89
22 107488 1 Ditto. thickness 0,4 mm.
Possible fitting
$3.13
22 101101 1 Ditto. thickness 0,5 mm.
Possible fitting
$1.68
22 107490 1 Shim. thickness 0,2 mm.
Possible fitting
$12.89
23 112573 2 Taper pin $55.05
24 126701 1 Main switch housing Unavailable
25 111184 1 Upper shaft. steering control $778.40
26 112571 2 Spacer $9.60
27 112572 1 Universal joing Unavailable
28 10519601 4 Washer Superseded
29 12574221 2 Seiflocking nut Superseded
30 11067376 1 Circlip $1.68
31 101104 2 Ball bearing $16.46
32 11060576 1 Stop ring $1.81
33 16044821 2 Bolt Unavailable
34 16104421 2 Nut Superseded
35 101106 1 Tongue $7.39
36 10389901 2 Screw Unavailable
37 12544171 2 Washer Superseded
38 10519401 2 Washer Superseded
39 106870 1 Nut for adjuster $16.42
40 10418901 1 Strap Unavailable
41 110105 1 Screw Unavailable
42 12642801 1 Washer Unavailable
43 128181 1 Steering wheel cover Unavailable
44 102125 1 Left mounting for steering colum $111.37
45 111045 1 Right mounting for steering colum $81.00
46 10902121 2 Screw Superseded
47 15896211 2 Nut Superseded
48 106850 2 Washer Superseded
49 106005 2 Screw Unavailable
50 103181 2 Nut $3.35
51 106852 2 Washer Superseded
52 106425 2 Plate $22.39

* Quantity shown indicates the number of pieces used in the diagram.
