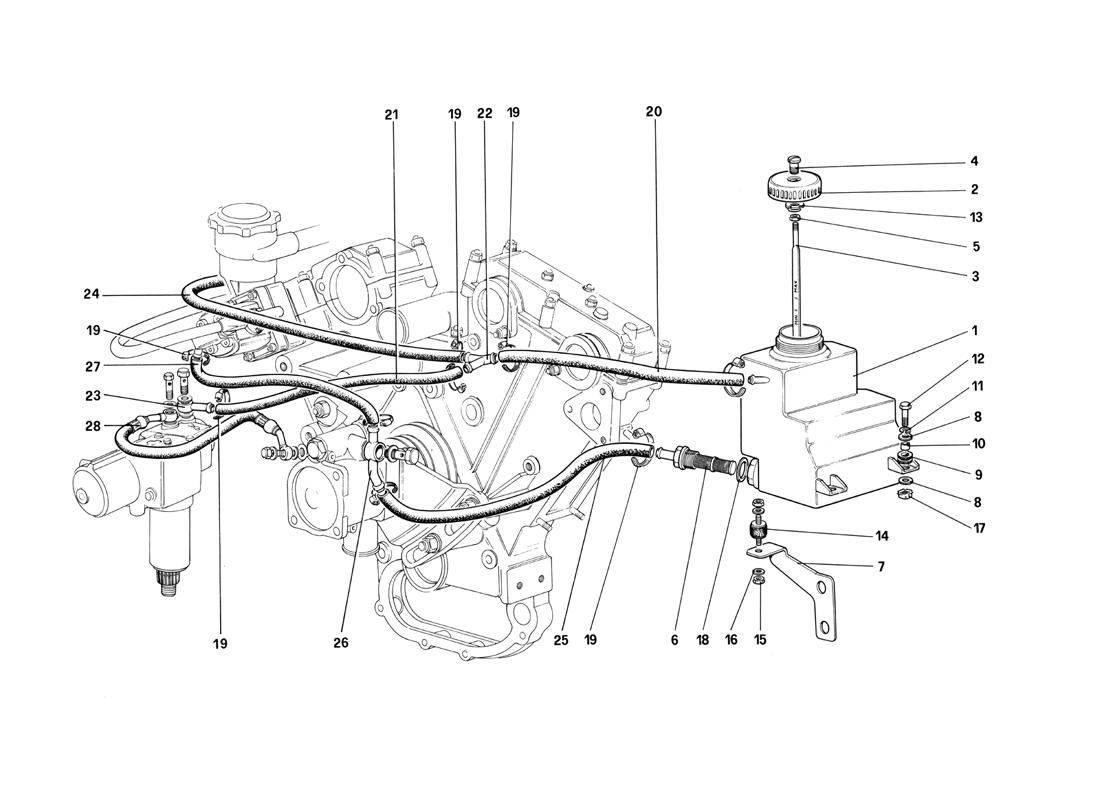

POWER STEERING OIL TANK - OIL PNEUMATIC SELF LEVELLING DEVICES

Go to Split View

POWER STEERING OIL TANK - OIL PNEUMATIC SELF LEVELLING DEVICES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 128764 *Qty: 1 Oil tank $756.99
Location: 2 Prev | Next Part: 126141 *Qty: 1 Plug Call
Location: 3 Prev | Next Part: 128765 *Qty: 1 Dipstick $54.61
Location: 4 Prev | Next Part: 126142 *Qty: 1 Screw $46.80
Location: 5 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 6 Prev | Next Part: 120410 *Qty: 1 Oil filter and suction pipe $73.92
Location: 7 Prev | Next Part: 128767 *Qty: 1 Bracket $11.77
Location: 8 Prev | Next Part: 106744 *Qty: 4 Washer $0.90
Location: 9 Prev | Next Part: 103549 *Qty: 2 Bush vibration - damping $1.37
Location: 10 Prev | Next Part: 103550 *Qty: 2 Spacer $2.16
Location: 11 Prev | Next Part: 127494 *Qty: 2 Spring washer $0.90
Location: 12 Prev | Next Part: 10902721 *Qty: 2 Screw $0.90
Location: 13 Prev | Next Part: 101242 *Qty: 1 Ring nut $4.11
Location: 14 Prev | Next Part: 102947 *Qty: 1 Anti -vibration rubber $15.94
Location: 15 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 16 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 60758600 *Qty: 2 Nut $0.90
Location: 18 Prev | Next Part: 102645 *Qty: 1 Gasket $4.24
Location: 19 Prev | Next Part: 12179590 *Qty: 9 Strap Superseded
Location: 20 Prev | Next Part: 128773 *Qty: 1 Tube. from tank to 3 -way $18.48
Location: 21 Prev | Next Part: 118851 *Qty: 1 Tube. from 3-way to steering box $14.72
Location: 22 Prev | Next Part: 120401 *Qty: 1 3-way union $34.23
Location: 23 Prev | Next Part: 113314 *Qty: 1 Revolving device on steering box $40.53
Location: 24 Prev | Next Part: 118851 *Qty: 1 Tube. from 3 - way to self - levelling valve $14.72
Location: 25 Prev | Next Part: 119137 *Qty: 1 Tube. from oil tank to pump $25.61
Location: 26 Prev | Next Part: 128836 *Qty: 1 Revolving device $84.41
Location: 27 Prev | Next Part: 128863 *Qty: 1 Tube. from hydraulic steering pump to self - levelling pump $27.31
Location: 28 Prev | Next Part: 128737 *Qty: 1 Tube. from hydraulic steering pump to steering box $352.78

* Quantity shown indicates the number of pieces used in the diagram.
