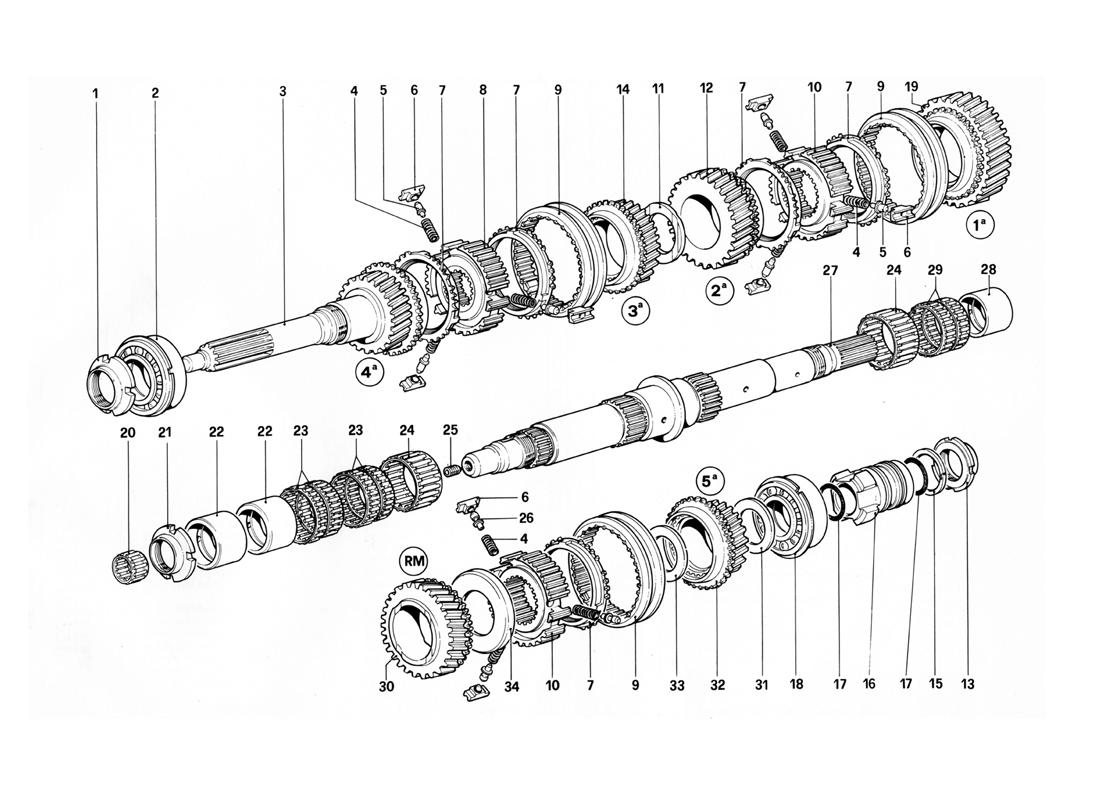

LAYSHAFT - 412M.

Go to Split View

LAYSHAFT - 412M.

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100760 *Qty: 1 Ring nut $158.90
Location: 2 Prev | Next Part: 101609 *Qty: 1 Support bearing for countershaft $1,174.89
Location: 3 Prev | Next Part: 126645 *Qty: 1 Coutershaft $1,256.41
Location: 4 Prev | Next Part: 106043 *Qty: 9 Spring for pin $13.13
Location: 5 Prev | Next Part: 113412 *Qty: 6 Pin $28.00
Location: 6 Prev | Next Part: 106042 *Qty: 9 Pad for synchronizer $98.87
Location: 7 Prev | Next Part: 106040 *Qty: 5 Floating ring for synchronizer $687.54
Location: 8 Prev | Next Part: 106050 *Qty: 1 Synchronizer. 3rd - 4th speed $500.64
Location: 9 Prev | Next Part: 106038 *Qty: 3 Sleeve Superseded
Location: 10 Prev | Next Part: 106039 *Qty: 2 Synchronizer. 1st - 2nd - 5th speeds $609.77
Location: 11 Prev | Next Part: 104057 *Qty: 1 Spacer between 2nd and 3rd speeds $63.31
Location: 12 Prev | Next Part: 119842 *Qty: 1 Gear. 2nd speed $1,192.63
Location: 13 Prev | Next Part: 100729 *Qty: 1 Ring nut Superseded
Location: 14 Prev | Next Part: 119843 *Qty: 1 Gear. 3rd speed $1,242.93
Location: 15 Prev | Next Part: 109648 *Qty: 2 Sealing ring. outer $58.91
Location: 16 Prev | Next Part: 119223 *Qty: 1 Transmitter for pulse generator $46.88
Location: 17 Prev | Next Part: 109649 *Qty: 2 Sealing ring. inner Unavailable
Location: 18 Prev | Next Part: 101607 *Qty: 1 Rear bearing for lay shaft $1,201.12
Location: 19 Prev | Next Part: 119841 *Qty: 1 Gear. 1st speed $860.13
Location: 20 Prev | Next Part: 101608 *Qty: 1 Needle bearing for lay shaft $7.13
Location: 21 Prev | Next Part: 100709 *Qty: 1 Ring nut $106.26
Location: 22 Prev | Next Part: 104054 *Qty: 2 Bearing race. 2nd and 3rd speeds $148.72
Location: 23 Prev | Next Part: 109935 *Qty: 4 Needle bearing. 2nd and 3rd speeds $12.65
Location: 24 Prev | Next Part: 104091 *Qty: 2 Needle bearing. 1st speed and reverse $38.31
Location: 25 Prev | Next Part: 110010 *Qty: 1 Conical plug $11.08
Location: 26 Prev | Next Part: 106044 *Qty: 3 Pin $87.62
Location: 27 Prev | Next Part: 110704 *Qty: 1 Lay shaft $7,080.88
Location: 28 Prev | Next Part: 104055 *Qty: 1 Bearing race. 5th speed $136.21
Location: 29 Prev | Next Part: 101610 *Qty: 2 Needle bearing. 5ht speed $101.08
Location: 30 Prev | Next Part: 128536 *Qty: 1 Reverse gear $728.83
Location: 31 Prev | Next Part: 104056 *Qty: 1 Spacer between gear and bearing $68.49
Location: 32 Prev | Next Part: 119845 *Qty: 1 Gear. 5th speed $3,198.71
Location: 33 Prev | Next Part: 104059 *Qty: 1 Spacer between synchronizer and 5th speed $66.02
Location: 34 Prev | Next Part: 128537 *Qty: 1 Spacer between synchronizer and reverse $198.05

* Quantity shown indicates the number of pieces used in the diagram.
