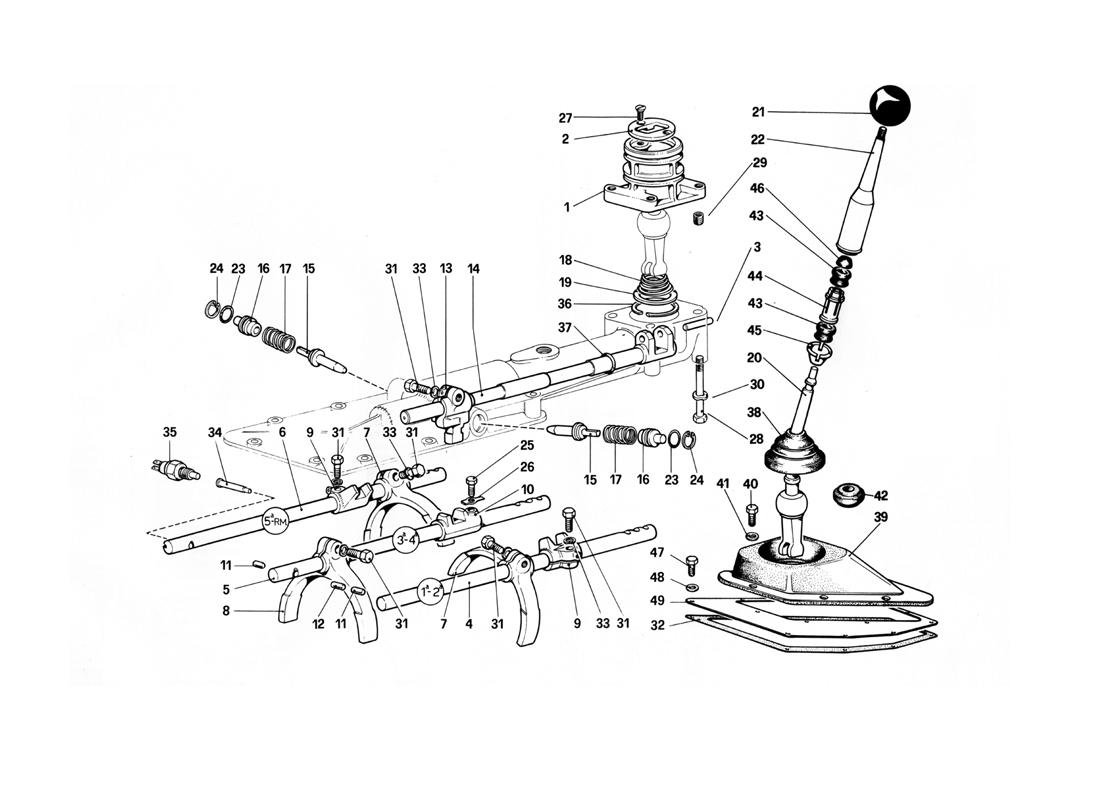

INSIDE AND OUTSIDE GEARBOX CONTROLS - 412 M.

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104826 *Qty: 1 Turret $350.69
Location: 2 Prev | Next Part: 100684 *Qty: 1 Speed selector $158.97
Location: 3 Prev | Next Part: 100737 *Qty: 1 Pin $32.54
Location: 4 Prev | Next Part: 120937 *Qty: 1 Control rod. 1st and 2nd speeds $120.96
Location: 5 Prev | Next Part: 120938 *Qty: 1 Control rod. 3rd and 4th speeds $148.05
Location: 6 Prev | Next Part: 120939 *Qty: 1 Control rod. 5th speed and reverse $155.19
Location: 7 Prev | Next Part: 104068 *Qty: 2 Fork for 1st. 2nd, 5th speeds, reverse $367.48
Location: 8 Prev | Next Part: 104069 *Qty: 1 Fork for 3rd and 4th speeds $416.83
Location: 9 Prev | Next Part: 100745 *Qty: 2 Small fork for 1st. 2nd, 5th speeds, $201.78
Location: 10 Prev | Next Part: 100746 *Qty: 1 Small fork for 3rd and 4th speeds $165.91
Location: 11 Prev | Next Part: 100747 *Qty: 2 Stop pin for lateral rods $21.12
Location: 12 Prev | Next Part: 100748 *Qty: 1 Stop pin for central rod $26.26
Location: 13 Prev | Next Part: 105313 *Qty: 1 Control lever for gear selector rods $278.22
Location: 14 Prev | Next Part: 100752 *Qty: 1 Gear control rod $364.32
Location: 15 Prev | Next Part: 105635 *Qty: 2 Pin for lever $145.53
Location: 16 Prev | Next Part: 100753 *Qty: 2 Bush for pin $36.75
Location: 17 Prev | Next Part: 100754 *Qty: 2 Spring for pin $16.82
Location: 18 Prev | Next Part: 100756 *Qty: 1 Return spring for lever $37.37
Location: 19 Prev | Next Part: 104829 *Qty: 1 Ring $21.00
Location: 20 Prev | Next Part: 100757 *Qty: 1 Control lever (L.H.D.) $632.07
Location: 20 Prev | Next Part: 104447 *Qty: 1 Control lever (R.H.D.) $468.28
Location: 21 Prev | Next Part: 100912 *Qty: 1 Handgrip for control rod $228.92
Location: 22 Prev | Next Part: 106133 *Qty: 1 Control rod $29.83
Location: 23 Prev | Next Part: 101616 *Qty: 2 Sealing ring $1.81
Location: 24 Prev | Next Part: 11057675 *Qty: 2 Stop ring Call
Location: 25 Prev | Next Part: 104279 *Qty: 1 Bolt $25.02
Location: 26 Prev | Next Part: 103587 *Qty: 1 Washer $7.75
Location: 27 Prev | Next Part: 101619 *Qty: 2 Screw $10.89
Location: 28 Prev | Next Part: 16136721 *Qty: 4 Screw. securing turret Call
Location: 29 Prev | Next Part: 13525770 *Qty: 4 Heli - coil for screw $0.90
Location: 30 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 31 Prev | Next Part: 16043621 *Qty: 6 Bolt $0.90
Location: 32 Prev | Next Part: 109230 *Qty: 1 Gasket for plate $64.26
Location: 33 Prev | Next Part: 10516677 *Qty: 6 Washer Superseded
Location: 34 Prev | Next Part: 100738 *Qty: 1 Pin for reverse light switch $38.01
Location: 35 Prev | Next Part: 100946 *Qty: 1 Switch for reverse light Call
Location: 36 Prev | Next Part: 103096 *Qty: 1 Circlip $2.48
Location: 37 Prev | Next Part: 105140 *Qty: 1 Ring for gear control rod $3.49
Location: 38 Prev | Next Part: 104828 *Qty: 1 Bellows on turret $13.03
Location: 39 Prev | Next Part: 104830 *Qty: 1 Bellows on tunnel Call
Location: 40 Prev | Next Part: 10902421 *Qty: 6 Bolt. securing bellows Superseded
Location: 41 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 42 Prev | Next Part: 106502 *Qty: 1 Rubber ring for lever $8.63
Location: 43 Prev | Next Part: 106134 *Qty: 2 Bush $1.78
Location: 44 Prev | Next Part: 106135 *Qty: 1 Spacer Call
Location: 45 Prev | Next Part: 106136 *Qty: 1 Circlip $1.26
Location: 46 Prev | Next Part: 106137 *Qty: 1 Small block $1.78
Location: 47 Prev | Next Part: 10902221 *Qty: 6 Screw Call
Location: 48 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 49 Prev | Next Part: 109229 *Qty: 1 Plate for bellows $32.15

* Quantity shown indicates the number of pieces used in the diagram.
