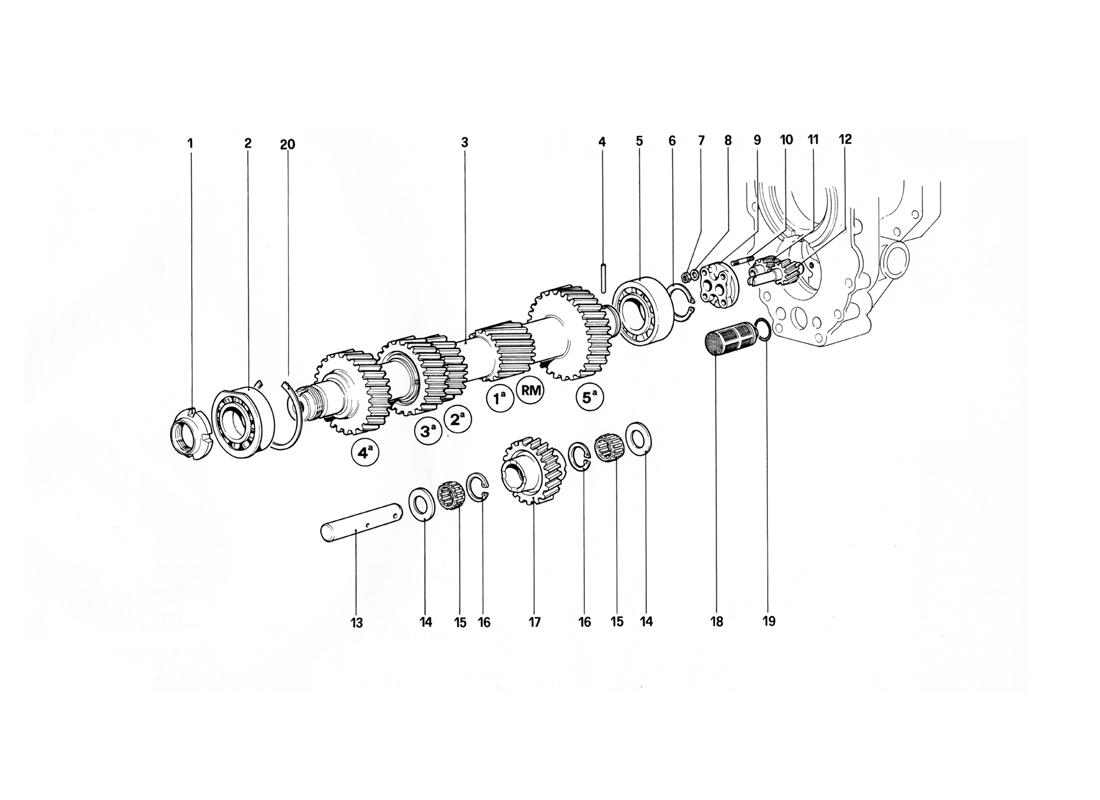

MAIN SHAFT AND OIL PUMP - 412 M.

Go to Split View

MAIN SHAFT AND OIL PUMP - 412 M.

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100729 *Qty: 1 Ring nut Superseded
Location: 2 Prev | Next Part: 119170 *Qty: 1 Front bearing for main shaft $57.34
Location: 3 Prev | Next Part: 119840 *Qty: 1 Main shaft $5,133.00
Location: 4 Prev | Next Part: 13907770 *Qty: 1 Driving pin $0.90
Location: 5 Prev | Next Part: 110988 *Qty: 1 Rear bearing for main shaft
As option part no. 101605
Call
Location: 6 Prev | Next Part: 11068376 *Qty: 1 Seeger $0.90
Location: 7 Prev | Next Part: 15896411 *Qty: 4 Nut Superseded
Location: 8 Prev | Next Part: 12601171 *Qty: 5 Washer Superseded
Location: 9 Prev | Next Part: 109656 *Qty: 1 Cover for oil pump $106.46
Location: 10 Prev | Next Part: 11001220 *Qty: 4 Stud $2.95
Location: 11 Prev | Next Part: 109653 *Qty: 1 Driven gear $214.19
Location: 12 Prev | Next Part: 109652 *Qty: 1 Driving gear $325.46
Location: 13 Prev | Next Part: 100691 *Qty: 1 Pin for reverse idle gear $138.20
Location: 14 Prev | Next Part: 100703 *Qty: 2 Spacer $24.89
Location: 15 Prev | Next Part: 101606 *Qty: 2 Roller cage. reverse gear $5.06
Location: 16 Prev | Next Part: 102681 *Qty: 2 Seeger Call
Location: 17 Prev | Next Part: 119839 *Qty: 1 Reverse idle gear $661.45
Location: 18 Prev | Next Part: 109655 *Qty: 1 Oil pump filter $42.81
Location: 19 Prev | Next Part: 101034 *Qty: 1 Sealing ring for filter $1.51
Location: 20 Prev | Next Part: 119272 *Qty: 1 Shim
With bearing no. 119170
$31.73

* Quantity shown indicates the number of pieces used in the diagram.
