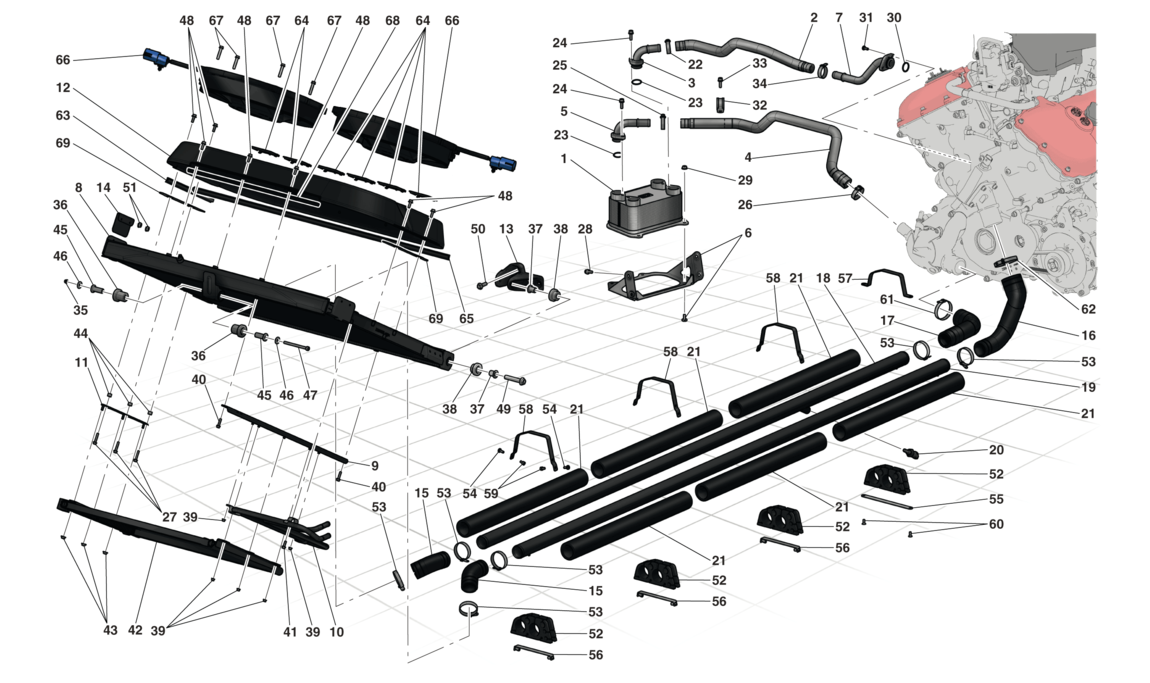

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 286140 *Qty: 1 OIL-WATER HEAT EXCHANGER $1,091.21
Location: 2 Prev | Next Part: 290681 *Qty: 1 RUBBER PIPE FOR FRONT WATER DELIVERY CONNECTOR HOSE $584.55
Location: 3 Prev | Next Part: 286124 *Qty: 1 WATER HEAT EXCHANGER DELIVERY RIGID PIPE $101.68
Location: 4 Prev | Next Part: 290544 *Qty: 1 FRONT WATER RETURN RUBBER PIPE $330.47
Location: 5 Prev | Next Part: 286147 *Qty: 1 WATER HEAT EXCHANGER RETURN RIGID PIPE $226.83
Location: 6 Prev | Next Part: 286367 *Qty: 1 COMPL. BRACKET $162.66
Location: 7 Prev | Next Part: 285869 *Qty: 1 RIGID PIPE FOR FRONT DELIVERY CONNECTOR HOSE $212.25
Location: 8 Prev | Next Part: 301840 *Qty: 1 WATER RADIATOR $5,350.95
Location: 9 Prev | Next Part: 303656 *Qty: 1 COIL MOUNT $88.97
Location: 10 Prev | Next Part: 303019 *Qty: 1 POWER STEERING FLUID COOLING COIL $381.30
Location: 11 Prev | Next Part: 295491 *Qty: 1 AC CONDENSER MOUNTING BRACKET $50.85
Location: 12 Prev | Next Part: 303020 *Qty: 1 ELECTRIC FAN COWL $6,454.72
Location: 13 Prev | Next Part: 302114 *Qty: 1 LOWER LH RADIATOR FORK $317.75
Location: 13 Prev | Next Part: 302115 *Qty: 1 LOWER RH RADIATOR FORK $317.75
Location: 14 Prev | Next Part: 305743 *Qty: 2 SHIM -Th. 2 mm- $17.94
Location: 14 Prev | Next Part: 305744 *Qty: 2 SHIM -Th. 3 mm- $17.94
Location: 14 Prev | Next Part: 305745 *Qty: 2 SHIM -Th. 4 mm- $19.72
Location: 14 Prev | Next Part: 305746 *Qty: 2 SHIM -Th. 5 mm- $26.90
Location: 14 Prev | Next Part: 305747 *Qty: 2 SHIM -Th. 6 mm- $28.68
Location: 15 Prev | Next Part: 282616 *Qty: 2 WATER HOSE SECTION BETWEEN RADIATOR AND UNDERBODY $269.20
Location: 16 Prev | Next Part: 288364 *Qty: 1 RUBBER WATER DELIVERY PIPE FROM THERMOSTAT $455.31
Location: 17 Prev | Next Part: 291670 *Qty: 1 WATER RETURN RUBBER PIPE ON PUMP $326.40
Location: 18 Prev | Next Part: 291672 *Qty: 1 UNDERBODY WATER RETURN PIPE -Not for USA, CDN, USA LIGHT- $327.93
Location: 18 Prev | Next Part: 310879 *Qty: 1 UNDERBODY WATER RETURN PIPE -Applicable for USA, CDN, USA LIGHT- $278.08
Location: 19 Prev | Next Part: 283850 *Qty: 1 UNDERBODY WATER DELIVERY PIPE -Not for USA, CDN, USA LIGHT- $212.96
Location: 19 Prev | Next Part: 310880 *Qty: 1 UNDERBODY WATER DELIVERY PIPE -Applicable for USA, CDN, USA LIGHT- $328.07
Location: 20 Prev | Next Part: 180137 *Qty: 1 WATER/OIL TEMPERATURE SENSOR $27.22
Location: 21 Prev | Next Part: 293041 *Qty: 6 INSULATED PIPE $16.53
Location: 22 Prev | Next Part: 262111 *Qty: 1 SCREW COLLAR $1.81
Location: 23 Prev | Next Part: 122791 *Qty: 2 GASKET $2.30
Location: 24 Prev | Next Part: 231617 *Qty: 2 SCREW -M6 X 18- Unavailable
Location: 25 Prev | Next Part: 262111 *Qty: 1 SCREW COLLAR $1.81
Location: 26 Prev | Next Part: 262112 *Qty: 1 COLLAR $13.15
Location: 27 Prev | Next Part: 302725 *Qty: 3 ERGAL SCREW -M5 X 25- $8.69
Location: 28 Prev | Next Part: 231618 *Qty: 4 SCREW -M6 X 20- Unavailable
Location: 29 Prev | Next Part: 14040614 *Qty: 4 NUT Unavailable
Location: 30 Prev | Next Part: 250888 *Qty: 1 GASKET Unavailable
Location: 31 Prev | Next Part: 231619 *Qty: 2 SCREW -M6 X 22- Unavailable
Location: 32 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 33 Prev | Next Part: 231618 *Qty: 1 SCREW -M6 X 20- Unavailable
Location: 34 Prev | Next Part: 262111 *Qty: 1 SCREW COLLAR $1.81
Location: 35 Prev | Next Part: 132877 *Qty: 1 NUT Superseded
Location: 36 Prev | Next Part: 197584 *Qty: 2 RUBBER BUSHING $3.06
Location: 37 Prev | Next Part: 302296 *Qty: 4 BUSHING $19.07
Location: 38 Prev | Next Part: 282569 *Qty: 4 RADIATOR MOUNTING RUBBER BUSH $3.81
Location: 39 Prev | Next Part: 160472 *Qty: 5 NUT $2.66
Location: 40 Prev | Next Part: 302574 *Qty: 2 ERGAL SCREW -M6 X 15- $6.82
Location: 41 Prev | Next Part: 302723 *Qty: 1 SCREW -M5 X 15- $5.72
Location: 42 Prev | Next Part: 262836 *Qty: 1 CONDENSER $896.79
Location: 43 Prev | Next Part: 13046014 *Qty: 3 NUT Unavailable
Location: 44 Prev | Next Part: 303655 *Qty: 3 SPACER $8.78
Location: 45 Prev | Next Part: 282780 *Qty: 2 RADIATOR FASTENER BUSH $22.50
Location: 46 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 47 Prev | Next Part: 14300534 *Qty: 1 SCREW $3.23
Location: 48 Prev | Next Part: 256323 *Qty: 7 SCREW Unavailable
Location: 49 Prev | Next Part: 298510 *Qty: 2 SCREW $60.52
Location: 50 Prev | Next Part: 299688 *Qty: 6 TITANIUM SCREW -M8 X 25- $39.80
Location: 51 Prev | Next Part: 160472 *Qty: 4 NUT $2.66
Location: 52 Prev | Next Part: 293067 *Qty: 4 PILLORY BLOCK FOR UNDERBODY PIPES $27.97
Location: 53 Prev | Next Part: 262114 *Qty: 6 COLLAR $1.40
Location: 54 Prev | Next Part: 249161 *Qty: 6 SCREW -M5- $3.69
Location: 55 Prev | Next Part: 303491 *Qty: 1 BRACKET $17.79
Location: 56 Prev | Next Part: 296125 *Qty: 3 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK $27.33
Location: 57 Prev | Next Part: 303492 *Qty: 1 BRACKET $47.00
Location: 58 Prev | Next Part: 296126 *Qty: 3 UPPER BRACKET FOR UNDERBODY PILLORY BLOCK $30.51
Location: 59 Prev | Next Part: 14301424 *Qty: 6 SCREW Unavailable
Location: 60 Prev | Next Part: 14440621 *Qty: 2 SCREW Unavailable
Location: 61 Prev | Next Part: 262116 *Qty: 1 COLLAR $3.46
Location: 62 Prev | Next Part: 262383 *Qty: 1 COLLAR $3.71
Location: 63 Prev | Next Part: 294872 *Qty: 2 ELECTRIC FAN COWL SEAL $43.21
Location: 64 Prev | Next Part: 303405 *Qty: 6 FLAP $2.16
Location: 65 Prev | Next Part: 294870 *Qty: 1 ELECTRIC FAN COWL SEAL $50.85
Location: 66 Prev | Next Part: 295420 *Qty: 2 BRUSHLESS MOTOR FAN $889.70
Location: 67 Prev | Next Part: 302657 *Qty: 8 ERGAL SCREW -M6 X 30- $10.99
Location: 68 Prev | Next Part: 294866 *Qty: 1 FRONT FOAM $5.09
Location: 69 Prev | Next Part: 302481 *Qty: 2 LATERAL FOAM $3.19

* Quantity shown indicates the number of pieces used in the diagram.
