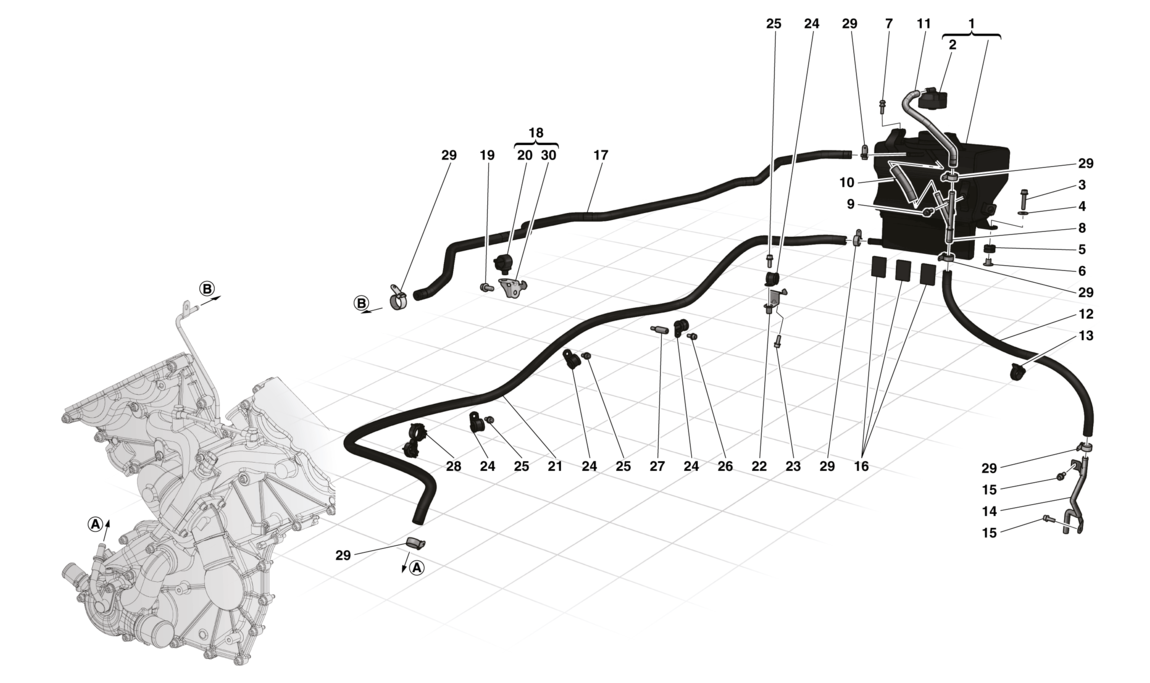

HEADER TANK AND PIPES

Go to Split View

HEADER TANK AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 294014 *Qty: 1 COMPL. HEADER TANK $1,906.50
Location: 2 Prev | Next Part: 145030 *Qty: 1 TANK CAP $50.75
Location: 3 Prev | Next Part: 231621 *Qty: 3 SCREW -M6 X 30- Unavailable
Location: 4 Prev | Next Part: 12643724 *Qty: 3 WASHER Superseded
Location: 5 Prev | Next Part: 103549 *Qty: 3 GROMMET $1.40
Location: 6 Prev | Next Part: 149707 *Qty: 3 SHIM $1.26
Location: 7 Prev | Next Part: 85797600 *Qty: 2 SPECIAL SCREW $33.08
Location: 8 Prev | Next Part: 295432 *Qty: 1 3-WAY CONNECTOR $219.85
Location: 9 Prev | Next Part: 231617 *Qty: 1 SCREW -M6 X 18- Unavailable
Location: 10 Prev | Next Part: 295434 *Qty: 1 RUBBER PIPE $119.47
Location: 11 Prev | Next Part: 300603 *Qty: 1 RUBBER PIPE $186.84
Location: 12 Prev | Next Part: 295431 *Qty: 1 RUBBER PIPE $406.72
Location: 13 Prev | Next Part: 222072 *Qty: 1 CLIP $3.93
Location: 14 Prev | Next Part: 300396 *Qty: 1 HEADER TANK RIGID PIPE $213.53
Location: 15 Prev | Next Part: 231617 *Qty: 2 SCREW -M6 X 18- Unavailable
Location: 16 Prev | Next Part: 295423 *Qty: 3 ADHESIVE FOAM $1.00
Location: 17 Prev | Next Part: 300700 *Qty: 1 RUBBER PIPE $374.95
Location: 18 Prev | Next Part: 301328 *Qty: 1 COMPLETE PIPE MOUNTING BRACKET $31.77
Location: 19 Prev | Next Part: 248334 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 206536 *Qty: 1 CLIP Unavailable
Location: 21 Prev | Next Part: 294248 *Qty: 1 RUBBER PIPE $400.30
Location: 22 Prev | Next Part: 295419 *Qty: 1 BRACKET $63.55
Location: 23 Prev | Next Part: 231617 *Qty: 1 SCREW -M6 X 18- Unavailable
Location: 24 Prev | Next Part: 10441690 *Qty: 4 BRACKET WITH SHEATH $2.41
Location: 25 Prev | Next Part: 231617 *Qty: 3 SCREW -M6 X 18- Unavailable
Location: 26 Prev | Next Part: 231616 *Qty: 1 SCREW -M6 X 14- Unavailable
Location: 27 Prev | Next Part: 287818 *Qty: 1 STUD BOLT $18.95
Location: 28 Prev | Next Part: 306692 *Qty: 1 CLIP SET Unavailable
Location: 29 Prev | Next Part: 262107 *Qty: 10 SCREW COLLAR $1.98
Location: 30 Prev | Next Part: 301327 *Qty: 1 PIPE MOUNTING BRACKET -After depletion, order compl.- -Applicable until depletion- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
