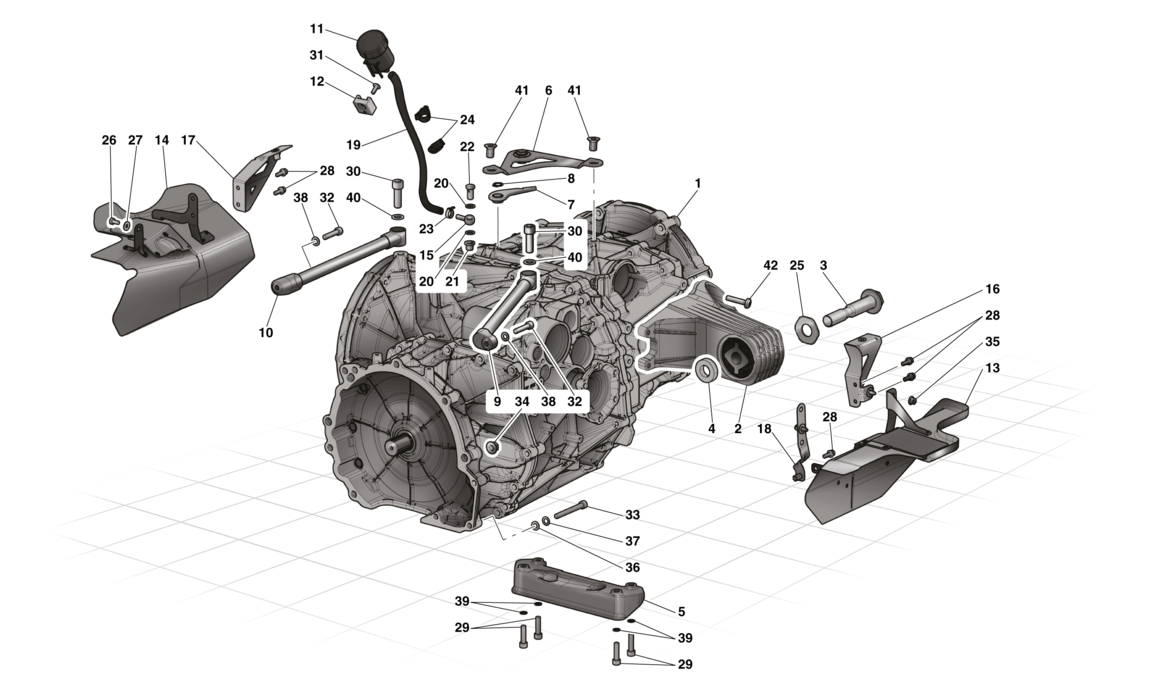

COMPLETE GEARBOX

Go to Split View

COMPLETE GEARBOX

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 298097 *Qty: 1 COMPL. GEARBOX Unavailable
Location: 2 Prev | Next Part: 281697 *Qty: 1 COMPL. LH REAR GEARBOX STRUT $209.78
Location: 2 Prev | Next Part: 281698 *Qty: 1 COMPL. RH REAR GEARBOX STRUT $206.62
Location: 3 Prev | Next Part: 288633 *Qty: 2 GEARBOX MOUNTING BUSH PIN $155.73
Location: 4 Prev | Next Part: 288634 *Qty: 2 DCT GEARBOX BUSHING SHIM $17.44
Location: 5 Prev | Next Part: 290545 *Qty: 1 REAR BUMPER BRACKET $473.51
Location: 6 Prev | Next Part: 298102 *Qty: 1 BRACKET WITH GEARBOX RELEASE CURSOR $311.47
Location: 7 Prev | Next Part: 298103 *Qty: 1 COMPLETE RELEASE LEVER $32.84
Location: 8 Prev | Next Part: 11066176 *Qty: 1 SEEGER RING Unavailable
Location: 9 Prev | Next Part: 299426 *Qty: 1 LH ENGINE-GEARBOX TIE-ROD $249.21
Location: 10 Prev | Next Part: 299422 *Qty: 1 RH ENGINE-GEARBOX TIE-ROD $249.21
Location: 11 Prev | Next Part: 301881 *Qty: 1 DCT EXPANSION TANK $32.84
Location: 12 Prev | Next Part: 301886 *Qty: 1 TANK BREATHER MOUNT $109.64
Location: 13 Prev | Next Part: 304886 *Qty: 1 COMPL. LH REAR SHIELD $236.76
Location: 14 Prev | Next Part: 304888 *Qty: 1 COMPL. RH REAR SHIELD $236.76
Location: 15 Prev | Next Part: 301884 *Qty: 1 SWIVEL CONNECTOR $183.18
Location: 16 Prev | Next Part: 299913 *Qty: 1 COMPL. LH BRACKET $56.08
Location: 17 Prev | Next Part: 297441 *Qty: 1 COMPL. BRACKET $93.45
Location: 18 Prev | Next Part: 302073 *Qty: 1 FASTENER BRACKET FOR SHIELD ON LH STRUT $56.08
Location: 19 Prev | Next Part: 303584 *Qty: 1 RUBBER PIPE $149.50
Location: 20 Prev | Next Part: 10284460 *Qty: 2 GASKET $0.90
Location: 21 Prev | Next Part: 272834 *Qty: 1 GEARBOX OIL BREATHER BUSH $20.57
Location: 22 Prev | Next Part: 11903811 *Qty: 1 PIPE UNION Unavailable
Location: 23 Prev | Next Part: 262108 *Qty: 1 SCREW COLLAR $2.01
Location: 24 Prev | Next Part: 198253 *Qty: 2 CLIP $4.16
Location: 25 Prev | Next Part: 304412 *Qty: 2 HEXAGONAL ANTI-ROTATION WASHER $33.15
Location: 26 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 27 Prev | Next Part: 12646624 *Qty: 1 WASHER Unavailable
Location: 28 Prev | Next Part: 231617 *Qty: 5 SCREW -M6 X 18- Unavailable
Location: 29 Prev | Next Part: 14306534 *Qty: 4 SCREW $0.90
Location: 30 Prev | Next Part: 14331224 *Qty: 2 SCREW $3.44
Location: 31 Prev | Next Part: 62940900 *Qty: 1 SCREW $1.57
Location: 32 Prev | Next Part: 14306624 *Qty: 2 SCREW Unavailable
Location: 33 Prev | Next Part: 14309024 *Qty: 3 SCREW $1.54
Location: 34 Prev | Next Part: 14059421 *Qty: 7 NUT Unavailable
Location: 35 Prev | Next Part: 14040611 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 12638521 *Qty: 3 WASHER $1.55
Location: 37 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 38 Prev | Next Part: 12638524 *Qty: 2 WASHER -No longer supplied- -Replaced by 12648424- $0.90
Location: 38 Prev | Next Part: 12648424 *Qty: 2 WASHER $2.12
Location: 39 Prev | Next Part: 12642724 *Qty: 4 WASHER Unavailable
Location: 40 Prev | Next Part: 13507424 *Qty: 2 WASHER Unavailable
Location: 41 Prev | Next Part: 243151 *Qty: 2 SCREW $6.52
Location: 42 Prev | Next Part: 247857 *Qty: 8 SCREW $2.25

* Quantity shown indicates the number of pieces used in the diagram.
