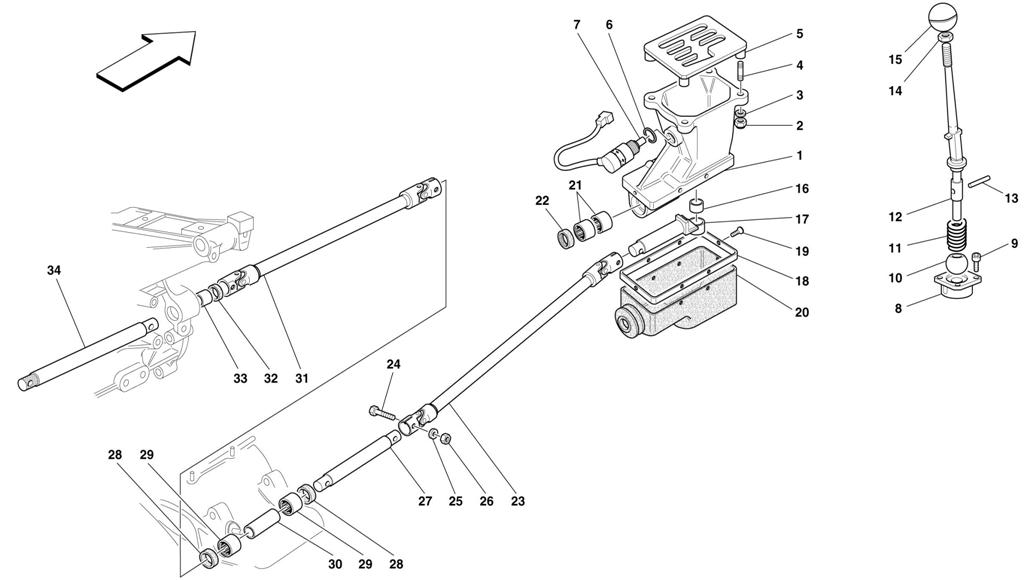

OUTER GEARBOX CONTROLS

Go to Split View

OUTER GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150856 *Qty: 1 GEARBOX CONTROL TURRET $1,567.05
Location: 2 Prev | Next Part: 102948 *Qty: 4 NUT Superseded
Location: 3 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 13541124 *Qty: 4 STUD Unavailable
Location: 5 Prev | Next Part: 150860 *Qty: 1 GEAR SELECTOR $851.57
Location: 6 Prev | Next Part: 12601579 *Qty: 1 WASHER Superseded
Location: 7 Prev | Next Part: 115980 *Qty: 1 PUSH-BUTTON SWITCH $59.79
Location: 8 Prev | Next Part: 154741 *Qty: 1 BUSHING Unavailable
Location: 9 Prev | Next Part: 14303024 *Qty: 4 SCREW $0.97
Location: 10 Prev | Next Part: 146992 *Qty: 1 BALL $254.20
Location: 11 Prev | Next Part: 147561 *Qty: 1 SPRING -Valid till stock exhaustion $98.93
Location: 11 Prev | Next Part: 159137 *Qty: 1 SPRING -Valid after stock exhaustion of 147561 $20.09
Location: 12 Prev | Next Part: 150857 *Qty: 1 GEARBOX CONTROL LEVER $854.71
Location: 13 Prev | Next Part: 146994 *Qty: 1 PIN $47.38
Location: 14 Prev | Next Part: 108010 *Qty: 1 COUNTER NUT $29.14
Location: 15 Prev | Next Part: 165483 *Qty: 1 KNOB Unavailable
Location: 16 Prev | Next Part: 127446 *Qty: 1 BALL JOINT SEAT $26.81
Location: 17 Prev | Next Part: 155480 *Qty: 1 ROCKER IN TURRET $341.91
Location: 18 Prev | Next Part: 150859 *Qty: 1 FRAME $14.10
Location: 19 Prev | Next Part: 14440021 *Qty: 6 SCREW Unavailable
Location: 20 Prev | Next Part: 150858 *Qty: 1 RUBBER BOOT $43.86
Location: 21 Prev | Next Part: 149907 *Qty: 2 BUSHING $3.94
Location: 22 Prev | Next Part: 145773 *Qty: 2 GASKET $6.16
Location: 23 Prev | Next Part: 161956 *Qty: 1 FRONT CONTROL BAR FOR GEAR BOX $541.34
Location: 24 Prev | Next Part: 125515 *Qty: 3 SCREW $17.01
Location: 25 Prev | Next Part: 125516 *Qty: 3 WASHER $5.51
Location: 26 Prev | Next Part: 102948 *Qty: 3 NUT Superseded
Location: 27 Prev | Next Part: 150865 *Qty: 1 ROD ON OIL SUMP $54.38
Location: 28 Prev | Next Part: 145773 *Qty: 2 GASKET $6.16
Location: 29 Prev | Next Part: 149907 *Qty: 2 BUSHING $3.94
Location: 30 Prev | Next Part: 154004 *Qty: 1 SPACER $11.76
Location: 31 Prev | Next Part: 151521 *Qty: 1 REAR CONTROL BAR FOR GEAR BOX $512.85
Location: 32 Prev | Next Part: 145773 *Qty: 2 GASKET $6.16
Location: 33 Prev | Next Part: 149907 *Qty: 1 BUSHING $3.94
Location: 34 Prev | Next Part: 155481 *Qty: 1 ROD ON GEARBOX $109.71

* Quantity shown indicates the number of pieces used in the diagram.
