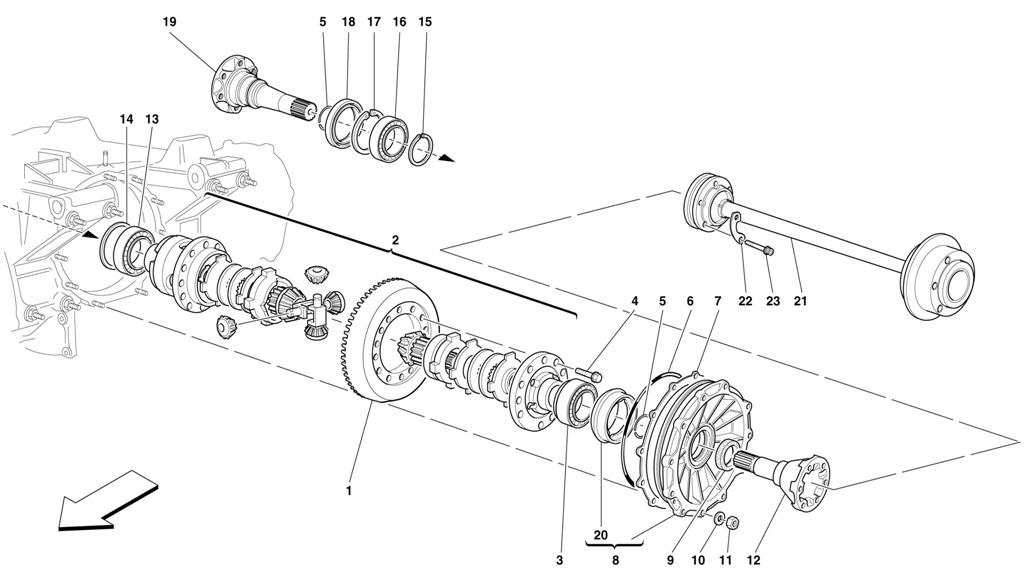

DIFFERENTIAL AND AXLE SHAFT

Go to Split View

DIFFERENTIAL AND AXLE SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 169544 *Qty: 1 COMPLETE CROWN WHEEL AND PINION R.10/37 -Not as spare part now -Replace by 169792 Call
Location: - Prev | Next Part: 169792 *Qty: 1 COMPLETE CROWN WHEEL AND PINION R.10/37 $4,524.18
Location: 1 Prev | Next Part: 168140 *Qty: 1 BEVEL GEAR -Not as spare part now -With the complete crown wheel and pinion 169792 Call
Location: 1 Prev | Next Part: 156084 *Qty: 1 BEVEL GEAR -Not as spare part now -With the complete crown wheel and pinion 169544 Call
Location: 2 Prev | Next Part: 161112 *Qty: 1 COMPLETE DIFFERENTIAL $1,499.16
Location: 3 Prev | Next Part: 125390 *Qty: 1 L.H. BEARING $185.17
Location: 4 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded
Location: 5 Prev | Next Part: 161355 *Qty: 2 FLEXIBLE RING $4.72
Location: 6 Prev | Next Part: 151768 *Qty: 1 GASKET $21.70
Location: 7 Prev | Next Part: 151632 *Qty: 1 SPACER Th. 2,7 mm. $104.06
Location: 7 Prev | Next Part: 163806 *Qty: 1 SPACER Th. 3,5 mm. -As an alternative $102.51
Location: 7 Prev | Next Part: 151633 *Qty: 1 SPACER Th. 2,9 mm. -As an alternative $72.21
Location: 7 Prev | Next Part: 163807 *Qty: 1 SPACER Th. 3,7 mm. -As an alternative $79.75
Location: 7 Prev | Next Part: 151634 *Qty: 1 SPACER Th. 3,1 mm. -As an alternative $97.18
Location: 7 Prev | Next Part: 151635 *Qty: 1 SPACER Th. 3,3 mm. -As an alternative $139.66
Location: 8 Prev | Next Part: 162586 *Qty: 1 DIFFERENTIAL COVER -Valid till stock exhaustion Call
Location: 8 Prev | Next Part: 169513 *Qty: 1 DIFFERENTIAL COVER -Valid after stock exhaustion of 162586 Call
Location: 9 Prev | Next Part: 141509 *Qty: 1 GASKET $106.05
Location: 10 Prev | Next Part: 12601374 *Qty: 11 WASHER $0.90
Location: 11 Prev | Next Part: 16100814 *Qty: 11 NUT $0.90
Location: 12 Prev | Next Part: 161406 *Qty: 1 L.H. FLANGE $725.24
Location: 13 Prev | Next Part: 101634 *Qty: 1 R.H. BEARING $176.22
Location: 14 Prev | Next Part: 163804 *Qty: 1 SPACER Th. 3,8 mm. -As an alternative $17.32
Location: 14 Prev | Next Part: 163805 *Qty: 1 SPACER Th. 4,0 mm. -As an alternative $17.32
Location: 14 Prev | Next Part: 169534 *Qty: 1 SPACER Th. 2 mm. -As an alternative $27.17
Location: 14 Prev | Next Part: 122067 *Qty: 1 SPACER Th. 2,8 mm. -As an alternative $14.80
Location: 14 Prev | Next Part: 169535 *Qty: 1 SPACER Th. 2,2 mm. -As an alternative $27.17
Location: 14 Prev | Next Part: 122068 *Qty: 1 SPACER Th. 3,4 mm. $17.32
Location: 14 Prev | Next Part: 169536 *Qty: 1 SPACER Th. 2,4 mm. -As an alternative $27.17
Location: 14 Prev | Next Part: 122069 *Qty: 1 SPACER Th. 3,6 mm. -As an alternative $17.32
Location: 14 Prev | Next Part: 122070 *Qty: 1 SPACER Th. 3,0 mm. -As an alternative $17.32
Location: 14 Prev | Next Part: 122071 *Qty: 1 SPACER Th. 3,2 mm. -As an alternative $17.32
Location: 15 Prev | Next Part: 156473 *Qty: 1 FLEXIBLE RING $0.90
Location: 16 Prev | Next Part: 156161 *Qty: 1 BEARING $174.68
Location: 17 Prev | Next Part: 11061976 *Qty: 1 FLEXIBLE RING $1.28
Location: 18 Prev | Next Part: 151546 *Qty: 1 GASKET $34.29
Location: 19 Prev | Next Part: 161371 *Qty: 1 R.H. FLANGE $930.70
Location: 20 Prev | Next Part: 156546 *Qty: 1 BUSHING $131.33
Location: 21 Prev | Next Part: 170102 *Qty: 2 AXLE SHAFT Call
Location: 22 Prev | Next Part: 149415 *Qty: 6 SCRAPING PLATE $2.15
Location: 23 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded

* Quantity shown indicates the number of pieces used in the diagram.
