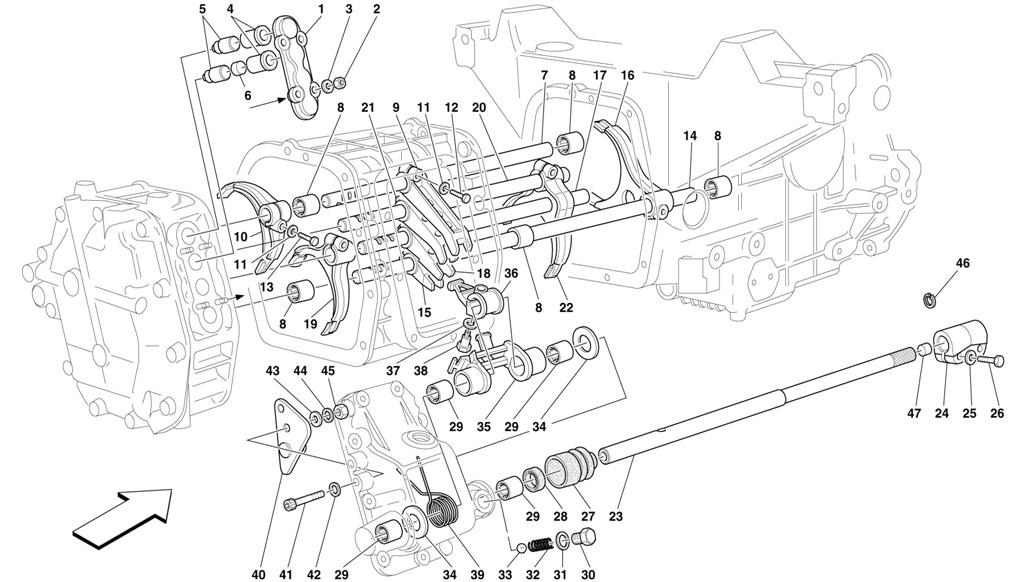

INNER GEARBOX CONTROLS

Go to Split View

INNER GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155674 *Qty: 1 COVER $356.62
Location: 2 Prev | Next Part: 15896214 *Qty: 4 NUT Call
Location: 3 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 153647 *Qty: 4 BUSHING $8.99
Location: 5 Prev | Next Part: 153719 *Qty: 4 PIN $17.82
Location: 6 Prev | Next Part: 153442 *Qty: 2 SPACER $3.21
Location: 7 Prev | Next Part: 156863 *Qty: 1 CONTROL ROD FOR REVERSE $112.45
Location: 8 Prev | Next Part: 143341 *Qty: 9 BEARING BUSH $6.77
Location: 9 Prev | Next Part: 150411 *Qty: 1 ROD FORK REVERSE $139.30
Location: 10 Prev | Next Part: 155870 *Qty: 1 CONTROL FORK FOR REVERSE $223.69
Location: 11 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 12 Prev | Next Part: 16043634 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: 16043734 *Qty: 4 SCREW $3.17
Location: 14 Prev | Next Part: 156665 *Qty: 1 ROD FOR 1st AND 2nd GEAR $128.09
Location: 15 Prev | Next Part: 150346 *Qty: 1 ROD FORK FOR 1st AND 2nd GEAR $127.17
Location: 16 Prev | Next Part: 155800 *Qty: 1 CONTROL FORK FOR 1st AND 2nd GEAR $722.89
Location: 17 Prev | Next Part: 156846 *Qty: 1 ROD FOR 3rd AND 4th GEAR $105.95
Location: 18 Prev | Next Part: 150521 *Qty: 1 ROD FORK FOR 3rd AND 4th GEAR $133.20
Location: 19 Prev | Next Part: 155857 *Qty: 1 CONTROL FORK FOR 3rd AND 4th GEAR $223.63
Location: 20 Prev | Next Part: 156851 *Qty: 1 ROD FOR 5th AND 6th GEAR $105.95
Location: 21 Prev | Next Part: 150447 *Qty: 1 ROD FORK FOR 5th AND 6th GEAR $136.27
Location: 22 Prev | Next Part: 155816 *Qty: 1 CONTROL FORK FOR 5th AND 6th GEAR $223.63
Location: 23 Prev | Next Part: 156868 *Qty: 1 CONTROL ROD FOR GEARBOX $234.60
Location: 24 Prev | Next Part: 155473 *Qty: 1 CONTROL ROD FOR GEARBOX CONNECTION $167.99
Location: 25 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 16043624 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 147572 *Qty: 1 RUBBER BOOT $61.19
Location: 28 Prev | Next Part: 146306 *Qty: 1 GASKET $2.29
Location: 29 Prev | Next Part: 149907 *Qty: 4 BEARING BUSH $3.87
Location: 30 Prev | Next Part: 157054 *Qty: 1 UNION $39.33
Location: 31 Prev | Next Part: 153722 *Qty: 1 GASKET $10.72
Location: 32 Prev | Next Part: 121805 *Qty: 1 SPRING $2.01
Location: 33 Prev | Next Part: 101612 *Qty: 1 BALL $1.23
Location: 34 Prev | Next Part: 154250 *Qty: 2 SPACER $6.32
Location: 35 Prev | Next Part: 150627 *Qty: 1 GEARBOX CONTROL ROCKER ARM $748.00
Location: 36 Prev | Next Part: 150606 *Qty: 1 FORK CONTROL SMALL LEVER $142.48
Location: 37 Prev | Next Part: 127497 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 133150 *Qty: 1 SCREW $6.30
Location: 39 Prev | Next Part: 153999 *Qty: 1 SPRING $11.76
Location: 40 Prev | Next Part: 154246 *Qty: 1 SUPPORT $93.90
Location: 41 Prev | Next Part: 154291 *Qty: 2 SCREW $2.24
Location: 42 Prev | Next Part: 10298050 *Qty: 2 GASKET $0.90
Location: 43 Prev | Next Part: 12647801 *Qty: 2 WASHER $1.97
Location: 44 Prev | Next Part: 106850 *Qty: 2 WASHER Superseded
Location: 45 Prev | Next Part: 15896214 *Qty: 2 NUT Call
Location: 46 Prev | Next Part: 166560 *Qty: 1 SEEGER RING $0.90
Location: 47 Prev | Next Part: 10158501 *Qty: 1 PLUG $1.58

* Quantity shown indicates the number of pieces used in the diagram.
