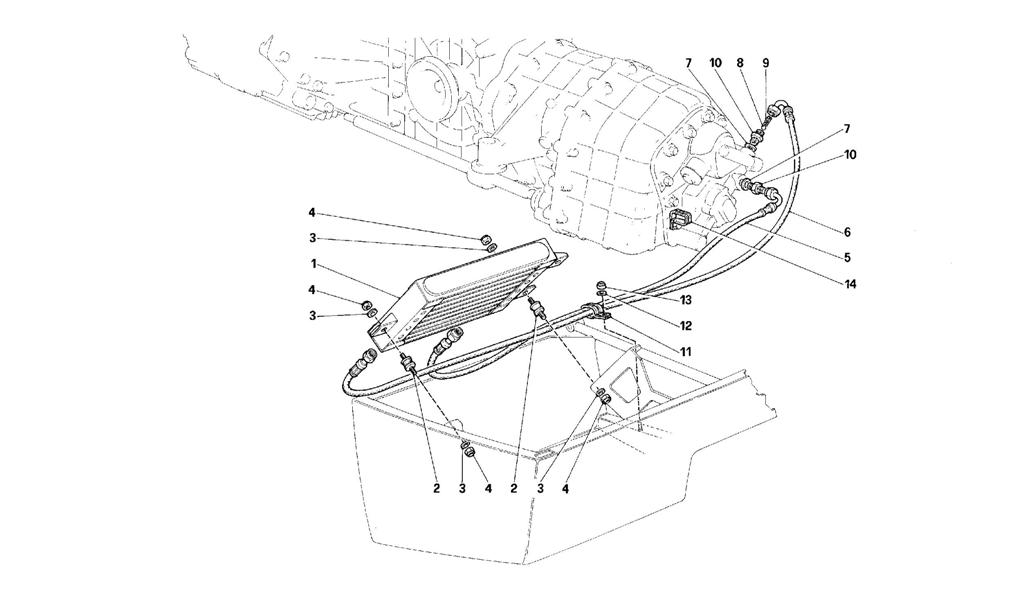

GEAR LUBRICATION
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 134880 | 1 | Oil radiator | $1,414.89 | |
| 2 | 102947 | 3 | Plug | $20.69 | |
| 3 | 12643724 | 6 | Washer | Superseded | |
| 4 | 102741 | 6 | Nut | $0.90 | |
| 5 | 134990 | 1 | Pipe | Unavailable | |
| 6 | 134989 | 1 | Pipe | Unavailable | |
| 7 | 10257060 | 2 | Gasket | $0.90 | |
| 8 | 135770 | 1 | Ball | Unavailable | |
| 9 | 135771 | 1 | Spring | $4.99 | |
| 10 | 134988 | 2 | Union | $483.12 | |
| 11 | 10441790 | 1 | Bracket | $0.95 | |
| 12 | 127494 | 1 | Washer | $0.90 | |
| 13 | 15896214 | 1 | Nut | Unavailable | |
| 14 | 10450690 | 1 | Bracket | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
