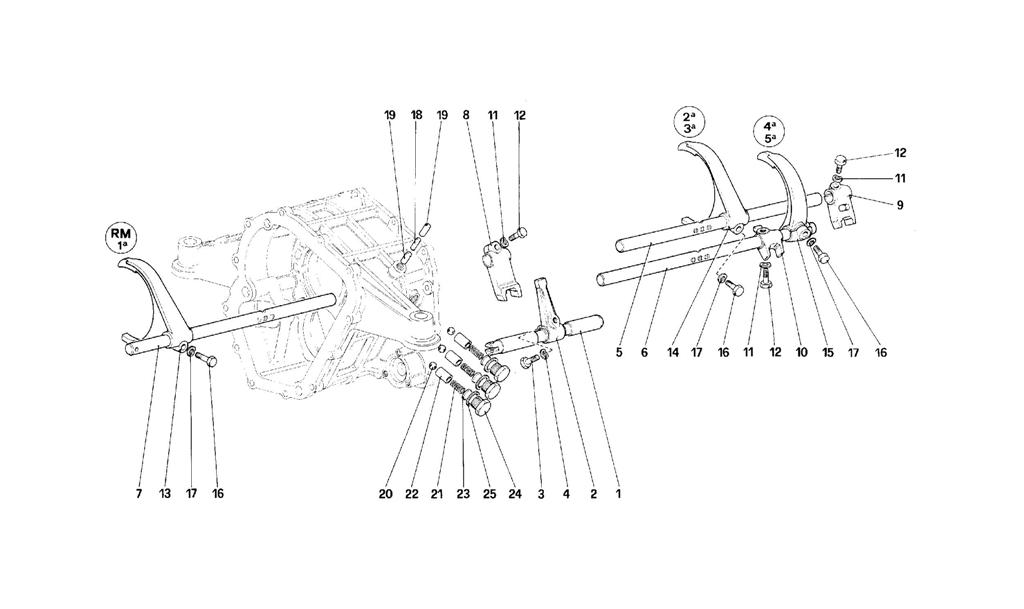

INSIDE GEARBOX CONTROLS

Go to Split View

INSIDE GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 133743 *Qty: 1 Control shaft $106.09
Location: 2 Prev | Next Part: 140744 *Qty: 1 Lever $390.33
Location: 3 Prev | Next Part: 133150 *Qty: 1 Screw $6.42
Location: 4 Prev | Next Part: 127498 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 128442 *Qty: 1 Control rod 2nd - 3rd speeds $128.61
Location: 6 Prev | Next Part: 128443 *Qty: 1 Control rod 4th-5th speeds $128.61
Location: 7 Prev | Next Part: 128444 *Qty: 1 Control rod 1st speed and rev. $128.61
Location: 8 Prev | Next Part: 121938 *Qty: 1 Control fork 1st speed and reverse $583.43
Location: 9 Prev | Next Part: 122633 *Qty: 1 Control fork 2nd and 3rd speeds $132.52
Location: 10 Prev | Next Part: 122634 *Qty: 1 Control fork for 4th and 5th speeds $262.28
Location: 11 Prev | Next Part: 127496 *Qty: 3 Washer $0.90
Location: 12 Prev | Next Part: 133154 *Qty: 3 Screw $4.07
Location: 13 Prev | Next Part: 133146 *Qty: 1 Fork 1st speed and reverse $765.31
Location: 14 Prev | Next Part: 133147 *Qty: 1 Fork 2nd - 3rd speeds $824.49
Location: 15 Prev | Next Part: 133148 *Qty: 1 Fork 4th - 5th speeds $2,690.75
Location: 16 Prev | Next Part: 133150 *Qty: 3 Screw $6.42
Location: 17 Prev | Next Part: 127498 *Qty: 3 Washer $0.90
Location: 18 Prev | Next Part: 104276 *Qty: 1 Stop roller central rod $8.09
Location: 19 Prev | Next Part: 103011 *Qty: 2 Stop roller Unavailable
Location: 20 Prev | Next Part: 101612 *Qty: 3 Ball $1.24
Location: 21 Prev | Next Part: 121805 *Qty: 3 Spring $2.04
Location: 22 Prev | Next Part: 115376 *Qty: 3 Bush $47.90
Location: 23 Prev | Next Part: 122122 *Qty: 3 Spacer $3.69
Location: 24 Prev | Next Part: 10300811 *Qty: 3 Plug $3.15
Location: 25 Prev | Next Part: 10263160 *Qty: 3 Gasket Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
