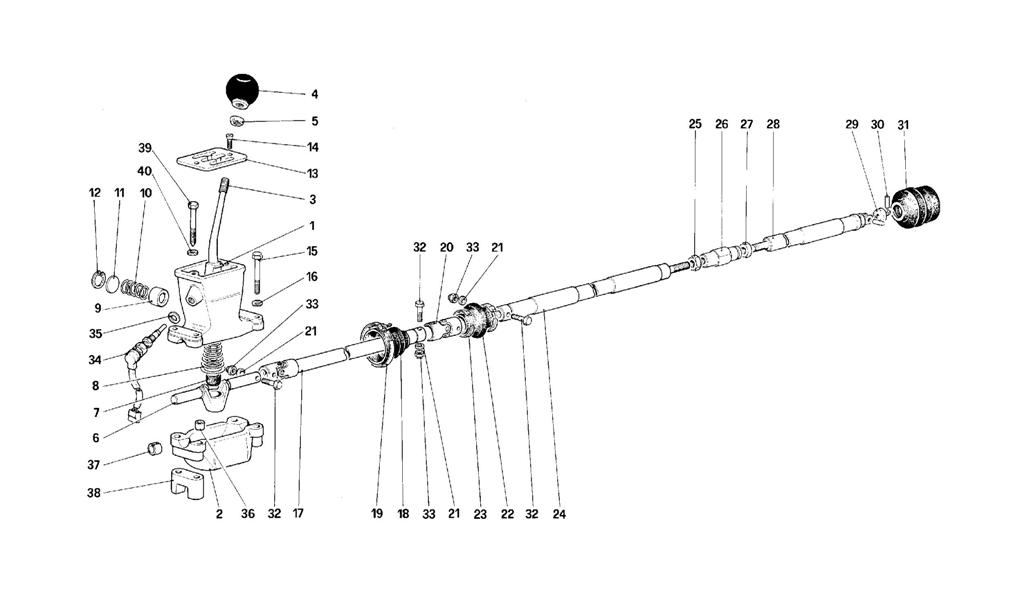

OUTSIDE GEARBOX CONTROLS

Go to Split View

OUTSIDE GEARBOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 135986 *Qty: 1 Gearbox casing, complete $1,026.03
Location: 1 Prev | Next Part: 133038 *Qty: 1 Gearbox casing -With assembly 135986 Call
Location: 2 Prev | Next Part: 133039 *Qty: 1 Lower cover -With assembly 135986 Call
Location: 3 Prev | Next Part: 124598 *Qty: 1 Gearbox lever $639.40
Location: 4 Prev | Next Part: 103301 *Qty: 1 Knob for gearshift lever $226.25
Location: 5 Prev | Next Part: 108010 *Qty: 1 Locknut $28.56
Location: 6 Prev | Next Part: 119887 *Qty: 1 Pin with joint seat $313.13
Location: 7 Prev | Next Part: 127446 *Qty: 1 Ball joint seat $26.29
Location: 8 Prev | Next Part: 115340 *Qty: 1 Spring $3.57
Location: 9 Prev | Next Part: 108824 *Qty: 1 Lever push rod $59.70
Location: 10 Prev | Next Part: 147790 *Qty: 1 Spring $31.42
Location: 11 Prev | Next Part: 103319 *Qty: 1 Disc for spring Call
Location: 12 Prev | Next Part: 103326 *Qty: 1 Seeger ring $0.90
Location: 13 Prev | Next Part: 148452 *Qty: 1 Speed selector $797.66
Location: 14 Prev | Next Part: 101619 *Qty: 2 Screw $10.89
Location: 15 Prev | Next Part: 16136621 *Qty: 2 Screw $1.74
Location: 16 Prev | Next Part: 12601379 *Qty: 2 Washer Superseded
Location: 17 Prev | Next Part: 122156 *Qty: 1 Front control rod $253.56
Location: 18 Prev | Next Part: 106687 *Qty: 1 Bellows $7.73
Location: 19 Prev | Next Part: 10291490 *Qty: 1 Clamp $1.74
Location: 20 Prev | Next Part: 122160 *Qty: 1 Ball joint $141.11
Location: 21 Prev | Next Part: 125516 *Qty: 3 Washer $5.40
Location: 22 Prev | Next Part: 122166 *Qty: 1 Bellows $37.17
Location: 23 Prev | Next Part: 14560187 *Qty: 2 Clamp $0.90
Location: 24 Prev | Next Part: 122161 *Qty: 1 Central control rod $997.68
Location: 25 Prev | Next Part: 16103621 *Qty: 1 Locknut (threaded insert, R.H) $0.90
Location: 26 Prev | Next Part: 122164 *Qty: 1 Tie rod $98.27
Location: 27 Prev | Next Part: 16103721 *Qty: 1 Locknut (threaded insert, L.H) $4.42
Location: 28 Prev | Next Part: 122165 *Qty: 1 Rear control rod $498.46
Location: 29 Prev | Next Part: 122120 *Qty: 1 Joint $73.89
Location: 30 Prev | Next Part: 13940070 *Qty: 2 Pin $0.90
Location: 31 Prev | Next Part: 124593 *Qty: 1 Bellows $76.09
Location: 32 Prev | Next Part: 125515 *Qty: 3 Screw $16.67
Location: 33 Prev | Next Part: 102948 *Qty: 3 Nut $0.90
Location: 34 Prev | Next Part: 115980 *Qty: 1 Reverse switch $58.62
Location: 35 Prev | Next Part: 12601579 *Qty: 1 Washer Superseded
Location: 36 Prev | Next Part: 100041 *Qty: 2 Dowel $8.15
Location: 37 Prev | Next Part: 133037 *Qty: 2 Bushing $58.44
Location: 38 Prev | Next Part: 135996 *Qty: 1 Spacer $68.73
Location: 39 Prev | Next Part: 16137321 *Qty: 2 Screw $1.24
Location: 40 Prev | Next Part: 12601379 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
