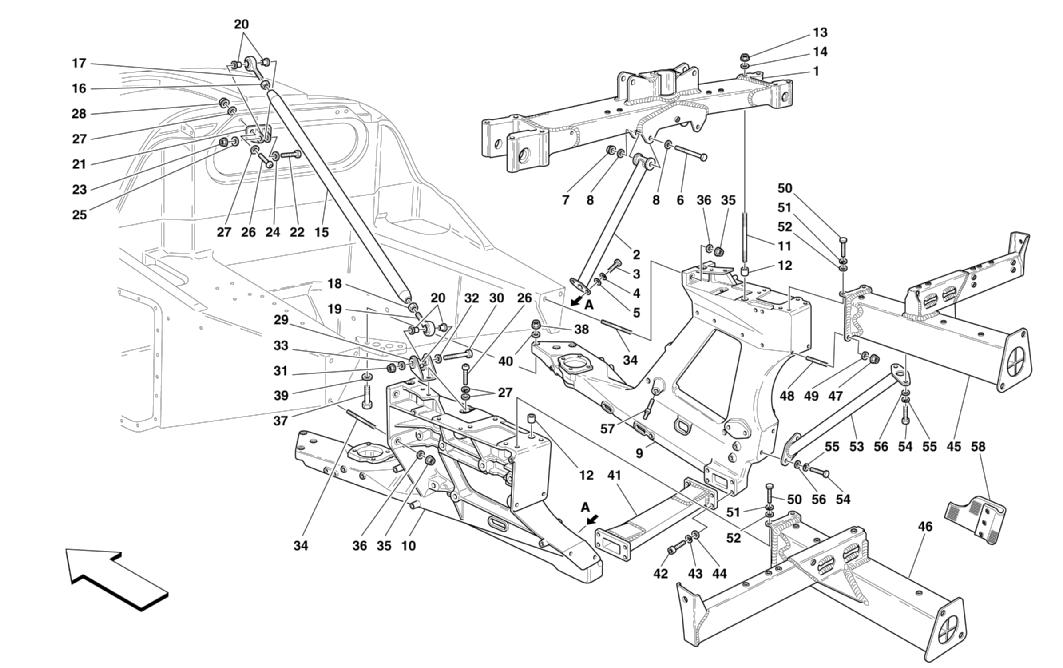

REAR FRAME

Go to Split View

REAR FRAME

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66761700 *Qty: 1 UPPER CROSS MEMBER $4,969.85
Location: 2 Prev | Next Part: 66846800 *Qty: 1 R.H. TRANSVERSE SPRAG $431.43
Location: 2 Prev | Next Part: 66846900 *Qty: 1 L.H. TRANSVERSE SPRAG $431.43
Location: 3 Prev | Next Part: 16043424 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 16044524 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 177778 *Qty: 2 NUT $1.60
Location: 8 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 186312 *Qty: 1 R.H. FUSION FOR SUSPENSION CONNECTION $10,707.21
Location: 10 Prev | Next Part: 186313 *Qty: 1 L.H. FUSION FOR SUSPENSION CONNECTION $10,707.21
Location: 11 Prev | Next Part: 13547724 *Qty: 8 STUD $10.09
Location: 12 Prev | Next Part: 160971 *Qty: 2 CENTERING DOWEL $63.41
Location: 13 Prev | Next Part: 133216 *Qty: 8 NUT $8.65
Location: 14 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 15 Prev | Next Part: 67370700 *Qty: 2 SPRAG $889.65
Location: 16 Prev | Next Part: 10717377 *Qty: 2 NUT Call
Location: 17 Prev | Next Part: 148768 *Qty: 2 BALL JOINT $187.98
Location: 18 Prev | Next Part: 67592600 *Qty: 2 L.H. THREADED NUT Call
Location: 19 Prev | Next Part: 148769 *Qty: 2 BALL JOINT $147.32
Location: 20 Prev | Next Part: 66649100 *Qty: 8 BUSHING $5.89
Location: 21 Prev | Next Part: 66650600 *Qty: 2 FORK CONNECTION SPRAG $560.63
Location: 22 Prev | Next Part: 66650700 *Qty: 2 SCREW Call
Location: 23 Prev | Next Part: 133216 *Qty: 2 NUT $8.65
Location: 24 Prev | Next Part: 14496624 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 12638624 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 67254400 *Qty: 8 SCREW $1.74
Location: 27 Prev | Next Part: 12638578 *Qty: 12 WASHER $0.90
Location: 28 Prev | Next Part: 177778 *Qty: 4 NUT $1.60
Location: 29 Prev | Next Part: 66647200 *Qty: 2 COMPLETE FORK CONNECTION SPRAG $126.36
Location: 30 Prev | Next Part: 66649300 *Qty: 2 SCREW $3.21
Location: 31 Prev | Next Part: 133216 *Qty: 2 NUT $8.65
Location: 32 Prev | Next Part: 14496624 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12638624 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 13546635 *Qty: 6 STUD $4.70
Location: 35 Prev | Next Part: 133216 *Qty: 6 NUT $8.65
Location: 36 Prev | Next Part: 12638624 *Qty: 6 WASHER $0.90
Location: 37 Prev | Next Part: 15541124 *Qty: 6 SCREW $0.97
Location: 38 Prev | Next Part: 191959 *Qty: 6 NUT $32.44
Location: 39 Prev | Next Part: 14496724 *Qty: 6 WASHER $0.90
Location: 40 Prev | Next Part: 14499624 *Qty: 6 WASHER $0.90
Location: 41 Prev | Next Part: 67089600 *Qty: 1 LOWER CROSS MEMBER $1,925.95
Location: 42 Prev | Next Part: 14306374 *Qty: 8 SCREW $0.90
Location: 43 Prev | Next Part: 14499421 *Qty: 8 WASHER $0.90
Location: 44 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 45 Prev | Next Part: 66586800 *Qty: 1 R.H. REAR FRAME $3,381.96
Location: 46 Prev | Next Part: 66586700 *Qty: 1 L.H. REAR FRAME $3,381.96
Location: 47 Prev | Next Part: 177778 *Qty: 4 NUT $1.60
Location: 48 Prev | Next Part: 13543324 *Qty: 4 STUD $3.53
Location: 49 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 50 Prev | Next Part: 16043624 *Qty: 4 SCREW $0.90
Location: 51 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 52 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 53 Prev | Next Part: 66847500 *Qty: 1 L.H. LONGITUDINAL SPRAG $436.86
Location: 53 Prev | Next Part: 66847400 *Qty: 1 R.H. LONGITUDINAL SPRAG $408.29
Location: 54 Prev | Next Part: 16043424 *Qty: 8 SCREW $0.90
Location: 55 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 56 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 57 Prev | Next Part: 191481 *Qty: 2 STUD $56.48
Location: 58 Prev | Next Part: 204065 *Qty: 1 SHIELD $140.63

* Quantity shown indicates the number of pieces used in the diagram.
