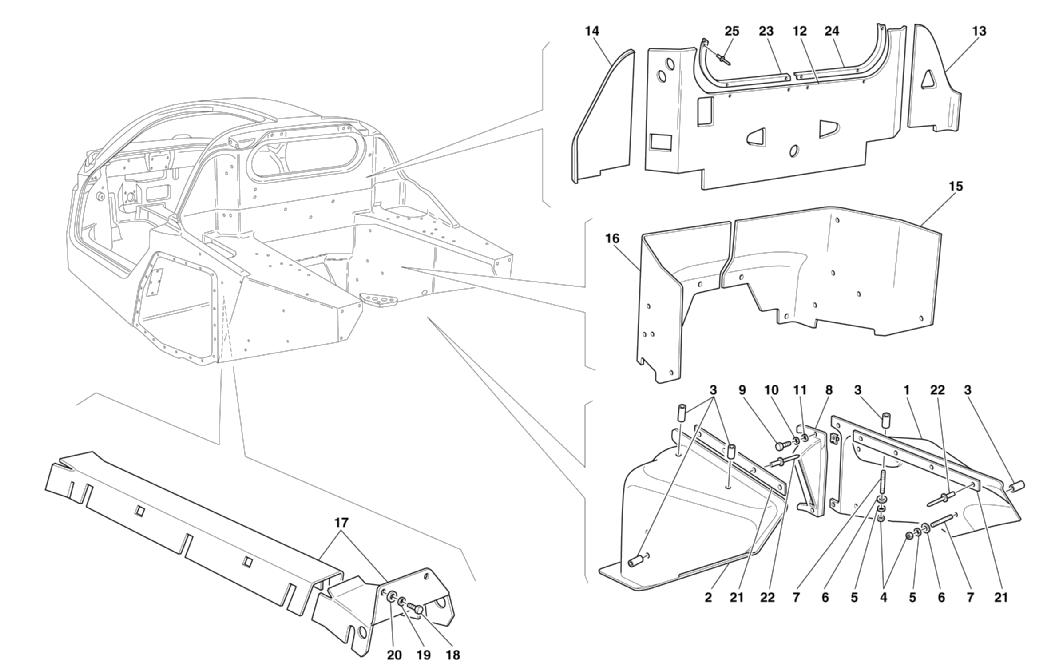

HEAT SHIELDS AND INSULATIONS

Go to Split View

HEAT SHIELDS AND INSULATIONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67252200 *Qty: 1 R.H. HEAT SHIELD $669.94
Location: 2 Prev | Next Part: 67252300 *Qty: 1 L.H. HEAT SHIELD $111.64
Location: 3 Prev | Next Part: 170660 *Qty: 8 SPACER $9.59
Location: 4 Prev | Next Part: 15896224 *Qty: 8 NUT $0.90
Location: 5 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: 12643724 *Qty: 8 WASHER Superseded
Location: 7 Prev | Next Part: 13541924 *Qty: 8 STUD $1.58
Location: 8 Prev | Next Part: 67288800 *Qty: 1 AIR CONVEYOR Call
Location: 9 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 67252000 *Qty: 1 CENTRAL UPPER INSULATION SHIELD $1,146.84
Location: 13 Prev | Next Part: 67251800 *Qty: 1 R.H. UPPER INSULATION SHIELD $269.64
Location: 14 Prev | Next Part: 67251900 *Qty: 1 L.H. UPPER INSULATION SHIELD $269.64
Location: 15 Prev | Next Part: 67286700 *Qty: 1 R.H. LOWER INSULATION SHIELD $366.48
Location: 16 Prev | Next Part: 67286900 *Qty: 1 L.H. LOWER INSULATION SHIELD $319.22
Location: 17 Prev | Next Part: 67286600 *Qty: 1 TUNNEL INSULATION $1,255.99
Location: 18 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 21 Prev | Next Part: 67655300 *Qty: 2 SHIELD Call
Location: 22 Prev | Next Part: 104021 *Qty: 8 RIVET $0.90
Location: 23 Prev | Next Part: 67422700 *Qty: 1 L.H. ANGLE PIECE Call
Location: 24 Prev | Next Part: 67422800 *Qty: 1 R.H. ANGLE PIECE Call
Location: 25 Prev | Next Part: 14643890 *Qty: 6 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
