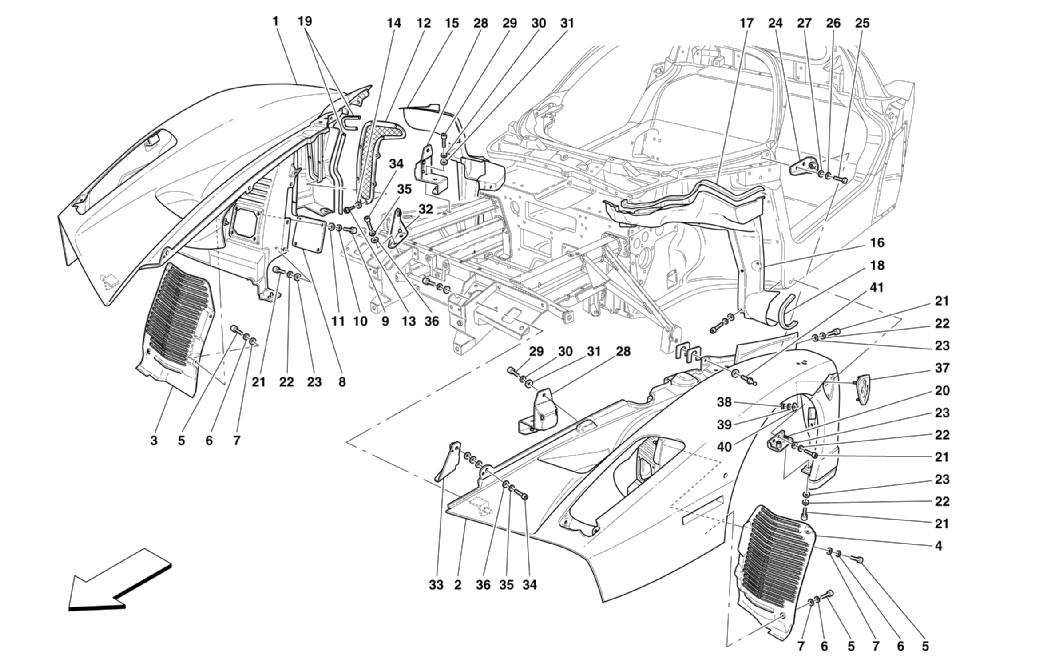

FRONT - OUTER TRIMS AND WHEELHOUSE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66534300 *Qty: 1 FRONT R.H. EXTERNAL TRIM $23,901.54
Location: 2 Prev | Next Part: 66531400 *Qty: 1 FRONT L.H. EXTERNAL TRIM $23,901.54
Location: 3 Prev | Next Part: 66642500 *Qty: 1 R.H. COVER FOR HEADLIGHT INSPECTION $338.62
Location: 4 Prev | Next Part: 66642600 *Qty: 1 L.H. COVER FOR HEADLIGHT INSPECTION $338.62
Location: 5 Prev | Next Part: 14433124 *Qty: 8 SCREW $0.90
Location: 6 Prev | Next Part: 14498804 *Qty: 8 WASHER Superseded
Location: 7 Prev | Next Part: 12620474 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 67194300 *Qty: 2 COVER FOR SLEEVES INSPECTION $70.52
Location: 9 Prev | Next Part: 10979424 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 14498801 *Qty: 8 WASHER $0.90
Location: 12 Prev | Next Part: 66925100 *Qty: 1 L.H. GRILL $485.53
Location: 12 Prev | Next Part: 66925000 *Qty: 1 R.H. GRILL $485.53
Location: 13 Prev | Next Part: 65366700 *Qty: 16 SCREW $1.07
Location: 14 Prev | Next Part: 166467 *Qty: 16 WASHER $1.04
Location: 15 Prev | Next Part: 66579300 *Qty: 1 R.H. FRONT WHEELHOUSE $743.55
Location: 16 Prev | Next Part: 66579200 *Qty: 1 L.H. FRONT WHEELHOUSE $743.55
Location: 17 Prev | Next Part: 66579400 *Qty: 2 GASKET $3.69
Location: 18 Prev | Next Part: 66644000 *Qty: 2 LOWER GASKET $4.23
Location: 19 Prev | Next Part: 67287100 *Qty: 2 PILLAR STRIP GASKET $24.44
Location: 20 Prev | Next Part: 66655000 *Qty: 2 LOWER BRACKET $138.44
Location: 21 Prev | Next Part: 14305287 *Qty: 10 SCREW Call
Location: 22 Prev | Next Part: 12620474 *Qty: 10 WASHER $0.90
Location: 23 Prev | Next Part: 14498804 *Qty: 10 WASHER Superseded
Location: 24 Prev | Next Part: 66755700 *Qty: 1 L.H. UPPER BRACKET $622.92
Location: 24 Prev | Next Part: 66755600 *Qty: 1 R.H. UPPER BRACKET $623.04
Location: 25 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 26 Prev | Next Part: 12620474 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 67250500 *Qty: 2 BRACKET $207.77
Location: 29 Prev | Next Part: 14433124 *Qty: 6 SCREW $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90
Location: 31 Prev | Next Part: 12620474 *Qty: 6 WASHER $0.90
Location: 32 Prev | Next Part: 67193100 *Qty: 1 R.H. FRONT BRACKET $106.01
Location: 33 Prev | Next Part: 67193200 *Qty: 1 L.H. FRONT BRACKET $106.01
Location: 34 Prev | Next Part: 14433124 *Qty: 6 SCREW $0.90
Location: 35 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90
Location: 36 Prev | Next Part: 12620474 *Qty: 6 WASHER $0.90
Location: 37 Prev | Next Part: 67417400 *Qty: 2 SQUADRA CORSE SMALL SHIELD $626.79
Location: 38 Prev | Next Part: 16101711 *Qty: 6 NUT $0.90
Location: 39 Prev | Next Part: 12034470 *Qty: 6 WASHER $0.90
Location: 40 Prev | Next Part: 12642878 *Qty: 6 WASHER $0.90
Location: 41 Prev | Next Part: 65939900 *Qty: 2 PIN $3.49

* Quantity shown indicates the number of pieces used in the diagram.
