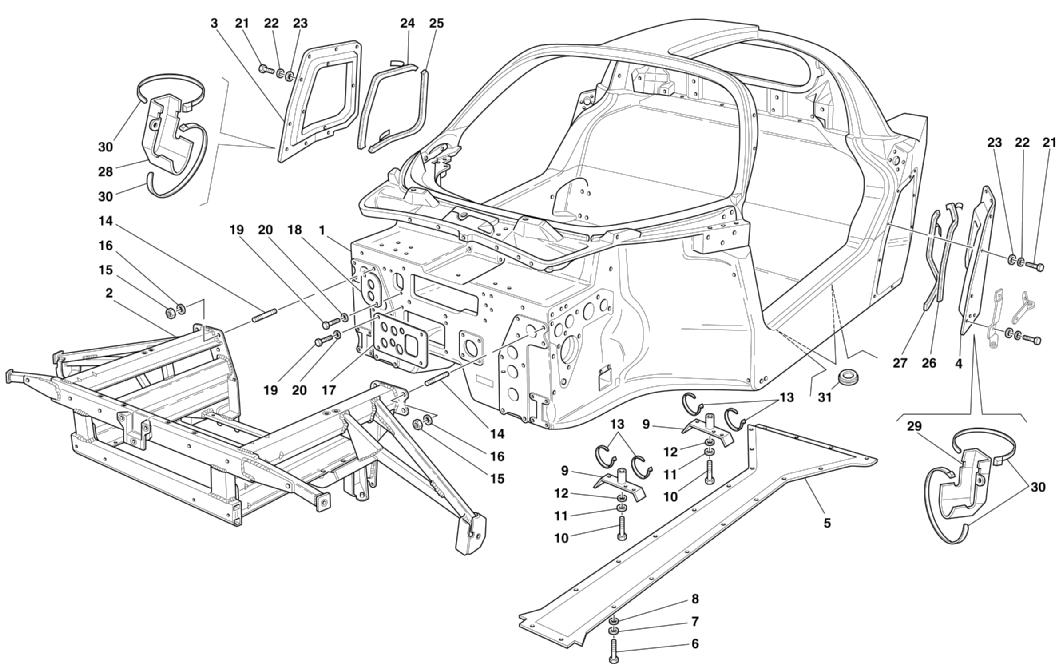

MONOCOQUE BODY FRAME - FRONT FRAME - CENTRAL FLAT FLOOR PAN

Go to Split View

MONOCOQUE BODY FRAME - FRONT FRAME - CENTRAL FLAT FLOOR PAN

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66535400 *Qty: 1 COMPLETE FRAME Call
Location: 2 Prev | Next Part: 66486900 *Qty: 1 FRONT FRAME Call
Location: 3 Prev | Next Part: 189795 *Qty: 1 R.H. COVER FIXING FUEL TANK $524.36
Location: 4 Prev | Next Part: 189796 *Qty: 1 L.H. COVER FIXING FUEL TANK $524.36
Location: 5 Prev | Next Part: 66534000 *Qty: 1 CENTRAL UNDER THE BODY SHELL SHIELD $4,955.34
Location: 6 Prev | Next Part: 10902224 *Qty: 16 SCREW $0.90
Location: 7 Prev | Next Part: 14498804 *Qty: 16 WASHER Superseded
Location: 8 Prev | Next Part: 12620474 *Qty: 16 WASHER $0.90
Location: 9 Prev | Next Part: 185664 *Qty: 2 BRACKET FOR ELECTRICAL SYSTEM FIXING $107.27
Location: 10 Prev | Next Part: 10903224 *Qty: 2 SCREW Superseded
Location: 11 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 12 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 145854 *Qty: 4 CLAMP $0.90
Location: 14 Prev | Next Part: 13543324 *Qty: 16 STUD $3.53
Location: 15 Prev | Next Part: 177778 *Qty: 16 NUT $1.60
Location: 16 Prev | Next Part: 12638524 *Qty: 16 WASHER $0.90
Location: 17 Prev | Next Part: 67113500 *Qty: 1 PLATE FOR HEATER CABLE BUSHING Call
Location: 18 Prev | Next Part: 67113600 *Qty: 1 PLATE FOR CABLE BUSHING Call
Location: 19 Prev | Next Part: 10902424 *Qty: 6 SCREW $0.90
Location: 20 Prev | Next Part: 14498801 *Qty: 6 WASHER $0.90
Location: 21 Prev | Next Part: 10902424 *Qty: 24 SCREW $0.90
Location: 22 Prev | Next Part: 10523424 *Qty: 24 WASHER $0.90
Location: 23 Prev | Next Part: 127494 *Qty: 24 WASHER $0.90
Location: 24 Prev | Next Part: 192956 *Qty: 1 R.H. UPPER RUBBER THICKNESS $20.42
Location: 25 Prev | Next Part: 192957 *Qty: 1 R.H. LOWER RUBBER THICKNESS $20.42
Location: 26 Prev | Next Part: 192955 *Qty: 1 L.H. UPPER RUBBER THICKNESS $17.02
Location: 27 Prev | Next Part: 192954 *Qty: 1 L.H. LOWER RUBBER THICKNESS $10.20
Location: 28 Prev | Next Part: 191990 *Qty: 1 R.H. CONTOUR $647.96
Location: 29 Prev | Next Part: 191991 *Qty: 1 L.H. CONTOUR $647.96
Location: 30 Prev | Next Part: 145854 *Qty: 4 CLAMP $0.90
Location: 31 Prev | Next Part: 14507787 *Qty: 4 PLUG $0.90

* Quantity shown indicates the number of pieces used in the diagram.
