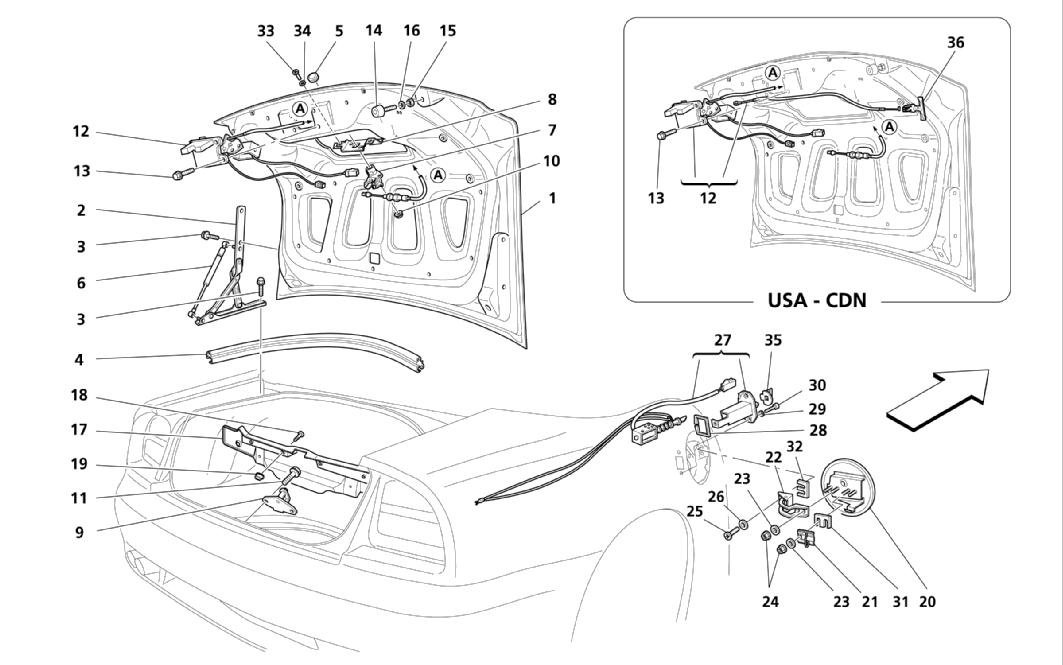

TRUNK HOOD BONNET AND GAS DOOR

Go to Split View

TRUNK HOOD BONNET AND GAS DOOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66376100 *Qty: 1 COMPLETE REAR DOOR
- Optional - Telephone - Not for USA, CDN and J
$2,484.72
Location: 1 Prev | Next Part: 66071100 *Qty: 1 COMPLETE REAR DOOR
- Standard - Not for USA and CDN
$4,449.76
Location: 1 Prev | Next Part: 66729100 *Qty: 1 COMPLETE REAR DOOR
- Valid for USA and CDN
$5,193.76
Location: 2 Prev | Next Part: 384700105 *Qty: 1 L.H. HINGE $99.73
Location: 2 Prev | Next Part: 384700106 *Qty: 1 R.H. HINGE $99.73
Location: 3 Prev | Next Part: 82448954 *Qty: 10 SCREW $7.59
Location: 4 Prev | Next Part: 66313500 *Qty: 1 GASKET FOR TRUNK HOOD $49.16
Location: 5 Prev | Next Part: 82484271 *Qty: 1 GASKET $0.95
Location: 6 Prev | Next Part: 384700118 *Qty: 2 GAS SPRING $80.75
Location: 7 Prev | Next Part: 82484270 *Qty: 1 TRUNK HOOD OPENING CONTROL $14.49
Location: 8 Prev | Next Part: 384700127 *Qty: 1 BRACKET $15.79
Location: 9 Prev | Next Part: 82487413 *Qty: 1 BOOT LOCK STRIKER $6.64
Location: 10 Prev | Next Part: 13046114 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 10704324 *Qty: 2 SCREW $3.02
Location: 12 Prev | Next Part: 384700125 *Qty: 1 COMPLETE BOOT LOCK-BOWDEN CABLE
- Not for USA and CDN
$376.16
Location: 12 Prev | Next Part: 66914200 *Qty: 1 COMPLETE BOOT LOCK-BOWDEN CABLE
- Valid for USA and CDN - Valid till car Ass. Nr. 9930
$156.00
Location: 12 Prev | Next Part: 67554600 *Qty: 1 COMPLETE BOOT LOCK-BOWDEN CABLE
- Valid for USA and CDN - Valid from car Ass. Nr. 9931
$427.92
Location: 13 Prev | Next Part: 10704324 *Qty: 4 SCREW $3.02
Location: 14 Prev | Next Part: 60616619 *Qty: 2 FLEXIBLE PAD $4.40
Location: 15 Prev | Next Part: 16102311 *Qty: 2 NUT Superseded
Location: 16 Prev | Next Part: 11182277 *Qty: 2 WASHER $1.29
Location: 17 Prev | Next Part: 66244100 *Qty: 1 REAR TRIM $76.09
Location: 18 Prev | Next Part: 15783507 *Qty: 8 SCREW $0.90
Location: 19 Prev | Next Part: 7754387 *Qty: 8 BLOCK FOR SELF TAPPING SCREW $0.90
Location: 20 Prev | Next Part: 980001043 *Qty: 1 FUEL INLET LID $128.89
Location: 21 Prev | Next Part: 66057300 *Qty: 1 WIRE ROD $18.01
Location: 22 Prev | Next Part: 382500201 *Qty: 1 HINGE FOR GAS UNION DOOOR $88.52
Location: 23 Prev | Next Part: 12638104 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 14075611 *Qty: 4 NUT $1.81
Location: 25 Prev | Next Part: 13283214 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 10519304 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 66241700 *Qty: 1 COMPLETO ELECTRO-MAGNET $59.60
Location: 28 Prev | Next Part: 66240200 *Qty: 1 GASKET $1.21
Location: 29 Prev | Next Part: 10519304 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 13283214 *Qty: 2 SCREW $0.90
Location: 31 Prev | Next Part: 382500554 *Qty: 2 ADJUSTING PLATE $3.19
Location: 32 Prev | Next Part: 66919100 *Qty: 1 SHIMMING PLATE $2.07
Location: 33 Prev | Next Part: 13283514 *Qty: 2 SCREW $2.33
Location: 34 Prev | Next Part: 12642801 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 388100355 *Qty: 1 RUBBER $8.71
Location: 36 Prev | Next Part: 66728800 *Qty: 1 HANDLE
- Valid for USA and CDN
$27.78

* Quantity shown indicates the number of pieces used in the diagram.
