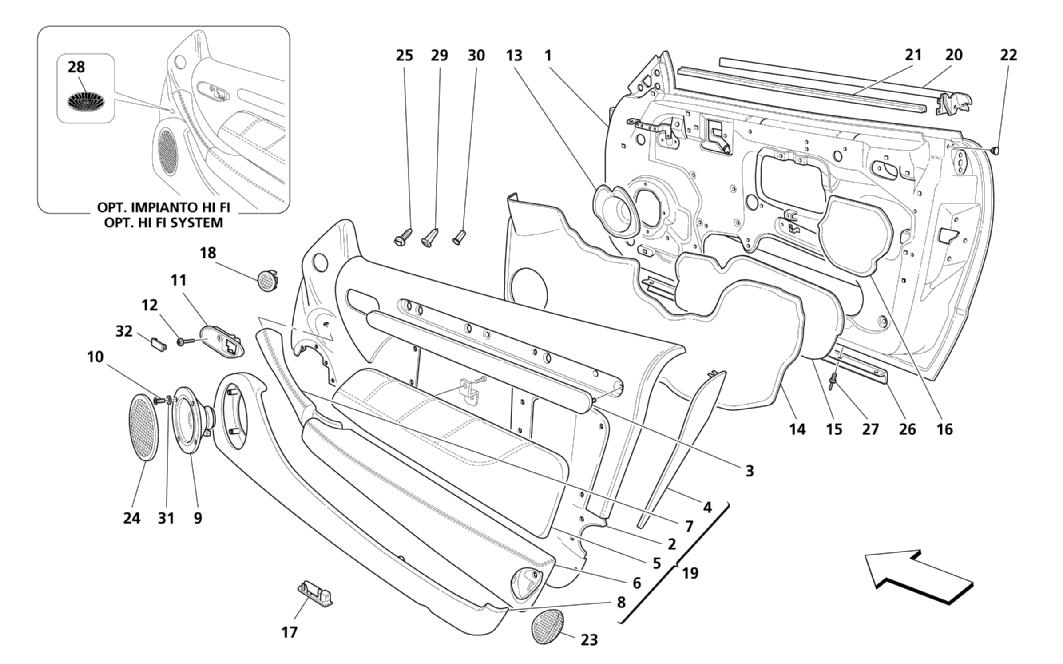

DOORS - FRAMEWORK AND COVERINGS

Go to Split View

DOORS - FRAMEWORK AND COVERINGS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980001038 *Qty: 1 COMPLETE R.H. DOOR $4,206.16
Location: 1 Prev | Next Part: 980001037 *Qty: 1 COMPLETE L.H. DOOR $4,206.16
Location: 2 Prev | Next Part: 667741.. *Qty: 1 L.H. DOOR PANEL UPHOLSTERED
- For order specify car number
Call
Location: 2 Prev | Next Part: 667740.. *Qty: 1 R.H. DOOR PANEL UPHOLSTERED
- For order specify car number
Call
Location: 3 Prev | Next Part: 67027600 *Qty: 1 R.H. DOOR MOULDING
- Optional - Carbon
$576.25
Location: 3 Prev | Next Part: 66112700 *Qty: 1 R.H. DOOR MOULDING
- Standard
$85.07
Location: 3 Prev | Next Part: 67027900 *Qty: 1 L.H. DOOR MOULDING
- Optional - Brier
$460.71
Location: 3 Prev | Next Part: 66112800 *Qty: 1 L.H. DOOR MOULDING
- Standard
$85.07
Location: 3 Prev | Next Part: 67027700 *Qty: 1 L.H. DOOR MOULDING
- Optional - Carbon
$548.71
Location: 3 Prev | Next Part: 67027800 *Qty: 1 R.H. DOOR MOULDING
- Optional - Brier
$419.30
Location: 4 Prev | Next Part: 663684.. *Qty: 1 L.H. UPHOLSTERED TERMINAL PLUG
- For order specify car number
Call
Location: 4 Prev | Next Part: 663683.. *Qty: 1 R.H. UPHOLSTERED TERMINAL PLUG
- For order specify car number
Call
Location: 5 Prev | Next Part: 663682.. *Qty: 1 L.H. DOOR SIDE- BAG COVER
- For order specify car number
Call
Location: 5 Prev | Next Part: 663681.. *Qty: 1 R.H. DOOR SIDE-BAG COVER
- For order specify car number
Call
Location: 6 Prev | Next Part: 663680.. *Qty: 1 L.H. ARM REST DOOR
- For order specify car number
Call
Location: 6 Prev | Next Part: 663679.. *Qty: 1 R.H. ARM REST DOOR
- For order specify car number
Call
Location: 7 Prev | Next Part: 667746.. *Qty: 1 L.H. UPHOLSTERED HANDLE MOULDING
- For order specify car number
Call
Location: 7 Prev | Next Part: 667744.. *Qty: 1 R.H. UPHOLSTERED HANDLE MOULDING
- For order specify car number
Call
Location: 8 Prev | Next Part: 667743.. *Qty: 1 L.H. POCKET UPHOLSTERED
- For order specify car number
Call
Location: 8 Prev | Next Part: 667742.. *Qty: 1 R.H. POCKET UPHOLSTERED
- For order specify car number
Call
Location: 9 Prev | Next Part: 189389 *Qty: 2 LOUD SPEAKER WOOFER
- Standard
$114.33
Location: 9 Prev | Next Part: 189390 *Qty: 2 LOUD SPEAKER WOOFER
- Optional - HI FI system
$83.47
Location: 10 Prev | Next Part: 13274014 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 66112900 *Qty: 1 R.H. HANDLE PLATE Call
Location: 11 Prev | Next Part: 66113000 *Qty: 1 L.H. HANDLE PLATE Call
Location: 12 Prev | Next Part: 15689907 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 66661100 *Qty: 1 WATER SHIELD FOR L.H. LOUD SPEAKER $21.74
Location: 13 Prev | Next Part: 66661200 *Qty: 1 WATER SHIELD FOR R.H. LOUD SPEAKER $20.88
Location: 14 Prev | Next Part: 66420200 *Qty: 1 WATER SHIELD IN THE L.H. DOOR $23.29
Location: 14 Prev | Next Part: 66420100 *Qty: 1 WATER SHIELD IN THE R.H. DOOR $23.29
Location: 15 Prev | Next Part: 66661300 *Qty: 1 L.H. LOWER CENTRAL WATER FOR SHIELD $21.74
Location: 15 Prev | Next Part: 66661400 *Qty: 1 R.H. LOWER CENTRAL WATER FOR SHIELD $13.20
Location: 16 Prev | Next Part: 66661500 *Qty: 1 L.H. UPPER LATERAL WATER FOR SHIELD $41.58
Location: 16 Prev | Next Part: 66661600 *Qty: 1 R.H. UPPER LATERAL WATER FOR SHIELD $16.82
Location: 17 Prev | Next Part: 60608165 *Qty: 2 UNDER DOOR LAMP $8.54
Location: 18 Prev | Next Part: 185969 *Qty: 2 LOUD SPEAKER TWEETER
- Standard
$37.35
Location: 18 Prev | Next Part: 185970 *Qty: 2 LOUD SPEAKER TWEETER
- Optional - HI FI system
$59.67
Location: 19 Prev | Next Part: 667739.. *Qty: 1 COMPLETE L.H. DOOR PANEL UPHOLSTERED
- For order specify car number
Call
Location: 19 Prev | Next Part: 667738.. *Qty: 1 COMPLETE R.H. DOOR PANEL UPHOLSTERED
- For order specify car number
Call
Location: 20 Prev | Next Part: 387700324 *Qty: 1 R.H. OUTER GLASS SCRAPER GASKET $124.79
Location: 20 Prev | Next Part: 387700323 *Qty: 1 L.H. OUTER GLASS SCRAPER GASKET $124.79
Location: 21 Prev | Next Part: 67245400 *Qty: 2 L.H. INNER GLASS SCRAPER GASKET
- Valid after stock exhaustion of 67021400
$22.43
Location: 21 Prev | Next Part: 67021400 *Qty: 2 L.H. INNER GLASS SCRAPER GASKET
- Valid till stock exhaustion
$26.71
Location: 22 Prev | Next Part: 388300805 *Qty: 2 BUTTON $0.90
Location: 23 Prev | Next Part: 46427292 *Qty: 1 REFLECTOR FOR L.H. DOOR PANEL $10.01
Location: 23 Prev | Next Part: 46427291 *Qty: 1 REFLECTOR FOR R.H. DOOR PANEL $10.01
Location: 24 Prev | Next Part: 388300600 *Qty: 2 LOUD SPEAKER PLATE $6.21
Location: 25 Prev | Next Part: 66805100 *Qty: 6 PIN $0.90
Location: 26 Prev | Next Part: 384500441 *Qty: 2 UNDERDOOR GASKET $35.89
Location: 27 Prev | Next Part: 384500442 *Qty: 18 RIVET $0.90
Location: 28 Prev | Next Part: 388300398 *Qty: 2 PLATE
- Optional - HI FI system
$42.79
Location: 29 Prev | Next Part: 7745194 *Qty: 6 BUSHING $0.90
Location: 30 Prev | Next Part: 15180311 *Qty: 26 RIVET $1.29
Location: 31 Prev | Next Part: 12620374 *Qty: 8 WASHER $0.90
Location: 32 Prev | Next Part: 388300603 *Qty: 2 PLUG $40.72

* Quantity shown indicates the number of pieces used in the diagram.
