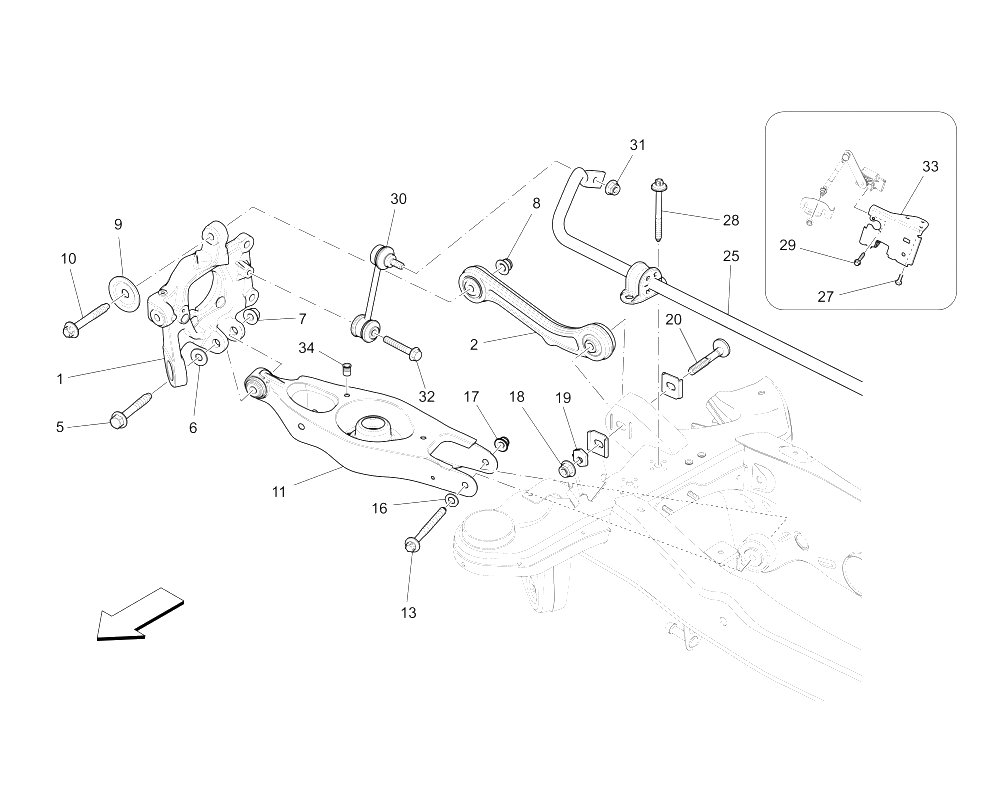

Rear Suspension - 1

Location Part # Quantity* Description Price Add To Cart
1 670035982 1 LH REAR HUB HOLDER ASSEMBLY - Dual Cast Braking System (Front - 345 mm);(Rear - 330 mm) - Coloured brake calipers $474.21
1 670035980 1 LH REAR HUB HOLDER ASSEMBLY - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM) $613.87
1 670036904 1 RH REAR HUB HOLDER ASSEMBLY - Dual Cast Braking System (Front - 345 mm);(Rear - 330 mm) - Coloured brake calipers $474.21
1 670036903 1 RH REAR HUB HOLDER ASSEMBLY - DUAL CAST BRAKING SYSTEM (FRONT - 360 MM) CAST-IRON (REAR - 345 MM) $613.87
2 670007252 2 REAR CAMBER ROD $209.50
5 675000147 2 SCREW $6.13
6 675000115 2 WASHER $4.67
7 675000148 2 NUT $3.11
9 670036902 2 WASHER $5.44
10 675000146 2 SCREW $6.90
11 670036580 2 REAR WISHBONE $344.29
13 670008337 2 SPECIAL SCREW $12.85
16 675000083 2 WASHER Unavailable
17 675000023 2 NUT Unavailable
18 670002807 2 NUT $3.53
19 675000333 2 WASHER $9.05
20 670002805 2 SCREW $12.85
25 670002678 1 REAR STABILIZER BAR $243.60
27 675000431 3 SCREW Unavailable
28 675000140 1 SCREW $2.33
29 675000197 2 SCREW $3.88
30 670002744 1 BALL TIE ROD $76.49
31 675000124 2 NUT Unavailable
32 675000056 1 SCREW $3.98
33 670036542 1 RH BRACKET $7.68
34 670007365 1 THREADED BUSHING $3.37

* Quantity shown indicates the number of pieces used in the diagram.
