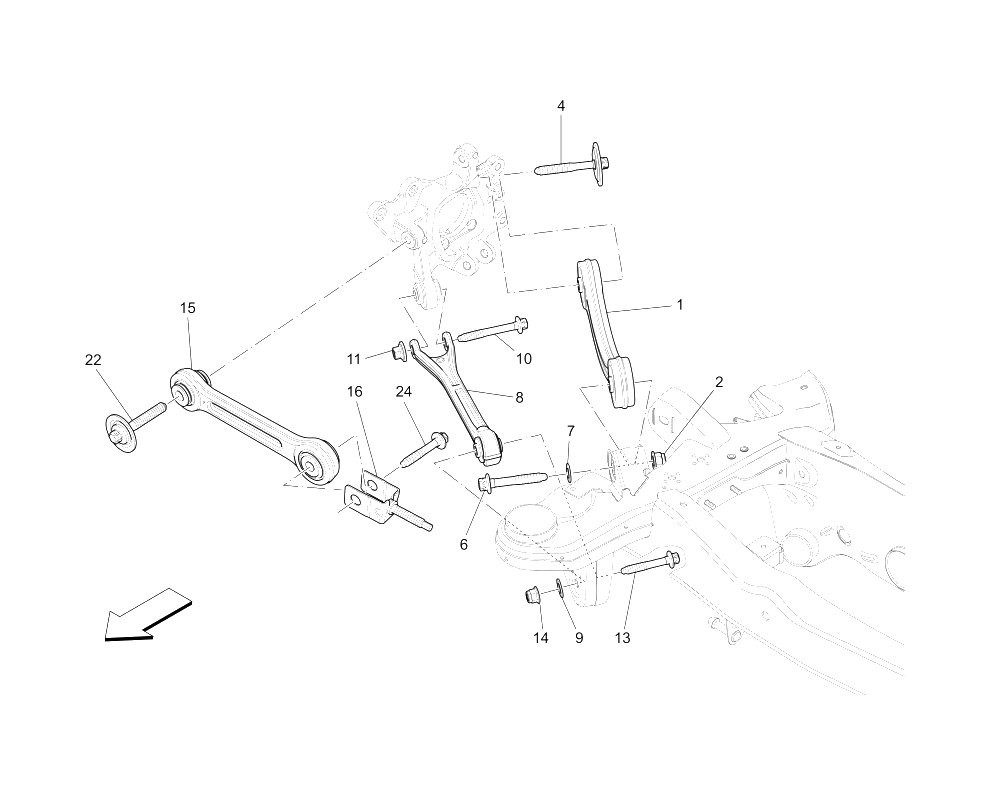

Rear Suspension - 2
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 670007251 | 2 | REAR WHEEL HUB TENSION BAR | $228.98 | |
| 4 | 670035567 | 2 | SPECIAL SCREW | $14.15 | |
| 6 | 670008335 | 2 | SPECIAL SCREW | $9.05 | |
| 7 | 675000105 | 2 | WASHER | Unavailable | |
| 8 | 670002808 | 2 | WISHBONE | $228.98 | |
| 9 | 675000083 | 2 | WASHER | Unavailable | |
| 10 | 670008336 | 2 | SCREW | $10.35 | |
| 11 | 675000127 | 2 | NUT | $2.60 | |
| 13 | 675000146 | 2 | SCREW | $6.90 | |
| 14 | 675000023 | 2 | NUT | Unavailable | |
| 15 | 670035978 | 2 | REAR TOE-IN ADJUSTMENT ROD | $227.77 | |
| 16 | 670006270 | 2 | BRACKET | $226.04 | |
| 22 | 670035575 | 2 | SCREW | $17.95 | |
| 24 | 670037236 | 2 | SCREW | $12.85 |
* Quantity shown indicates the number of pieces used in the diagram.
