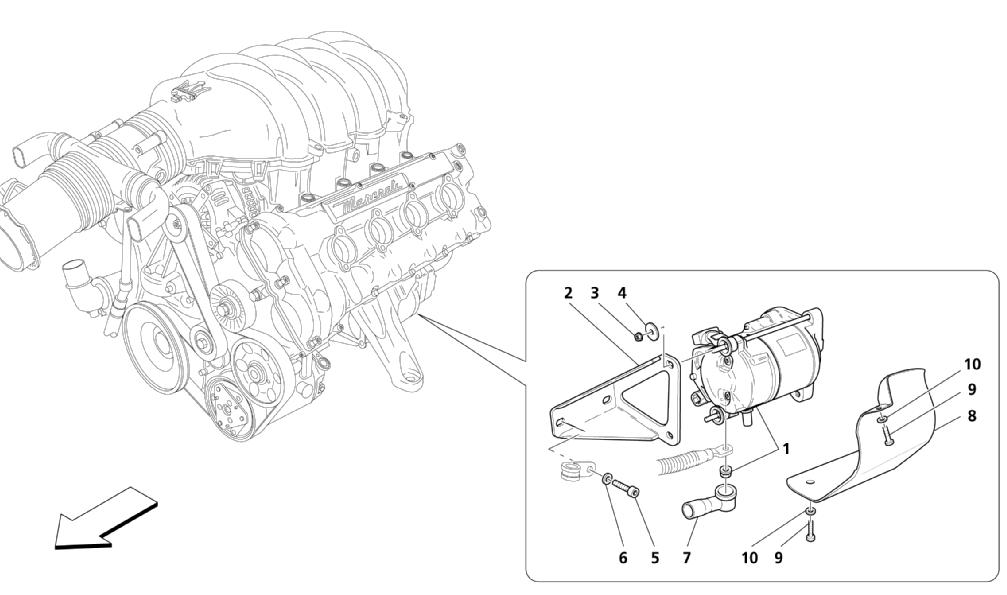

ELECTRONIC CONTROL: ENGINE STARTING

Go to Split View

ELECTRONIC CONTROL: ENGINE STARTING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 180169 *Qty: 1 STARTER MOTOR $526.14
Location: 2 Prev | Next Part: 184112 *Qty: 1 BRACKET $38.50
Location: 3 Prev | Next Part: 160472 *Qty: 2 NUT $2.62
Location: 4 Prev | Next Part: 61148700 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 6 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 7 Prev | Next Part: 124683 *Qty: 1 PROTECTION BOOT $0.90
Location: 8 Prev | Next Part: 203138 *Qty: 1 L.H. UNDER MOTOR SHIELD $201.14
Location: 9 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 12620474 *Qty: 3 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
