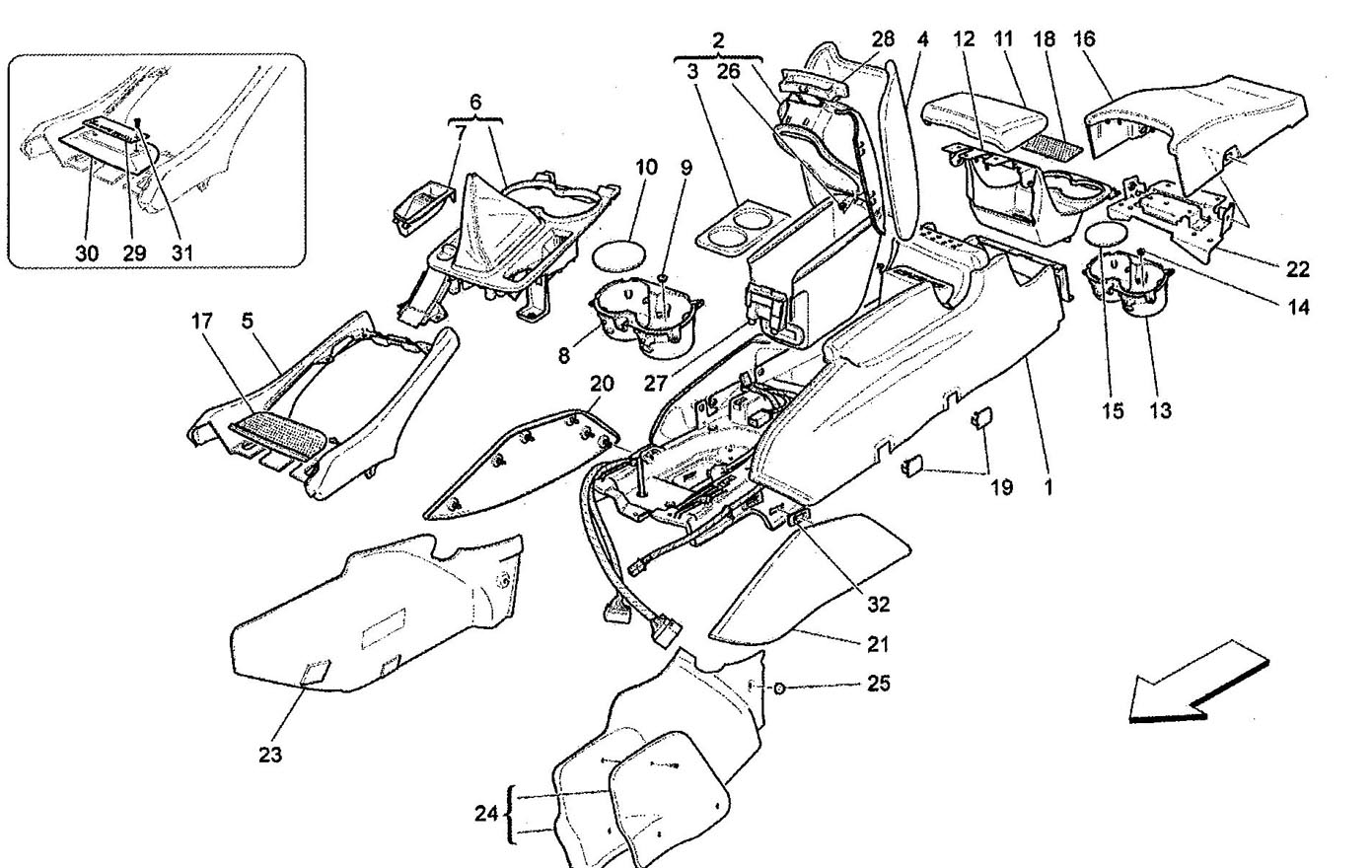

CENTER CONSOLE

Go to Split View

CENTER CONSOLE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9816032 *Qty: 1 Complete Tunnel Cover Structure Call
Location: 2 Prev | Next Part: 980145007 *Qty: 1 Complete Tunnel Cover Box $683.30
Location: 3 Prev | Next Part: 980139474 *Qty: 1 Carpet $60.74
Location: 4 Prev | Next Part: 9814328 *Qty: 1 Tunnel Cover Arm Rest Call
Location: 5 Prev | Next Part: 800073 *Qty: 1 Front Plate Call
Location: 6 Prev | Next Part: -0 *Qty: 1 Complete Central Plate Call
Location: 7 Prev | Next Part: 69290000 *Qty: 1 Ashtray Pan $29.56
Location: 8 Prev | Next Part: 69298000 *Qty: 1 Pan $33.13
Location: 9 Prev | Next Part: 68194000 *Qty: 2 Plug Call
Location: 10 Prev | Next Part: 69620300 *Qty: 2 Carpet $6.82
Location: 11 Prev | Next Part: 823536 *Qty: 1 Upper Rear Frame Call
Location: 12 Prev | Next Part: 980145008 *Qty: 1 Complete Rear Console Call
Location: 13 Prev | Next Part: 69298000 *Qty: 1 Pan $33.13
Location: 14 Prev | Next Part: 68194000 *Qty: 2 Plug Call
Location: 15 Prev | Next Part: 69620300 *Qty: 2 Carpet $6.82
Location: 16 Prev | Next Part: 684897 *Qty: 1 Complete Rear Console Cover Call
Location: 17 Prev | Next Part: 80008000 *Qty: 1 Front Carpet $13.20
Location: 18 Prev | Next Part: 69892000 *Qty: 1 Rear Carpet $13.20
Location: 19 Prev | Next Part: 9813076 *Qty: 6 Plug Call
Location: 20 Prev | Next Part: 698909 *Qty: 1 R.H. Front Lateral Panel Call
Location: 21 Prev | Next Part: 698908 *Qty: 1 L.H. Front Lateral Panel Call
Location: 22 Prev | Next Part: 69892300 *Qty: 1 Bracket Call
Location: 23 Prev | Next Part: 801824 *Qty: 1 R.H. Lateral Cover In The Tunnel Call
Location: 24 Prev | Next Part: 801825 *Qty: 1 L.H. Lateral Cover In The Tunnel Call
Location: 25 Prev | Next Part: 68190400 *Qty: 2 Cap For Screw $4.57
Location: 26 Prev | Next Part: 980139614 *Qty: 1 Clip $138.90
Location: 27 Prev | Next Part: 69299000 *Qty: 1 Block $51.25
Location: 28 Prev | Next Part: 980139670 *Qty: 1 Arm-Rest Handle Replacement Kit Call
Location: 29 Prev | Next Part: 940000022 *Qty: 1 Plate Silver Color Customized $462.43
Location: 29 Prev | Next Part: 940000024 *Qty: 1 Plate Numbered Customized $471.06
Location: 30 Prev | Next Part: 940000025 *Qty: 1 Support Call
Location: 31 Prev | Next Part: 940000023 *Qty: 1 Screws Couple $49.83
Location: 32 Prev | Next Part: 68700200 *Qty: 12 Clip Call

* Quantity shown indicates the number of pieces used in the diagram.
