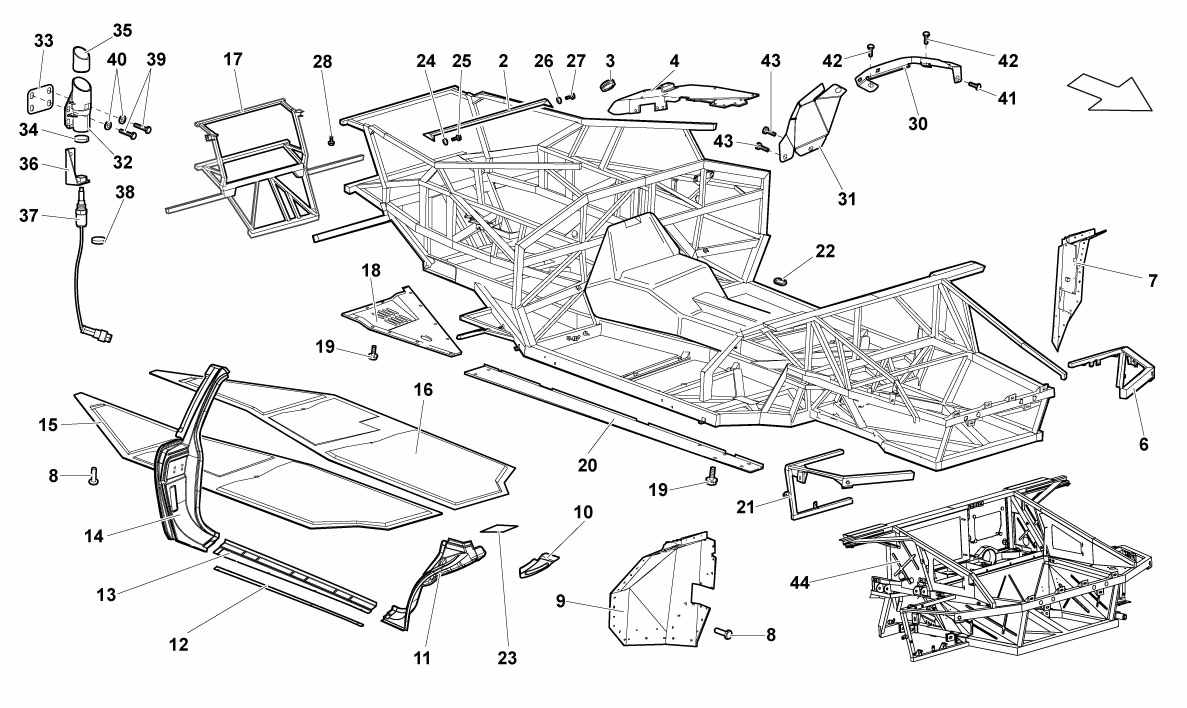

FRAME ELEMENTS

Go to Split View

FRAME ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 410813528 *Qty: 1 CROSS MEMBER $591.33
Location: 3 Prev | Next Part: 8931810 *Qty: 4 PLUG $1.93
Location: 4 Prev | Next Part: 41009138 *Qty: 1 LH SHEET $242.85
Location: 4 Prev | Next Part: 41009139 *Qty: 1 RH SHEET $242.85
Location: 6 Prev | Next Part: 41013497 *Qty: 1 LEFT FRONT FRAME $938.73
Location: 7 Prev | Next Part: 417809153 *Qty: 1 LEFT FRONT WHEELARCH- REAR PART $10,166.61
Location: 8 Prev | Next Part: 410821316 *Qty: 202 RIVET $5.13
Location: 8 Prev | Next Part: 410821316 *Qty: 66 RIVET $5.13
Location: 9 Prev | Next Part: 417809154 *Qty: 1 RIGHT FRONT WHEELARCH- REAR PART $10,166.61
Location: 10 Prev | Next Part: 410809439 *Qty: 1 RIGID UPPER CONNECTION $83.42
Location: 10 Prev | Next Part: 410809440 *Qty: 1 RIGID UPPER CONNECTION $83.42
Location: 11 Prev | Next Part: 410805047 *Qty: 1 FRONT LEFT COVERING $2,176.38
Location: 11 Prev | Next Part: 410805048 *Qty: 1 FRONT RIGHT COVERING $2,176.38
Location: 12 Prev | Next Part: 410831165 *Qty: 1 OUTER LOWER LEFT PROFILE $66.75
Location: 12 Prev | Next Part: 410831166 *Qty: 1 OUTER LOWER RIGHT PROFILE $79.77
Location: 13 Prev | Next Part: 410801255 *Qty: 1 CENTER LEFT COVERING $591.33
Location: 13 Prev | Next Part: 410801256 *Qty: 1 CENTER RIGHT COVERING $591.33
Location: 14 Prev | Next Part: 417809225 *Qty: 1 REAR LEFT COVERING $575.75
Location: 14 Prev | Next Part: 417809226 *Qty: 1 REAR RIGHT COVERING $575.75
Location: 15 Prev | Next Part: 410825219 *Qty: 1 BOARD $6,206.86
Location: 16 Prev | Next Part: 410825220 *Qty: 1 BOARD $6,206.86
Location: 17 Prev | Next Part: 41013499 *Qty: 1 REAR FRAME $3,129.10
Location: 18 Prev | Next Part: 410825215 *Qty: 1 LEFT REAR SIDE MEMBER BOTTOM $900.93
Location: 18 Prev | Next Part: 410825216 *Qty: 1 RIGHT REAR SIDE MEMBER BOTTOM $1,168.85
Location: 19 Prev | Next Part: WHT003069 *Qty: 11 SCREW M6X1X20 $3.08
Location: 20 Prev | Next Part: 410825211 *Qty: 1 LEFT FRONT SIDE MEMBER BOTTOM $1,082.93
Location: 20 Prev | Next Part: 410825210 *Qty: 1 RIGHT FRONT SIDE MEMBER BOTTOM $1,082.93
Location: 21 Prev | Next Part: 41013498 *Qty: 1 RIGHT FRONT FRAME $938.73
Location: 22 Prev | Next Part: 410821801 *Qty: 1 PLUG $29.20
Location: 23 Prev | Next Part: 410837267 *Qty: 2 LID $442.88
Location: 24 Prev | Next Part: 8400814 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: N90179103 *Qty: 2 WASHER 18X8-4X2-5 $0.90
Location: 27 Prev | Next Part: 8100854 *Qty: 2 SCREW $1.69
Location: 30 Prev | Next Part: 410810609 *Qty: 1 LH SHEET $85.24
Location: 30 Prev | Next Part: 410810610 *Qty: 1 RH SHEET $85.24
Location: 31 Prev | Next Part: 417803829 *Qty: 1 LH SHEET $88.48
Location: 31 Prev | Next Part: 417803830 *Qty: 1 RH SHEET $88.48
Location: 32 Prev | Next Part: 417871459 *Qty: 2 SUPPORT $338.79
Location: 33 Prev | Next Part: 417871279 *Qty: 2 SPACER $15.63
Location: 34 Prev | Next Part: 417813395 *Qty: 1 RUBBER BUFFER $1.34
Location: 35 Prev | Next Part: 417871180 *Qty: 1 BUSHING $65.08
Location: 36 Prev | Next Part: 417813763 *Qty: 1 SUPPORT $53.79
Location: 37 Prev | Next Part: 417959727 *Qty: 1 SWITCH $45.12
Location: 38 Prev | Next Part: 417813395A *Qty: 1 RUBBER BUFFER $0.91
Location: 39 Prev | Next Part: WHT001194 *Qty: 8 SCREW $0.90
Location: 40 Prev | Next Part: WHT001187 *Qty: 8 WASHER $0.90
Location: 41 Prev | Next Part: N90807401 *Qty: 2 SCREW $0.90
Location: 42 Prev | Next Part: N90847901 *Qty: 4 SCREW $0.90
Location: 43 Prev | Next Part: N90807401 *Qty: 4 SCREW $0.90
Location: 44 Prev | Next Part: 410898045 *Qty: 1 FRONT FRAME (SEE IDENTITY PLATE PROCEDURE) $19,556.88

* Quantity shown indicates the number of pieces used in the diagram.
