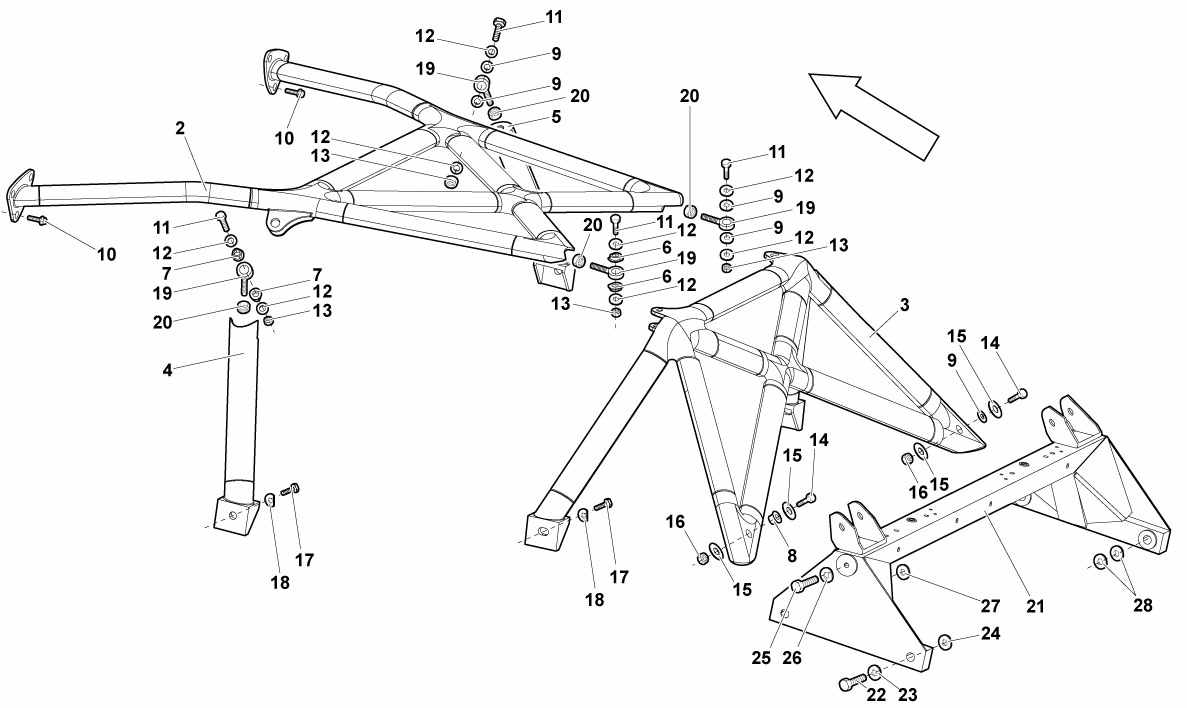

AUXILIARY FRAME

Go to Split View

AUXILIARY FRAME

Location Part # Quantity* Description Price Add To Cart
2 417825349A 1 STEEL FRAME UPPER ELEMENT Unavailable
2 417825349B 1 UPPER ELEMENT OF CARBON FRAME Unavailable
3 417825350B 1 REAR ELEMENT OF CARBON FRAME Unavailable
3 417825350A 1 STEEL FRAME LOWER ELEMENT Unavailable
4 417825431B 1 LEFT ARM OF CARBON FRAME Unavailable
4 417825431A 1 LEFT ARM OF STEEL FRAME Unavailable
5 417825432B 1 RIGHT ARM OF CARBON FRAME Unavailable
5 417825432A 1 RIGHT ARM OF STEEL FRAME Unavailable
6 417810250 4 BUSHING (FOR CARBON FRAME) Unavailable
7 417810249 4 BUSHING (FOR CARBON FRAME) Unavailable
8 417813455 4 BUSHING (FOR CARBON FRAME) Unavailable
9 41016930 4 0.5 MM SHIM (FOR STEEL FRAME) Unavailable
9 41016912 10 1.0 MM SHIM (FOR STEEL FRAME) Unavailable
9 41016911 10 1.5 MM SHIM (FOR STEEL FRAME) Unavailable
10 N10049303 6 SCREW Unavailable
11 41016910 4 SCREW Unavailable
12 41016912 8 WASHER Unavailable
13 41017007 4 NUT Unavailable
14 41016975 2 SCREW Unavailable
15 41016912 4 WASHER Unavailable
16 41017007 2 NUT Unavailable
17 N90166802 4 SCREW Unavailable
18 410810368 4 WASHER (FOR CARBON FRAME) Unavailable
19 417801931A 4 BALL JOINT Unavailable
20 8201035 4 NUT Unavailable
21 417813235 1 MOBILE REAR CROSS MEMBER Unavailable
23 8400814 4 WASHER Unavailable
24 8410820 4 WASHER Unavailable
25 8100854 2 SCREW Unavailable
26 8400814 2 WASHER Unavailable
27 8410820 2 WASHER Unavailable
28 400407749 24 0.5 MM SHIM Unavailable
28 400407739 24 1.0 MM SHIM Unavailable
28 400407740 24 1.5 MM SHIM Unavailable
28 400407742 24 2.0 MM SHIM Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
