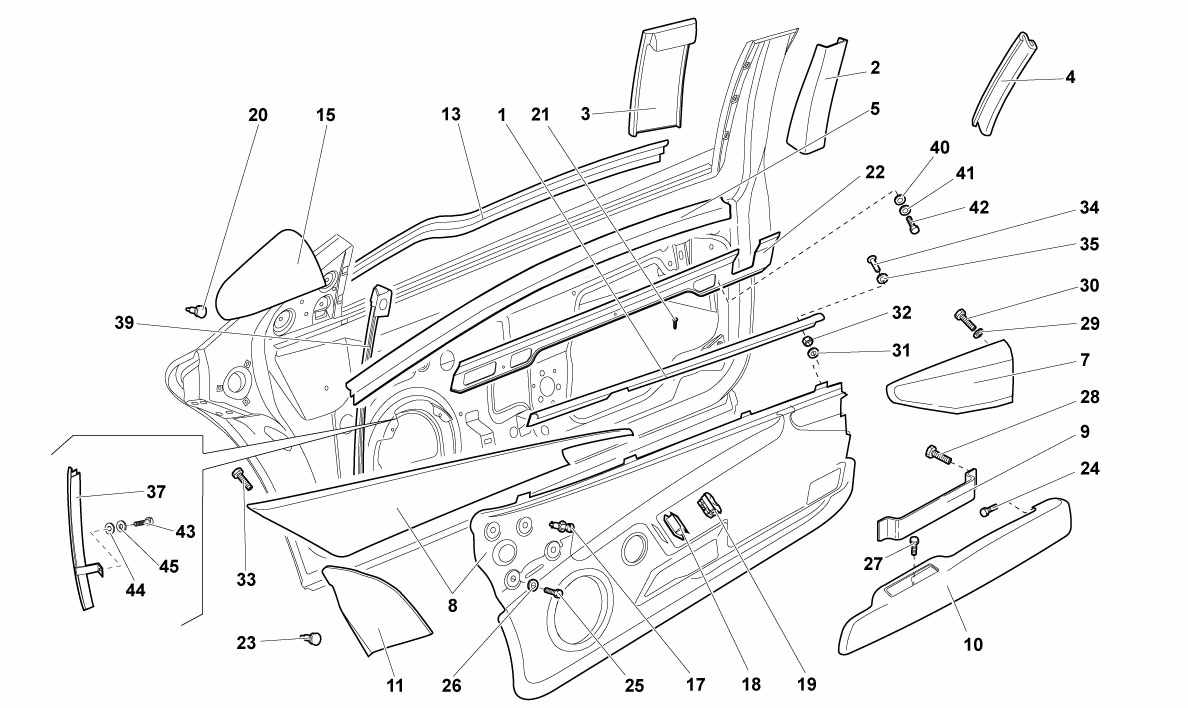

DOORS

Go to Split View

DOORS

Location Part # Quantity* Description Price Add To Cart
1 410868627 1 STOP Unavailable
1 410868628 1 STOP Unavailable
2 410868417 1 UPHOLSTERY ON INSIDE LEFT PILLAR (Supply VIN) Unavailable
2 410868418 1 UPHOLSTERY ON INSIDE RIGHT PILLAR (Supply VIN) Unavailable
3 417868336A 1 RIGHT PROFILE Unavailable
3 417868335A 1 LEFT PROFILE Unavailable
4 417837530 2 GASKET Unavailable
5 410868383 2 DOOR WINDOWS INTERIOR WATER DEFLUXION PROFILE Unavailable
7 410867409 1 LEFT DOOR UPHOLSTERY (Supply VIN) Unavailable
7 410867410 1 RIGHT DOOR UPHOLSTERY (Supply VIN) Unavailable
8 417867015A 1 LH DOOR PANEL ASSEMBLY (Supply VIN) Unavailable
8 417867014A 1 RH DOOR PANEL ASSEMBLY (Supply VIN) Unavailable
9 72013679 1 LH TRIM HANDLE (SUPPLY VIN) Unavailable
9 72013680 1 RH TRIM HANDLE (SUPPLY VIN) Unavailable
10 72013677 1 RIGHT HANDLE ASSEMBLY (Supply VIN) Unavailable
10 72013678 1 LEFT HANDLE ASSEMBLY (Supply VIN) Unavailable
11 410867117 1 LEFT PANEL FRONT COVER ASSEMBLY (Supply VIN) Unavailable
11 410867118 1 RIGHT PANEL FRONT COVER ASSEMBLY (Supply VIN) Unavailable
13 410868379 1 LEFT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE Unavailable
13 410868380 1 RIGHT DOOR WINDOW EXTERIOR WATER DEFLUXION PROFILE Unavailable
15 410857505A 1 LEFT DOOR TRIANGLE (Supply VIN) Unavailable
15 410857506A 1 RIGHT DOOR TRIANGLE (Supply VIN) Unavailable
17 400863119 8 PLUG Unavailable
18 410868487 2 DOOR SWITCH BRACKET Unavailable
19 410962107 2 DOOR LOCK/UNLOCK SWITCH Unavailable
20 4D0867299A 6 FASTENER Unavailable
21 WHT001190 4 SCREW M5 Unavailable
22 410837840 1 INNER WATER SCRAPER LEFT WINDOW GLASS Unavailable
22 410837839 1 INNER WATER SCRAPER RIGHT WINDOW GLASS Unavailable
23 400863119 8 PLUG Unavailable
24 WHT000757 2 SCREW M6X16 Unavailable
25 N10718801 2 SCREW M6X16 Unavailable
26 8400607 2 WASHER Unavailable
27 8700638 2 SCREW M6X16 Unavailable
28 WHT001190 6 SCREW M5 Unavailable
29 WHT001187 12 WASHER Unavailable
30 8700408 12 SCREW M4X10 Unavailable
31 WHT001187 8 WASHER Unavailable
32 8700406 8 NUT Unavailable
33 8700455 6 SCREW Unavailable
34 8953123 16 RIVET Unavailable
35 8400304 16 WASHER Unavailable
37 417837405 1 LH GUIDE Unavailable
37 417837406 1 RH GUIDE Unavailable
39 417837566 1 LH GASKET Unavailable
39 417837565 1 RH GASKET Unavailable
40 N10612001 8 WASHER Unavailable
41 WHT003364 8 WASHER Unavailable
44 N10612001 2 WASHER Unavailable
45 8410508 2 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
