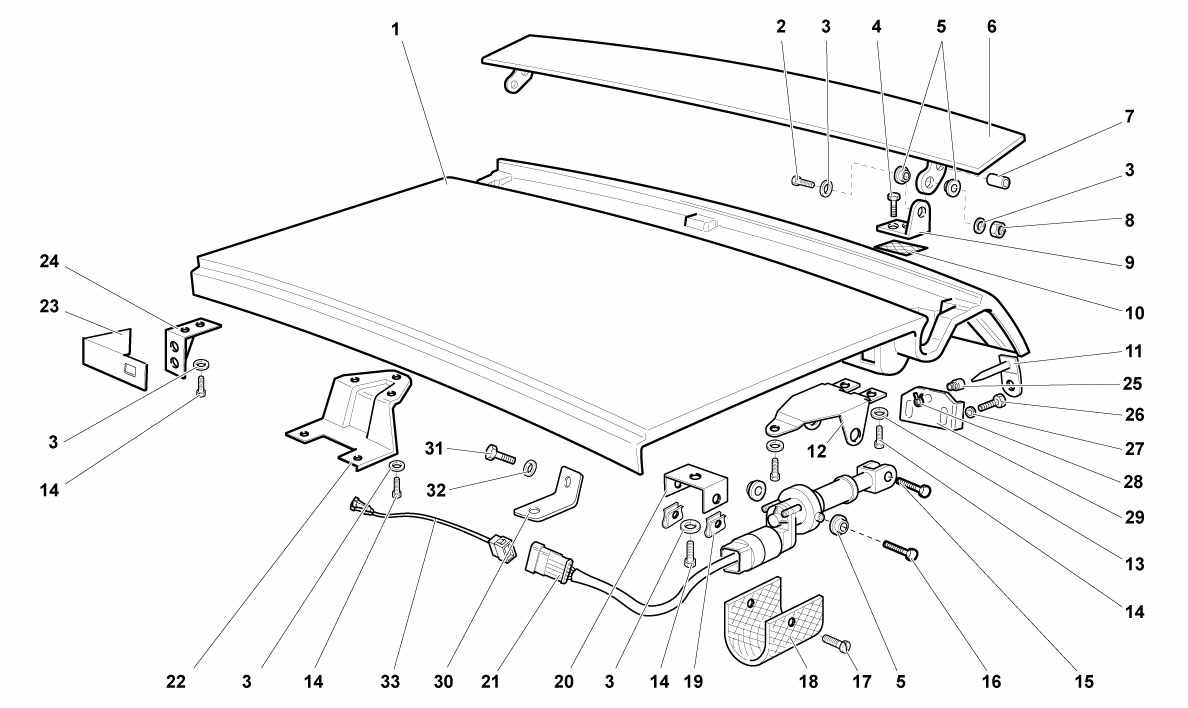

REAR HOOD AND SPOILER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410827027 *Qty: 1 ENGINE HOOD $10,992.35
Location: 2 Prev | Next Part: WHT003562 *Qty: 2 SCREW $5.24
Location: 3 Prev | Next Part: WHT000909 *Qty: 8 WASHER $0.90
Location: 4 Prev | Next Part: WHT003565 *Qty: 4 SCREW $5.82
Location: 5 Prev | Next Part: 410827547 *Qty: 4 BUSHING $5.85
Location: 6 Prev | Next Part: 410827948 *Qty: 1 SILENCER COVER HOOD REAR SPOILER $2,943.46
Location: 7 Prev | Next Part: 410813669 *Qty: 2 SPACER $15.46
Location: 8 Prev | Next Part: WHT003672 *Qty: 2 NUT $4.30
Location: 9 Prev | Next Part: 410813451 *Qty: 1 BRACKET $159.94
Location: 9 Prev | Next Part: 410813452 *Qty: 1 BRACKET $159.94
Location: 10 Prev | Next Part: 410827259 *Qty: 2 ADJUSTMENT SHIM $4.61
Location: 11 Prev | Next Part: 410827523 *Qty: 1 LH BRACKET $151.84
Location: 11 Prev | Next Part: 410827524 *Qty: 1 RH BRACKET $212.58
Location: 12 Prev | Next Part: 410814513 *Qty: 1 LH BRACKET $91.31
Location: 12 Prev | Next Part: 410814514 *Qty: 1 RH BRACKET $91.31
Location: 13 Prev | Next Part: 8400631 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: N90319404 *Qty: 4 SCREW $1.27
Location: 15 Prev | Next Part: 74009430 *Qty: 2 JOURNAL $23.53
Location: 16 Prev | Next Part: 410813876 *Qty: 4 SCREW $20.95
Location: 17 Prev | Next Part: N91049601 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 410827992 *Qty: 2 SPOILER MOTOR COVER ASSEMBLY $474.79
Location: 19 Prev | Next Part: 8220505 *Qty: 4 CLIP Call
Location: 20 Prev | Next Part: 410827393 *Qty: 2 BRACKET $4.08
Location: 21 Prev | Next Part: 410901119 *Qty: 2 CABLED MOTOR $617.29
Location: 22 Prev | Next Part: *Qty: 1 LOCK FASTENER CASE (VALID FOR A DIFFERENT MODEL) Call
Location: 23 Prev | Next Part: 410827199 *Qty: 1 LH BRACKET $60.83
Location: 23 Prev | Next Part: 410827200 *Qty: 1 RH BRACKET $60.83
Location: 24 Prev | Next Part: 410813535 *Qty: 1 LH BRACKET $12.25
Location: 24 Prev | Next Part: 410813536 *Qty: 1 RH BRACKET $12.25
Location: 25 Prev | Next Part: 410814940 *Qty: 2 BUSHING $33.07
Location: 26 Prev | Next Part: 8100618 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 8400607 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 8830131 *Qty: 2 CLAMP $5.58
Location: 29 Prev | Next Part: 410814449 *Qty: 2 BRACKET $202.46
Location: 30 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 31 Prev | Next Part: 8100913 *Qty: 2 WASHER $1.35
Location: 32 Prev | Next Part: WHT000909 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
