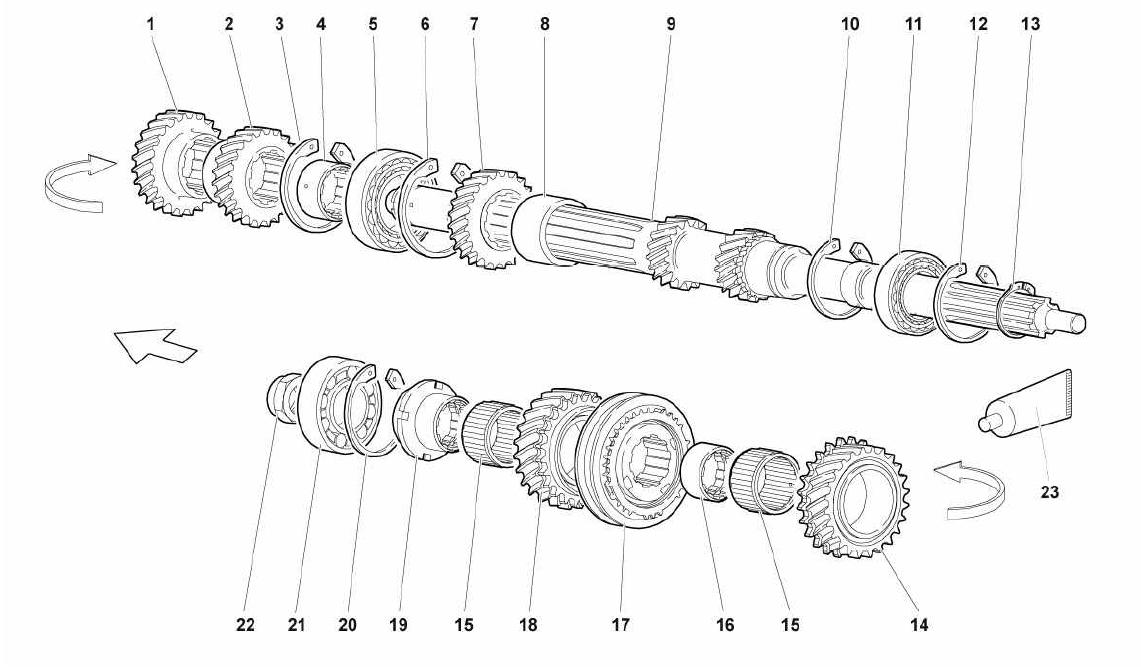

MAIN SHAFT

Go to Split View

MAIN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311149A *Qty: 1 FOURTH GEAR $2,333.64
Location: 2 Prev | Next Part: 86311131B *Qty: 1 THIRD GEAR $477.83
Location: 3 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $21.78
Location: 4 Prev | Next Part: 86311187B *Qty: 1 INNER RING $238.36
Location: 5 Prev | Next Part: 86301133 *Qty: 1 BEARING $81.55
Location: 6 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $21.78
Location: 7 Prev | Next Part: 86311261 *Qty: 1 SECOND GEAR $446.65
Location: 8 Prev | Next Part: 86311357A *Qty: 1 SPACER $140.29
Location: 9 Prev | Next Part: 86311101D *Qty: 1 MAIN SHAFT (To order together with the ref. 2 of the table 311.03.00) $2,465.33
Location: 10 Prev | Next Part: WHT002544 *Qty: 1 SEAL RING $19.61
Location: 11 Prev | Next Part: 86301897 *Qty: 1 BEARING $167.18
Location: 12 Prev | Next Part: WHT002544 *Qty: 1 SEAL RING $19.61
Location: 13 Prev | Next Part: N0123761 *Qty: 1 SEAL RING $2.15
Location: 14 Prev | Next Part: 86311361G *Qty: 1 FIFTH GEAR ASSEMBLY + CROWN GEAR $1,175.17
Location: 15 Prev | Next Part: 86311228A *Qty: 2 ROLLER CAGE $68.67
Location: 16 Prev | Next Part: 86301374A *Qty: 1 BUSHING $223.51
Location: 17 Prev | Next Part: 86311309B *Qty: 1 SYNCHRONIZING GEAR D.71/76 + CROWN GEAR $981.39
Location: 18 Prev | Next Part: 86311389F *Qty: 1 SIXTH GEAR ASSEMBLY WITH CROWN GEAR $1,175.17
Location: 19 Prev | Next Part: 86311693 *Qty: 1 INNER RING $326.97
Location: 20 Prev | Next Part: WHT003584 *Qty: 1 SEAL RING $21.78
Location: 21 Prev | Next Part: 86301845 *Qty: 1 BEARING $51.38
Location: 22 Prev | Next Part: 86301618 *Qty: 1 RING NUT $189.86
Location: 23 Prev | Next Part: 900000130 *Qty: 1 GREASE $40.66

* Quantity shown indicates the number of pieces used in the diagram.
