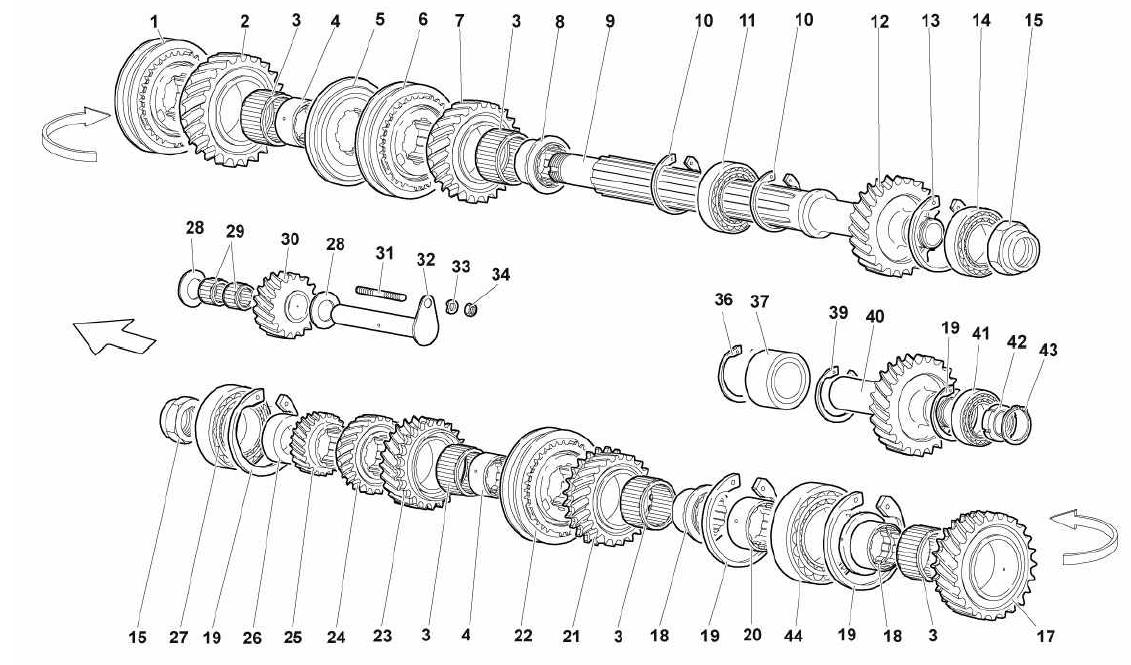

DRIVEN SHAFT

Go to Split View

DRIVEN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311244B *Qty: 1 SYNCHRONIZER T.C. D.100+CROWN GEAR $1,226.76
Location: 2 Prev | Next Part: 86311250F *Qty: 1 FIRST GEAR ASSEMBLY (Order linked to the ref. 9 tav. 311.02.00) $1,458.20
Location: 3 Prev | Next Part: 86311228A *Qty: 5 ROLLER CAGE $68.67
Location: 4 Prev | Next Part: 86301374A *Qty: 2 BUSHING $223.51
Location: 5 Prev | Next Part: 86311279A *Qty: 1 SHIM ADJUSTMENT $242.58
Location: 6 Prev | Next Part: 86311762C *Qty: 1 SYNCHRONIZING GEAR D.82 + CROWN GEAR $613.35
Location: 7 Prev | Next Part: 86311532F *Qty: 1 REVERSE GEAR ASSEMBLY + SYNCHRO $458.41
Location: 8 Prev | Next Part: 86311423B *Qty: 1 INNER RING $326.97
Location: 9 Prev | Next Part: 86311195F *Qty: 1 SHAFT Call
Location: 10 Prev | Next Part: WHT003585 *Qty: 2 SEAL RING $31.71
Location: 11 Prev | Next Part: 86301609 *Qty: 1 BEARING ?85 $123.74
Location: 12 Prev | Next Part: 86311348B *Qty: 1 GEAR $2,600.35
Location: 13 Prev | Next Part: WHT003573 *Qty: 1 RETAINING RING $1.82
Location: 14 Prev | Next Part: 86301897 *Qty: 1 BEARING $167.18
Location: 15 Prev | Next Part: 86301618 *Qty: 2 RING NUT $189.86
Location: 17 Prev | Next Part: 86311270E *Qty: 1 2 GEAR ASSEMBLY $1,268.19
Location: 18 Prev | Next Part: 86311533A *Qty: 2 INNER RING $261.26
Location: 19 Prev | Next Part: WHT003584 *Qty: 4 SEAL RING $21.78
Location: 20 Prev | Next Part: 86311187B *Qty: 1 INNER RING $238.36
Location: 21 Prev | Next Part: 86311129B *Qty: 1 THIRD GEAR ASSEMBLY $1,185.17
Location: 22 Prev | Next Part: 86311309B *Qty: 1 SYNCHRONIZING GEAR D.71/76 + CROWN GEAR $981.39
Location: 23 Prev | Next Part: 86311145C *Qty: 1 FOURTH GEAR ASSEMBLY $1,185.17
Location: 24 Prev | Next Part: 86311153 *Qty: 1 FIFTH GEAR $2,583.68
Location: 25 Prev | Next Part: 86311165 *Qty: 1 SIXTH GEAR $2,583.68
Location: 26 Prev | Next Part: 86311876C *Qty: 1 SPACER $130.26
Location: 27 Prev | Next Part: 86301845 *Qty: 1 BEARING $51.38
Location: 28 Prev | Next Part: 86311388 *Qty: 2 SHIM ADJUSTMENT $25.39
Location: 30 Prev | Next Part: 86311531C *Qty: 1 REVERSE IDLE GEAR Call
Location: 31 Prev | Next Part: WHT003165 *Qty: 1 STUD BOLT $1.33
Location: 32 Prev | Next Part: 86311509 *Qty: 1 REVERS IDLE GEAR SHAFT $248.50
Location: 33 Prev | Next Part: WHT001197A *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: WHT002953 *Qty: 1 NUT M6 $2.40
Location: 36 Prev | Next Part: WHT003587 *Qty: 1 SEAL RING $9.28
Location: 37 Prev | Next Part: 86311440 *Qty: 1 BEARING $121.62
Location: 39 Prev | Next Part: WHT003582 *Qty: 1 RETAINING RING $14.53
Location: 40 Prev | Next Part: 86311834A *Qty: 1 GEAR $791.94
Location: 41 Prev | Next Part: 86311439 *Qty: 1 BEARING $44.94
Location: 42 Prev | Next Part: 86311667 *Qty: 1 RING NUT $93.99
Location: 43 Prev | Next Part: WHT003580 *Qty: 1 SEAL RING $10.34
Location: 44 Prev | Next Part: 86301133 *Qty: 1 BEARING ?80 $81.55

* Quantity shown indicates the number of pieces used in the diagram.
