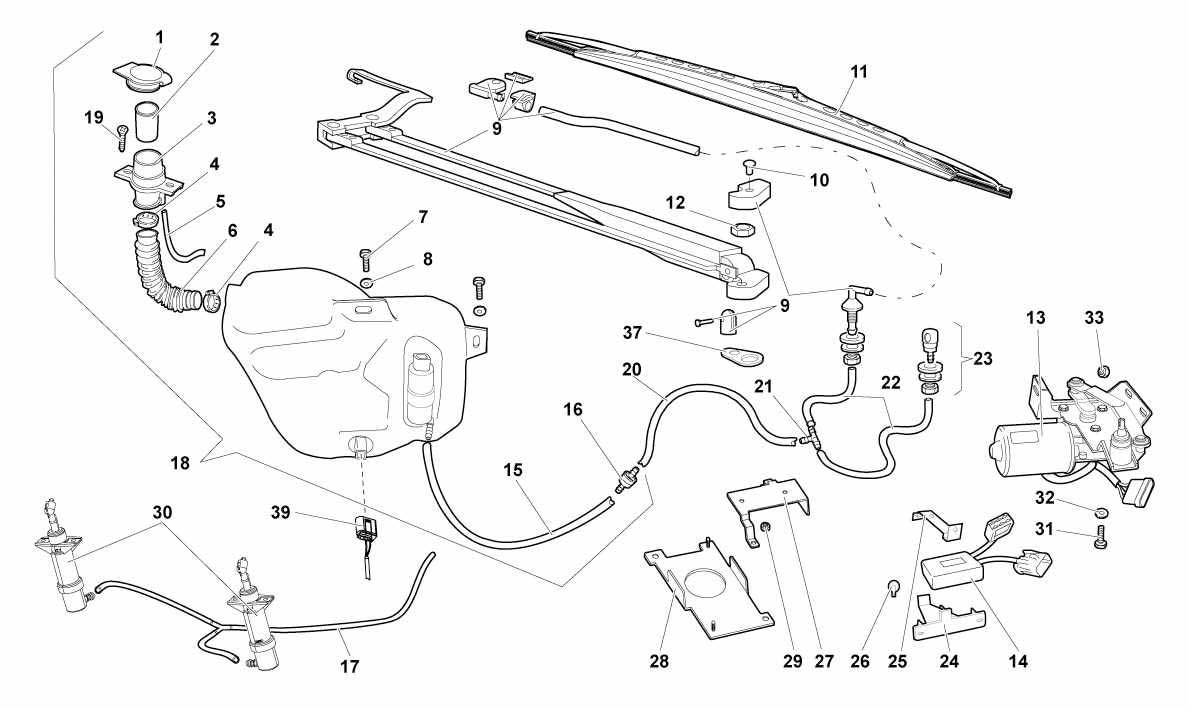

WINDSHIELD WIPER

Go to Split View

WINDSHIELD WIPER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400955277 *Qty: 1 PLUG $5.21
Location: 2 Prev | Next Part: 71009515 *Qty: 1 FILTER $3.00
Location: 3 Prev | Next Part: 71009421 *Qty: 1 HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER $14.94
Location: 4 Prev | Next Part: 71009601 *Qty: 2 CLAMP $8.97
Location: 5 Prev | Next Part: 71009602 *Qty: 1 BREATHER PIPE $1.84
Location: 6 Prev | Next Part: 71009600 *Qty: 1 PIPE $43.64
Location: 7 Prev | Next Part: N10718801 *Qty: 2 SCREW M6X16 $0.90
Location: 8 Prev | Next Part: 8400607 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 418955407C *Qty: 1 WIPER ARM ASSEMBLY $991.90
Location: 10 Prev | Next Part: WHT003302 *Qty: 1 SCREW M4X6 $1.24
Location: 11 Prev | Next Part: 8Z1955425C *Qty: 1 WINDSCREEN WIPER $30.75
Location: 12 Prev | Next Part: WHT003571 *Qty: 1 NUT M8 $19.25
Location: 13 Prev | Next Part: 71013998 *Qty: 1 LINKAGE GEARMOTOR ASSEMBLY $712.61
Location: 14 Prev | Next Part: 410906015 *Qty: 1 WINDSCREEN WIPER TIMER Call
Location: 15 Prev | Next Part: 71009603 *Qty: 1 PIPE $9.11
Location: 16 Prev | Next Part: 113955975C *Qty: 1 CHECK VALVE $9.41
Location: 17 Prev | Next Part: 410955175 *Qty: 1 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS $108.86
Location: 18 Prev | Next Part: 400955448 *Qty: 1 WASHER RESERVOIR ASSEMBLY $208.35
Location: 19 Prev | Next Part: WHT003563 *Qty: 2 SCREW M6X14 $1.91
Location: 20 Prev | Next Part: 418955962 *Qty: 1 PIPE $2.74
Location: 21 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $0.98
Location: 22 Prev | Next Part: 410955963 *Qty: 2 PIPE $15.65
Location: 23 Prev | Next Part: 9420207 *Qty: 1 NOZZLE $6.38
Location: 24 Prev | Next Part: 410955776 *Qty: 1 BRACKET $71.38
Location: 25 Prev | Next Part: 410955675 *Qty: 1 BRACKET $51.17
Location: 26 Prev | Next Part: N90685101 *Qty: 1 SUPPORT $3.06
Location: 27 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 NUT M6 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 0 HEADLIGHT WASHER ASSEMBLY (SEE TABLE 63.01.00) Call
Location: 32 Prev | Next Part: 8400607 *Qty: 3 WASHER $0.90
Location: 33 Prev | Next Part: 8200614 *Qty: 2 NUT M6 $0.90
Location: 37 Prev | Next Part: 413819687 *Qty: 1 COVER $9.15
Location: 39 Prev | Next Part: 7M0973202 *Qty: 1 CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1) $10.63

* Quantity shown indicates the number of pieces used in the diagram.
